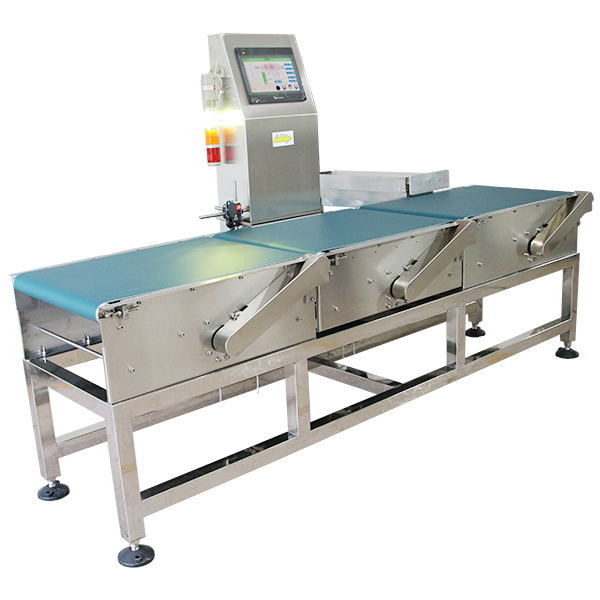

Precision Stainless Still Conveyor Weight Checker For Weighting And Sorting Foods

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VC-40

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

dynamic checkweigher

,

checkweigher machine

Name:
Check Weigher Machine
Belt Size:
Customized
Accuracy:
1-1.5g
Belt Speed:
Customized
Wrarranty:
2 Years
Reject System:
Automatic Stop, Air Blast Or Penumatic Push Rod
Display Type:
LCD Display
Machine Size:
Customized
Weight Range:
10-3000g, Accept Customize
Mini Scale:
0.1g
Power Supply:
220V / 50HZ Or Customized
Feature:
Metal Detector Check Weighter
Name:
Check Weigher Machine
Belt Size:
Customized
Accuracy:
1-1.5g
Belt Speed:
Customized
Wrarranty:
2 Years
Reject System:
Automatic Stop, Air Blast Or Penumatic Push Rod
Display Type:
LCD Display
Machine Size:
Customized
Weight Range:
10-3000g, Accept Customize
Mini Scale:
0.1g
Power Supply:
220V / 50HZ Or Customized
Feature:
Metal Detector Check Weighter
Precision Stainless Still Conveyor Weight Checker For Weighting And Sorting Foods


Precision Stainless Still Conveyor Weight Checker For Weighting And Sorting Foods

Brief introduction of check weigher:

Metal detector check weigher also named Check weigher, check weighers, check weigher machine, weight sorting machine, weight sort machine, online check weigher, online weight sorting machine, weight checker, weight pick, conveyor check weigher and so on.


Ensures the quality of your production. The Vfinder Checkweighers offer the best  choice. The modular design makes the scale application flexible and can be widely used. The weight checkers are available with high quality metal detectors.


Key features:

  • Strong stainless steel structure; Water proof design;
  • It is easy to operate with liquid crystal and tangibly screen,
  • Touch screen;friendly operation interface;
  • Based on advanced digital weighing unit;
  • Belt disassembling without tools, which is easier to clean

  • Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod

  • Stable sensitivity and no need to do calibration often.

  • Easy to replace: can store a variety of formulations, convenient for the replacement of product specifications;


Scope of application :
Our Conveyor Weight Checker are suitable for testing the weight of a small single item whether is qualified or not, and it is widely used in electronic, food, pharmaceutical, beverage, health-care, chemical industry etc. F or example, it can be used in food industry to check the weight of flavour, cake, hams, instant noodles, frozen food, food additives, preservative etc.

About  VC series:
The Dynamic VC and VC series are built using welded Stainless Steel tube construction, created a very ridged and long lasting frame that will withstand even the most abusive environments. Built to handle virtually every product in any environment, only simple modifications are required to change bed widths and lengths. The VC series is designed for very heavy packages and therefore is constructed of steel channel.


Parameter details :


Model Name VC-10 VC-15 VC-22 VC-30 VC-40 VC-25(two belt) VC-100
Weight range (g) 3-100 3-300 10-1200 30-3000 50-1000 50g-25kg 1kg-100kg
Mini weight accuracy (g) ±0.1 ±0.3 ±0.5 ±1 ±0.5 ±5g ±10g
Mini screen value (g) 0.01 0.1 0.1 0.1 0.1 0.5 1g
Max weigh speed (Bags /Minute ) 20 330 210 180 180 50 20
Belt speed 0 16-118 13-96 13-96 13-96 13-78 3-15
(Meter/minute )
Suitable product length (mm) - 60-180mm 60-300mm 60-420mm 60-500mm 60-420mm -
Suitable product width (mm) - 30-150mm 30-200mm 30-250mm 30-400mm 30-380mm -
Suitable product height (mm) - 10-130mm 10-200mm 10-330mm 10-330mm 10-430mm -
Weigh zone size (mm L*W) - 270*110 400*220 500*300 500*400 800*600 1000*800
Note Non-standard (without belt) High accuracy Small common model Customized model Customized model Common model for Box Roller end belt
Reject device optional Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )
