Home > products > Food Metal Detector > Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants

Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VPF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

non ferrous metal detector

,

metal detectors for food industry

Diameter:
25mm , 30 Mm , 50 Mm , 60 Mm
Power Supply:
110-220V 50/60Hz
Reject Method:
Alarm And Stop
Work Principle:
Magnet Induction
H.S CODE:
8543709100
Weight:
120 Kgs
Application:
Food Processing Inspection
Work Height:
800 Mm
Diameter:
25mm , 30 Mm , 50 Mm , 60 Mm
Power Supply:
110-220V 50/60Hz
Reject Method:
Alarm And Stop
Work Principle:
Magnet Induction
H.S CODE:
8543709100
Weight:
120 Kgs
Application:
Food Processing Inspection
Work Height:
800 Mm
Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants



Pipeline Metal Detector for All Types of Metal Contaminants , Liquid Metal Detection


Application:

  • Beverage industry
  • Chili sauce, salad dressing industry



Function



Our Liquid pipeline Metal Separator’s equipment technology is from German KOCH.

It comes from the principle of electromagnetic induction. It is a high precision detection equipment for magnetic and nonmagnetic metal and a metal separator equipment. Can detect materials including iron (magnetic) and non-iron(nonmagnetic: copper, aluminum, tin, Stainless Steel, etc.) If ferromagnetic metals into detection area will affect regional distribution of magnetic line, also change the magnetic field distribution. Non ferromagnetic metals into detection area will produce eddy current effect, also will change the magnetic field distribution. Normally, Metal Detector combines with two parts, induction coil and automatic removing device, in those, core part is detector.

3)Diameter 25 Technical Parameter (high precise)

Series of detection sensitivity: Fe≥φ 0.6mm Sus≥φ 1.0 mm Ca≥φ 1.0 mm

Main metal detector dimension( except hopper and support)



Equipment shell material: A3 steel plate painting coated or #304 stainless steel plate

Total power

Power cable:3m international triangle plug

Working pressure

Environment temperature

Detection material temperature

Contact part with raw material: Nylon, carbon steel, stainless steel, Aluminum

Compressed air 8mm international standard pipes connection

Gas: 04.L/separator action
Total Weight

Detection precise: volume metal particle (normal metal),can adjust according to different situation

Action Time: 0.5S to 5 S, longer time the more waste discharge

Warranty:

  1. 12 month labor and parts
  2. Full life technical support
  3. Packing and shipment
  4. Full machine takes of two layer package
  5. Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
  6. Eng package takes of Strong ploy wooden case that meet different country import standard


Installation and use:

When you takes of the package .up the rubber base ,use wheel move it to your work place.
Then down the rubber base and fasten it..keep all the base in a horizontal
Then running the machine few hours before use ,No need complex installation .
The user guide will make in book and Videos for customer reference .


Typical application:

Goods entry control in the food industry: inspection of bagged goods on a conveyor belt ! Goods-out control in the food industry: inspection of packed foods (meat, sausages, cheese, ice-cream, chocolate, confectionery, ginger bread, crisps, sweets . . . ) on a conveyor belt or on a slide ! Goods-out control in the pharmaceutical industry: inspection of packed pills and tablets on a slide ! Quality control in the plastics industry: inspection of suction manifolds on a conveyor belt for zinc-wismuth residues.


How do metal detection systems work?


According to Quality Assurance & Food Safety Magazine, all general purpose nonferrous metal detectors work in the same way:
Three coils are wound exactly parallel on a non-metallic frame.
The center coil is connected to a high-frequency radio transmitter.
Two transmission-receiving coils sit on either side of the center coil.
Because the two outer coils are identical and the exact same distance from the center, they receive the same signal and produce an identical, balanced output voltage.
When a particle of metal passes through the system:
The high-frequency field is disturbed beneath one coil, changing the voltage and disrupting the balance.
The output fluxes from zero, producing a signal alerting the system to the presence of metal.
Depending on the specifics of the system, a rejection mechanism is generally activated, with the ideal result of removal of 100 percent of the metal and a minimum amount of salable product.




Details
Tunnel size

40*12cm 40*15cm 40*20cm 50*15cm 50*20cm 50*25cm 50*30cm
Sensitivity Fe(mm) 0.8 1.0 1.2 1.0 1.2 1.5 2.0
Sensitivity SUS(mm) 1.5 2.0 2.5 2.0 2.5 3.0 3.5
Detection height 120 150 200 150 200 250 300
Detection width 400 500
Belt speed


10-35 meters per minute adjustable

Alarm method Light and sound and optional reject



Metal detector for food  Machines picture Application

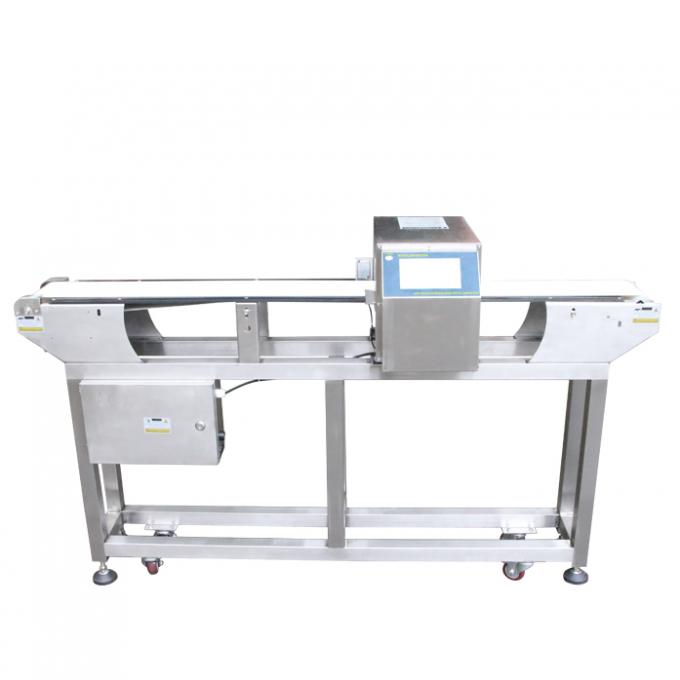

VTF Touch screen metal detector Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants 0
  • Food industry
  • Medical industry
  • Food additives
  • Baby products
  • Health products
  • Other industry that need reject and detect metals
VCF chain link metal detector Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants 1
  • Seafood products
  • Aquatic products
  • Salt Industrial
  • Sugar Industrial
  • Moist product
VIF Inclined metal detector Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants 2
  • Pharmaceutical Industrial

  • Quick-frozen food

  • Dehydrated vegetables

  • Dough, pizza products

  • Meat products

  • Cooked food

VDF Metal detector Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants 3
  • Beverage industry
  • Chili sauce, salad dressing industry
VCM Combined metal detector and Check weigher Liquid Pipeline Metal Detector Machine For All Types Of Metal Contaminants 4
  • Metal detectors and weighing machines are required by factory at the same time.
  • Food Industrial
  • Toy Industrial,
  • Medicine Industrial







FAQ

Q Where are metal detectors installed in the food production process?

A When used for machinery protection, the metal detector is installed directly before the machine to be protected. If, as in most cases in the food industry, consumer protection is the goal, several inspection points are useful. An inspection of raw material has the advantage that metal particles are separated before they are broken up into smaller pieces which might be harder to detect. Inspections at critical control points (HACCPs) during the production process are recommended to notice machinery failures (such as broken blades) in time. Metall Detector Food

Consequently, food products in their final stage after packaging are inspected once again with a metal detector (or an X-ray system) to fully exclude contamination.

For optimal product protection an inspection of raw materials, of several critical control points, and a final inspection of the finished product are recommended.

Q Why are metal detectors used in the food industry?

A

Food Metal detectors for food primarily are used for the purpose of consumer protection. Despite maximum care metallic contaminations of food products during the production process cannot be fully excluded. Metal particles that enter the product during the production process or already are contained in the raw material may cause serious injuries of consumers. The consequences for the producing company are numerous and serious and include compensation claims and expensive recalls.
Even bigger and longer-lasting damage is caused by the negative brand image and the loss of consumer trust caused by impure food products.

Metal detectors for food provide effective protection against ferrous and non-ferrous metals (aluminium, stainless steel, etc.). They can be installed in every step of the production process and can be used for many different applications, e.g. for the inspection of bread and bakery products, meat and sausage product, fruit, vegetables, dairy products, spices, sugar, etc.

In addition to consumer protection, metal detectors also are used to protect machinery. Even smallest metal particles can lead to machinery failure. Expensive repairs and production downtimes are the consequences, often followed by revenue decreases.

Q Food metal detector regular used fileds

A

Food & Beverage Manufacturers
Food & Beverage Processors
Food & Beverage Distributors
Food & Beverage Storage Facilities
Food & Beverage Importers
Restaurants


Q IFS Standard



A IFS Food 6.1
The IFS Food Standard is a GFSI (Global Food Safety Initiative) recognized standard for auditing food manufacturers. The focus is on food safety and the quality of processes and products. It concerns food processing companies and companies that pack loose food products.

IFS Food applies when products are “processed” or when there is a hazard for product contamination during primary packing. The Standard is important for all food manufacturers, especially for those producing private labels, as it contains many requirements related to the compliance with customer specifications.

The Standard supports the production and marketing departments in their efforts for brand safety and quality. IFS Food has been developed with full and active involvement of certification bodies, retailers, food industry and food service companies.

Scope
The IFS Food Standard is used to audit food manufacturers regarding food safety and quality of processes and products. The list of requirements is organized in the following topics:

Senior management responsibility
Quality and food safety management system
Resource management
Planning and production process
Measurements, analysis, improvements
Food Defense
Objectives
To establish a common Standard with a uniform evaluation system
To work with accredited certification bodies and qualified auditors approved for IFS Food,
To ensure comparability and transparency throughout the entire supply chain,
To reduce costs and time for both manufacturers and retailers.
Benefits
IFS Food certification can offer a number of key benefits to companies striving for excellence in quality, food safety and customer satisfaction, and seeking a competitive advantage in their market place.

Production department benefits:

Improved understanding between management and staff relating to good practices, standards and procedures,
Monitoring of compliance with food regulations,
More effective use of resources,
Reduction in the need for customer audits,
Independent third party audits,
Higher flexibility through individual implementation due to a risk based approach.
Marketing department benefits:

Q Are metal detectors essential in a food business?

A

Any type of metal contamination in your product is definitely a food safety issue. I am sure we can all agree on that. I have pretty strong views around this subject mainly because I have observed so many metal detectors fail to detect metal imbeded in the product when tested during a certification audit. Any good metal control program first starts with prevention rather than detection. You need to stop the metal contamination from happening in the first place. My first step would be to implement a suitable preventative maintenance program and foreign matter prevention program. Both programs should have adequate monitoring to ensure that the programs are being successfully implemented. To strengthen your program you can then look at detection and removal equipment including magnets, metal detectors, sieves, visual, xray etc.
