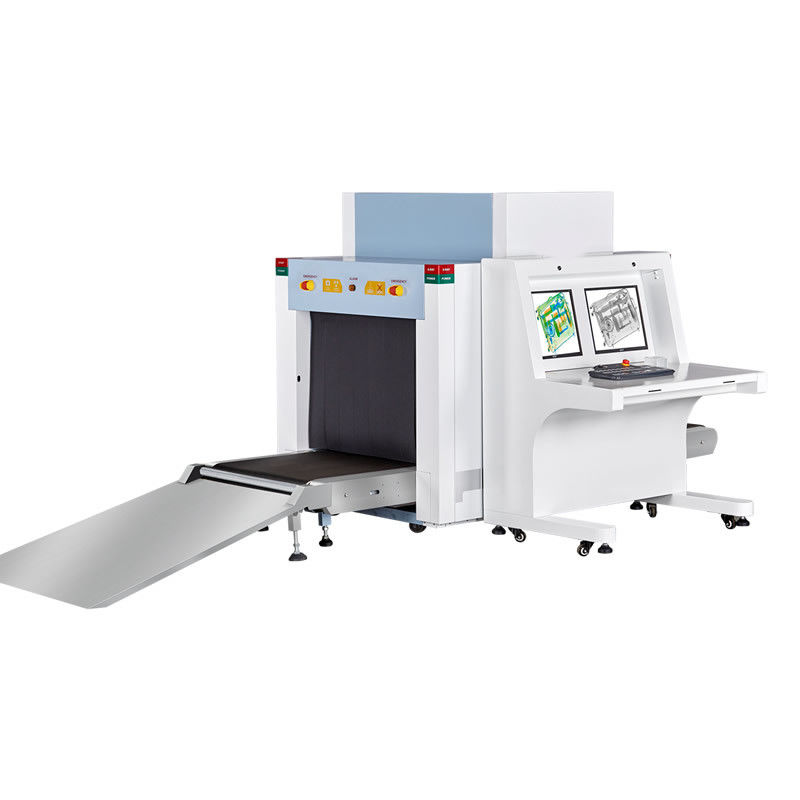

Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System

China Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System supplier
Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System supplier Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System supplier

Large Image :  Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System

Product Details:

Place of Origin: China
Brand Name: VFINDER
Certification: CE, ISO9001
Model Number: VX-8065

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 5-7 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Conveying X-ray Detector Load Ability: 200kg
Conveyor Speed: 0.22 M/s Tunnel Size: 800(W)×650(H)mm
Penetration: ≥40 Mm Steel Plate NW / GW: 280 Kg / 350 Kg
Conveyor Height From The Ground: 700mm Resolution: ∮0.1 Mm
Noise: Safety To The ISO1600



Automatic Alarm Airport X-Ray Baggage Security Scanner Machines X Ray Baggage Scanning Inspection





Product highlights



* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter



Advantages



1. With equipment to save electricity

2. Famous brand spare parts:

(1). Spellman brand generator from the USA

(2). Hamamatsu brand detector from Japan

(3). Interroll brand Roller from German

3. Protective cover on lead curtain to avoid lead pollution

4. Sound and light alarm

5. Local network supported

Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System

Unique System

  • The embedded operating system
  • Multi-core ARM, simple structure
  • Low power consumption
  • Energy saving and environmetal protection
  • Real-time status monitoring function



Features



● Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality

Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.

Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)

A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.

Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.

Dynamic screen switching: when it is stationary screen it can be switched and when it is dynamic it also can switch freely.

Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System



Product Certification



● Strict quality internal control , double-check principles of engineering and production

● Safeguard measures for machine parts

● Through the testing by Ministry of public security and police use electronic product quality testing center

● Through the EU CE certification

● Through the ISO9001 quality management system certification

● Through the ISO14001 environmental management system certification

● Through the GB/T28001 occupation health and safety management system certification

● Through thes provincial Environmental Protection Department of radiation safety certification

● Through the provincial occupation health inspection center detection of radiation

● Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate

● Double soft certification



X-ray Generator



Ray Beam direction Top-illuminated
Tube current 0.4~1.25mA(adjustable)
Tube voltage 100~160 kV(adjustable)
Ray beam divergence angle 90°
The cooling / work cycle Sealed oil cooling / 100%




Luggage Scan Airport X Ray Machine For Inspection , Big Tunnel X Ray Inspection System

Image Processing System





X-ray sensor

L-shaped photodiode array detector (single energy), 12bit depth

Monitor

high resolution 19 inch LCD BenQ monitor

Color image display

24-bit true color display

Edge Enhancement

the outline of objects will be more clear

Super Image Enhancement

the details of the image are more clear

High penetration display

improve image contrast in bright areas, so the easy penetrating area will be more clear

Low penetration display

improve image contrast in dark areas, so the difficult penetrating area will be more clear

Magnifier local

amplification function

Brighten / darken

Increase / decrease image brightness

Image pull back / front pull

Show the top 20 images, and the current image can be any image processing

Image Restoration

Restored to its original state

Image Storage

Real-time save any image, any image can be processed arbitrarily ,continuous work to save

By size

500(W)×300(H)mm

Conveyor speed

Hour detection 600ps / h toy shoes products 0.22m/s

Load

150 kg

Resolution

∮0.0787 mm

Conveyor height from the ground

700mm

Penetration

≥8mm

Monitor

BenQ 19in LCD monitor

Storage

500G hard drive to save any image in real time, can store more than 100,000
and can make any image processing, and continuous work to save.

Noise

≤55dB(A)

Operating system

windowsXP

Single check dose

One-time inspection of the X-ray light source irradiation amount ≤ 1.22uGy

Leaking radiation dose rate

Away from any device outer surface of 5cm, the ray irradiation leak rate should
be ≤ 0.12uGy / h

Dimensions

(L) 1750mm (W)730mm(H)1200mm

NW / GW

280 kg / 350 kg





Drugs and explosive function



The technology we use for x-ray machine detecting explosive and drug is according to:



Explosives and drugs equivalent atomic number Zeff among 7.8.9



Equivalent atomic number Zeff substance:



7 = water, plastic explosive

8 = impure drug and explosive

9 = pure drug



Our machine can alarm for the suspicious objects similar to the Zeff substance.

For the scanning image, we use red line selection the meterial can't penetrate, yellow line selection the explosive, green line selection the drug.

And the same time, the alarm LED light on the entrance of scanner will on lighting with sound.





Applications



Designed for small mail parcel security check, primarily serves the post Express Logistics Center of small parcel safety testing centers
