Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VW-CO
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
External Dimensions: |
W 41" (1.04m) X H 92" (2.34m) X D 22.8" (0.58 M) |
Vertical Channel Size: |
W28" (0.706m) X H 79" (2.0m) X D 13.8" (0.35 M) |
Net Weight: |
40KG |
Gross Weight: |
42KG |
Working Voltage: |
AC100V～240V 50／60Hz |
Power: |
60W |
External Dimensions: |
W 41" (1.04m) X H 92" (2.34m) X D 22.8" (0.58 M) |
Vertical Channel Size: |
W28" (0.706m) X H 79" (2.0m) X D 13.8" (0.35 M) |
Net Weight: |
40KG |
Gross Weight: |
42KG |
Working Voltage: |
AC100V～240V 50／60Hz |
Power: |
60W |

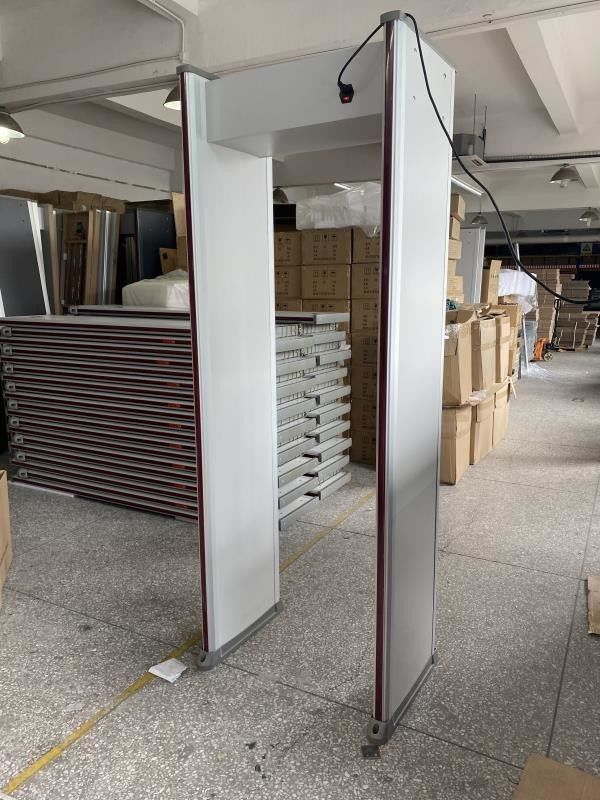

High-precision human body temperature measurement walk through metal detector
Feature
Long-distance high-precision human temperature measurement and security door, a safety detection door with a combination of human temperature detection and metal detection. The door head is equipped with a high-precision body temperature detection probe. The detection angle can be moved up and down. It can measure the surface temperature of the human forehead. Then, the actual body temperature of the human body is obtained according to the relationship between the temperature of the human forehead and the body temperature. The optical component of the detector collects the energy emitted and reflected from the forehead to the sensor. This information is converted into a temperature reading by the electronic component and displayed on the display panel. When the temperature reading exceeds the high temperature alarm value, the instrument will issue an alarm sound. The temperature can be set at will. It has the characteristics of waterproof, fireproof and anticorrosive. It is suitable for the safety inspection of dangerous goods such as control knives and guns, etc. It is widely used in airports, stations, immigration checkpoints, and other densely populated places. Is an effective means to prevent the spread of the epidemic.
Advantage:
| Infrared temperature measurement function | Description |
| Sensor specifications | Imported medical grade high precision infrared temperature probe |
| Sensor temperature measurement distance | The accuracy is 0.1 degrees at a distance of 10cm or 50cm between the personnel and the detection head. |
| Thermometer installation | Embedded |
| Temperature measurement method | Contactless |
| Sensor type | High-precision infrared sensor |
| Temperature measurement range | -70~382.2 ℃ |
| Check time | Less than 1 second |
| Temperature measurement accuracy | Less than 0.1 ℃ |
| Display method | LED screen display |
| Setting | The temperature range can be set and adjusted according to your needs. If it exceeds the set value, it will alarm. |
| Alarm Output | Alarm threshold can be set, alarm signal can be output, and illegal break-in alarm function |
| Statistics function | With statistics function can record the number of test and abnormal number |
| Alarm method | Sound and light alarm for high temperature, sound and light alarm for illegal break-in |
| Sound and light alarm at the same time | When the measured personnel temperature is higher than the set temperature value, the security door will emit an alarm sound, and at the same time, the temperature display at the alarm position can be seen on the panel. |
| Networking and other functions | Can be customized |
| Technical Parameters | description |
| Operating temperature | -20 ℃ + 55 ℃ |
| power supply | AC220V f: 50HZ |
| Total Weight | About 85kg |
| Power consumption | P≤ <35w |
| Emission frequency | Multiple operating frequencies to choose from |
| Passing rate | More than 60 passengers / minute |
| Standards compliant | GB15210-2003 |
| Channel size | 1985mm (height) × 700mm (width) × 580mm (depth) can be customized |
| Dimensions | 2220mm (height) × 833mm (width) × 580mm (depth) can be customized |
| Metal detection function | description |
| Multi-zone detection mode | Six overlapping metal detection zones, using current digital pulse technology, interactive transmission and reception, are divided into six protection zones, which can accurately determine the specific location of suspicious objects in each zones. (12 detection zones, 18 detection zones can be customized) ; |
| Auto FM function | It has the function of automatically adjusting the operating frequency when it is turned on, and automatically recognizing the interference frequency of the surrounding environment to make corresponding adjustments, which effectively reduces the difficulty of equipment adjustment; the composite circuit design, the signal frequency can be freely adjusted, and advanced scattering infrared scanning is used to quickly capture the inductive signal and be connected to the network Install multiple metal detector to work together without interference. |
| Quick settings for built-in applications | Built-in quick setting of application places, different ringtones can be set, which is convenient for users to set quickly; |
| Built-in system self-test | With automatic fault diagnosis at startup |
| Infrared counting | It has the function of counting the number of people entering and leaving, and can accurately determine the rationality of each entrance and exit. |
| Panel display | When a suspicious item is found, the security door sounds an alarm and the front doorpost area light bar lights up. The alarm area can also be seen through the panel, which can more accurately and intuitively see the location of prohibited items. |
| Passed | It can record 9999 times. The infrared radiation on both sides can automatically detect the number of passing people and the number of alarms, with an accuracy of 100%. |
| Shockproof design | The world's exclusive shock-proof design can operate normally under crowded conditions, and hand-tapping the door panel will not cause false alarms. |
| Sensitivity adjustment | Each detection zone has 0-1999 level sensitive programs that can be adjusted arbitrarily. In order to meet the different prohibited items detected by customers, the possible parts of metal objects can be set in advance according to the actual use situation, and the volume, weight, and size can be adjusted appropriately. Eliminate false alarms of belt buckles, keys, jewelry, coins and other items. The highest sensitivity can detect a paper clip-sized metal or a dime. |
| operating hours | 24 hours continuous operation |
| Password protection settings | With password protection function, it can be modified only by inputting the password. Non-operators cannot modify it. |
| Alarm setting | The alarm bell can be adjusted, the alarm volume can be adjusted, and the sound and light can be alarmed at the same time. |
| Materials | Adopt fireproof board, plus waterproof material, the detector body is provided with waterproof foot covers on the top and bottom, and there are alloy pillars inside, which do not deform, waterproof, fireproof and anticorrosive. |
| safety standard | It complies with the current international safety standards and adopts weak magnetic field emission technology, which is harmless to cardiac pacemaker wearers, pregnant women, video tapes, etc. |
