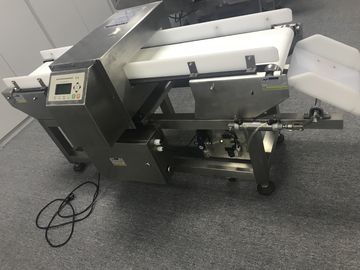

FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm
FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm
FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm
FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm
FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm
FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm

FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VDF-5025

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description
Highlight:

non ferrous metal detector

,

metal detectors for food industry

Product Name:
Metal Detector
Material:
304 SUS /316 SUS
Tolerance:
Fe: 1.2 Mm, Non-fe: 1.5 Mm, SUS: 3.0 Mm
Tunnel Dimension:
50 X 25 Cm
Height From Ground To The Belt:
800 Mm + 50 Mm
Warranty:
1 Year
Product Name:
Metal Detector
Material:
304 SUS /316 SUS
Tolerance:
Fe: 1.2 Mm, Non-fe: 1.5 Mm, SUS: 3.0 Mm
Tunnel Dimension:
50 X 25 Cm
Height From Ground To The Belt:
800 Mm + 50 Mm
Warranty:
1 Year
FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm
Overview

New design FDA Food Grade Metal Detector Machine For Food Industrial

Quick Details
Type: industrial metal detectors
Brand Name: V FINDER
Product name: Food Industrial Full Digital Metal Detector
Electrical source 220/110V
Power 120W
Raw Material: 304 Stainless steel/ 316 Stainless steel
Transfer ability: 10KG
Place of Origin Dongguan, China
Model Number VDF-5025
Detection window 500 mm (Width) x 250 mm (Height)
Screen: Digital
Function: Technique Of Phase Adjustment
Belt width(MM): 250


Introduction


Advanced technique of electrical & mechanism designs is adopted for EJH series digital intelligent auto-conveying metal detector which have reasonable structure, beautiful appearance, highly detection sensitivity and stable behaviors. It is characterized by high detecting sensitivity and stable & reliable performance.
Comparing with traditional simulation detector , the function is more complete , the capability is more stable and dependable. It accord with the demand of certification-HACCP, QS, ISO9001, FDA.



Feature



LCD display, DSP digital signal processing technology, OSD menu in Chinese and English Recording and memory function: able to store up to 20 kinds of different products. Dual- channel and dual-frequency detecting to detect all metals: Fe and non-ferrous metals like stainless steel respectively. 360 degree phase identifying technology adopted to decrease product effect and improve sensitivity in non-ferrous metal detecting. With high stability: no alarm even being hammered. The Food industry conveys belt confirms to FDA standard and can be used to convey unpacked food directly. Can be integrated into production line or automatic equipment.



Non-ferrous:1.0mm diameter ball

SUS: 1.2 mm diameter ball
Alarm: Audible and visual with automatic stop can install with the auto-rejection equipment according customer’s requirement.
Power: AC110V/220V/380V 50/60Hz.



Table of Sensitivity



  25*8cm 30*10cm 40*15cm 50*20cm 60*30cm
FE ≥0.5mm ≥0.8mm ≥0.8mm ≥1.0mm ≥1.5mm
SUS ≥1.2mm ≥1.5mm ≥2.0mm ≥2.5mm ≥3.0mm

Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on condition of different products being tested.

Way of alarming: sound and light alarm, stop running automatically.



Performance


Detection style: digital intelligent with LCD display
Language : English,
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
height of inspection window(cm):10
width of inspection window(cm):40

Highest Sensitivity: Ferrous 0.5mm diameter ball

FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm 0FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm 1FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm 2FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm 3



FDA Industrial Food Grade Metal Detector Tunnel Dimension 50 X 25 Cm 4
