Stainless Steel Pipe Food Grade Metal Detector 12 Months Warranty

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VMD-1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

non ferrous metal detector

,

metal detectors for food industry

Type:
Food Metal Detector
Power:
Electronic And Penumatic
Material:
304 Stainless Steel
Warranty:
12 Months
Tube Diameter:
35 50 70 Mm Optional
Feeding Hopper:
Optional
Type:
Food Metal Detector
Power:
Electronic And Penumatic
Material:
304 Stainless Steel
Warranty:
12 Months
Tube Diameter:
35 50 70 Mm Optional
Feeding Hopper:
Optional

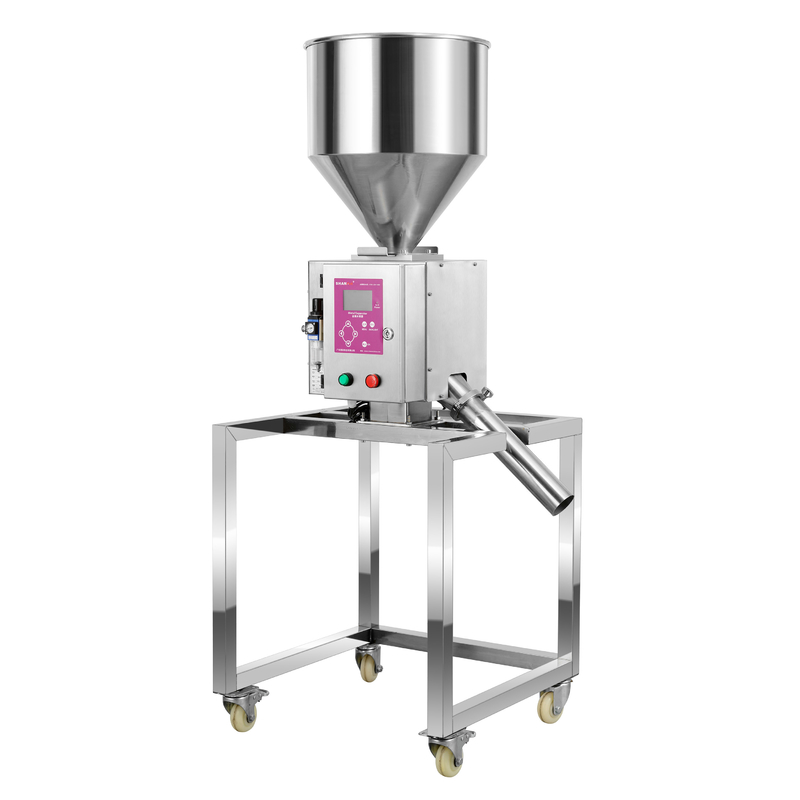

Stainless Steel Pipe Food Grade Metal Detector 12 Months Warranty





VMD-1 Analogy signal process gravity food metal detector (Suitable for Food,candy chocolate )

Gravity food metal detector .High sensitivity high stability .Top features in the world .Can detect and separator cooper .aluminum .Tin and so on all metal scraps . Especially super design for food processing industry . Avoid the influence to food itself and keep high detect and separator sensitivity


Key features:


  1. Full SUS 304 built structure
  2. Upright feed structure .automatic free fall
  3. Can detect the magnetic and non magnetic metals ( for example
  4. Ferrous.cooper. Can independent place beside crush machine .all raw materials direct pass through metal separator . Prevent have metal scraps mixed into food . Keep food conform to HACCP )
  5. Easy operator and have bracket and feeding Hooper.easy for customer use .



The core control part :



  • Control system Germany MEITLE
  • The start-up electromagnetic valve Germany FESTO
  • The actuating cylinder Japan SMC
  • Gas filter Jan pan SMC



Scope of application :



  1. Food including: meat, dairy, wet and dry ingredients, baked goods, confectionary products, Wet (dairy, hummus) Dry (rice, oatmeal), and Raw (chicken, beef, fish, vegetables and fruits).
  2. Non-food packages can be weighed including:
  3. Transport;
  4. Automotive ;
  5. Pharmaceuticals:drugs,medicine;
  6. Chemicals; Rigid (cans, cardboard packages, plastic, glass) Soft (plastic, paper, foil), bullets;
  7. Metal manufacture and fabrication industries: bags of construction materials like cement;
  8. Others: personal care packaged items;
  9. Use in detecting the single product weight and setting target value which is accordingly or not. And the sorting device will eliminate the unstandard product


Detect sensitivity :



Feed tube diameter Yield Sensitive :Fe :SUS)
35MM 300KG/HR Fe:0.6mm sus:1.0mm
50MM 800KG/HR Fe:0.8mm sus:1.5mm
70MM 1800KG/HR Fe:1.0mm sus:1.8mm
120MM 2000KG/HR Fe:1.5mm sus:2.5mm



Stainless Steel Pipe Food Grade Metal Detector 12 Months Warranty 0Stainless Steel Pipe Food Grade Metal Detector 12 Months Warranty 1Stainless Steel Pipe Food Grade Metal Detector 12 Months Warranty 2


Company information:



we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
