Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VMD series
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Material: |
SUS304 |
Usage: |
Metal Particles Inspections |
Applications: |
Food, Plastic, Medicine,Powder, Granules, Rice |
Detect Range: |
Magnetic And Non Magnetic Materials |
Tube Diameter: |
35 50 70 Mm Optional |
Material: |
SUS304 |
Usage: |
Metal Particles Inspections |
Applications: |
Food, Plastic, Medicine,Powder, Granules, Rice |
Detect Range: |
Magnetic And Non Magnetic Materials |
Tube Diameter: |
35 50 70 Mm Optional |

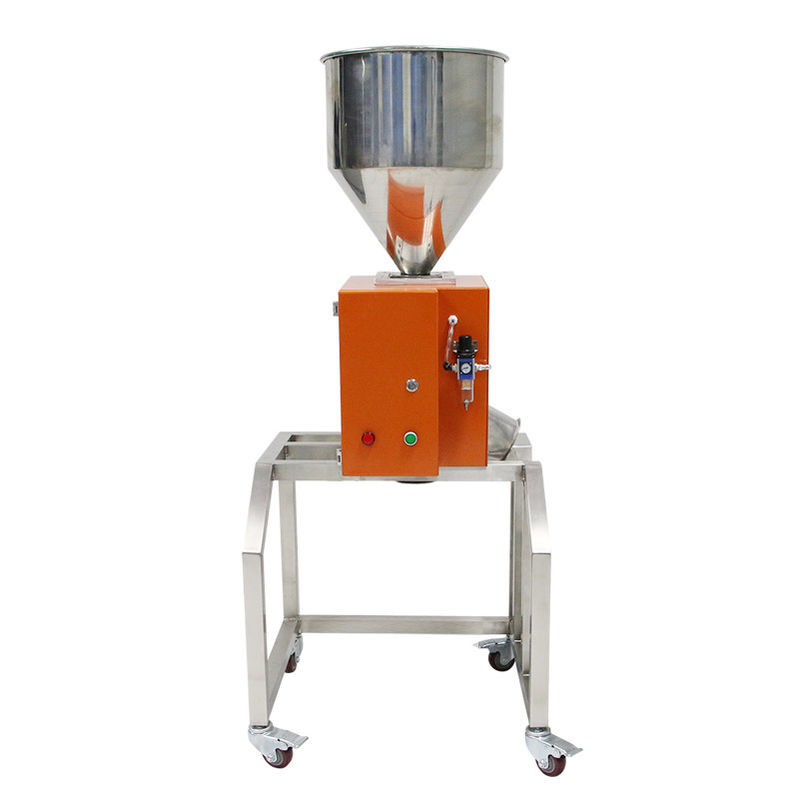

Digital Gravity Free Fall Metal Detector / Food Plastic Industry Metal Detection
|
Application:
|
|
Functions:
|
|
Advantages:
|
|
1. Protect production device; 2. Enhance production efficiency; 3. Improve the availability of raw material; 4. Enhance product’s quality; 5. Reduce the expense of maintenance and shuts-down;
|
Techs:
|
Model
|
Feeding
caliber
(mm)
|
Detection sensitivity
|
Compressed
air
|
Testing
material
temperature
|
Non-conforming
material
Draw time
|
Host
installation
height
(mm)
|
|
|
Fe
|
SUS
|
||||||
|
VDM-50
|
50
|
0.3mm
|
0.5mm
|
3~5Bar
|
< 80℃
|
0.3~5s
|
|
|
VDM-70
|
70
|
0.7mm
|
1.0mm
|
3~5Bar
|
< 80℃
|
0.3~5s
|
|
|
VDM-100
|
100
|
0.8mm
|
1.2mm
|
3~5Bar
|
< 80℃
|
0.3~5s
|
473
|
|
VDM-120
|
120
|
1.2mm
|
1.5mm
|
3~5Bar
|
< 80℃
|
0.3~5s
|
|
|
VDM-150
|
150
|
1.5mm
|
2.0mm
|
3~5Bar
|
< 80℃
|
0.3~5s
|
600
|
|
VDM-200
|
200
|
1.8mm
|
2.2mm
|
3~5Bar
|
< 80℃
|
0.3~5s
|
922
|
★Packing details:
Gravity Metal Separator Free Fall Metal Separator for Plastic Industry Package:
1. Plastic wrap moisture
2. Fixed on the bottom of the wooden box
3. Standard export wooden box packaging, reinforcement
Warranty Period
(a) Standard 12 (Twelve) months dated from delivery (Consumable parts and man-made broken are not included); ; If need much longer warranty period, please contact with our salesman. During warranty period, we offer replaced new parts for free. (b) Out of warranty period, we will offer spare parts and technical support too and help customer to solve problems; If need replace parts, we will charge parts costs
