Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VDM-6T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |
Product Name: |
Medicine Metal Detector |
Nesting Time: |
0.3-5S |
Sensitivity: |
0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel |
Amount: |
250KG/HR |
GMP Standard: |
Yes |
Detection Diameter: |
25 Mm |
Reject System: |
Automatic Push Rod And Alarm |
Customized: |
OEM |
Vertical Throat Metal Separator Pharmaceutical Industry Capsule Tablet Metal Detector

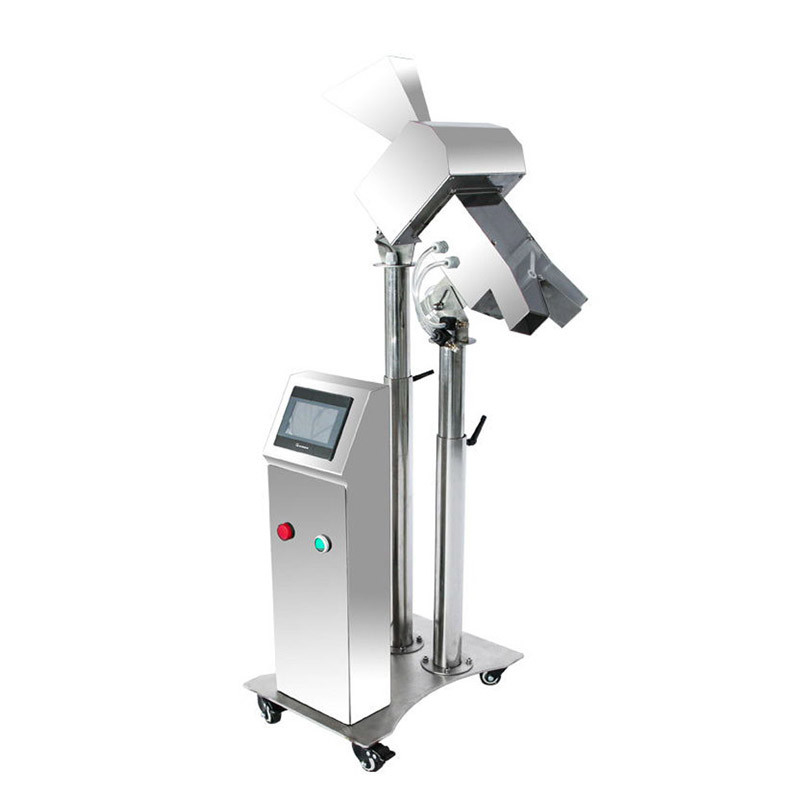

316 Stainless Steel Digital free fall gravity metal detector for pharmaceutical
Company introduce:
Vfinder is a manufacturing company specialized in the design, engineering and production of Metal Detectors .check weigher .needle detector and Electromagnetic Inspection Devices.we offering solution for food industry ,Pharmaceutical industry , Textile garment industry ,Rubber industry .Tory industry where the factory need help to control their quality for find broken needles and metals .
Under our solution and machine support our valued customer can accreditation with the FDA ,ISF ,HACCP even FCCA request and requirement .
Meanwhile we strongly support the all the world public security career.with our support by our product of walk through metal detector and x ray baggage scanner . So many public can be safety , so many dangerous products can been keep away from public people .
Pharmaceutical metal detector
u German technology. Master control board is exported from German, High scanning sensitivity, High reliability
u Metal separator is used for the inspection of tablets and capsules. It detects all magnetic and non-magnetic metal contaminations (steel, stainless steel, aluminium) and eliminates.
u Matching with tablets press machine, capsule filling machine and used alone
Advantages
u Waterproof design, easy to clean
u The special structural design can effectively avoid vibration ,noise and the external factors such as product effect.
u Separation unit and product-contacting metal parts completely made of stainless steel 1.4301
Feature
u Auto-learn function with product compensation for optimal adaptation to the intrinsic conductivity of the product to be inspected.
u Multi-product memory.
u Rapid de-contamination , To reduce the material loss, Do not interfere with the normal manufacturing process
u Detection object: tablet, capsule, particle
u Scanning sensitivity: Fe≥0.2mm,SUS≥0.4mm
u Rejection method: eliminator removes metal impurities automatically
u The whole design conformity with GMP and CE standard, also the eleventh part of 21CFR
u Protection rating:IP65
Sensitivity and production capacity
| Feed Opening | Production capacity | Detect Sensitivity (Iron :Fe Cooper:Cu Stainless Steel:SUS) |
| 35mm | 300kg/hr | Fe:0.3mm Cu0.3mm sus:0.8mm |
| 50mm | 800kg/hr | Fe:0.5mm Cu0.5mm sus:1.0mm |
| 70mm | 1800kg/hr | Fe:0.8mm Cu0.8mm sus:1.5mm |
| 100mm | 2500kg/hr | Fe:1.2mm Cu1.2mm sus:2.0mm |
| 150mm | 5000kg/hr | Fe:1.8mm Cu1.8mm sus:3.5mm |
Features of properties:
1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65
8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.
