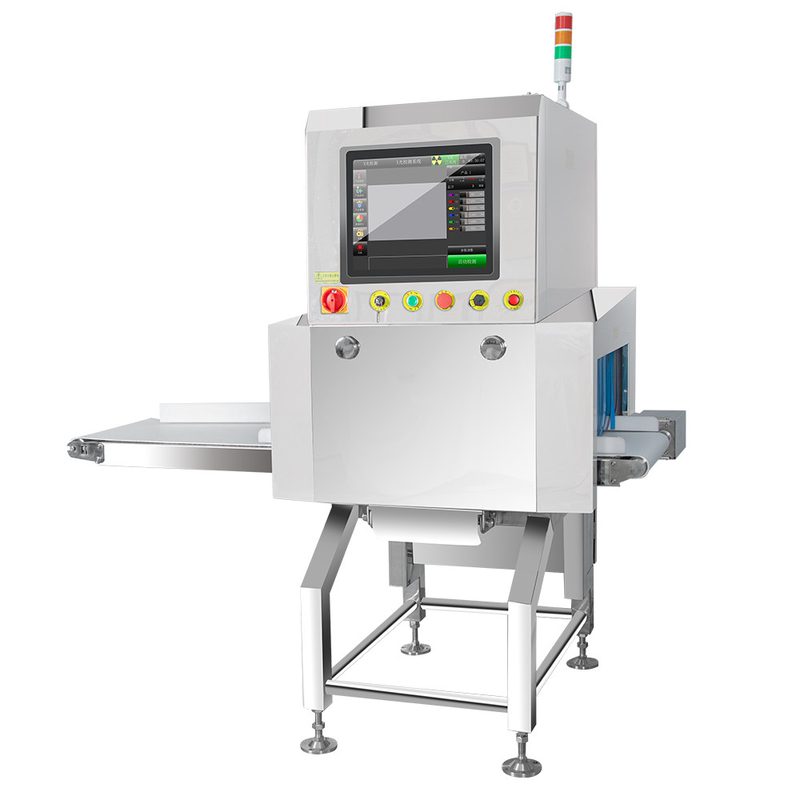

Food Industry X-Ray Inspection Machine For Aluminum Foil Pouches And Canned Goods Foreign Object Detection

Name: Food Industry X-Ray Inspection Machine For Aluminum Foil Pouches And Canned Goods Foreign Object Detection
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-4025
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SA-4025

Document: Food X-ray machine.pdf

Payment & Shipping Terms

Packaging Details: wooden box

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Canned Goods X Ray Inspection Machine, Canned meat x ray machine, x ray machine for food processing


Body Material:	Mirror Polish SUS304	Parameter Settings:	Self-learning / Manual Adjustment
Inspection Speed:	Up To 600 Products Per Minute	Operation Method:	Touch Screen Operation
Warranty:	1 Year	Maximum Product Size:	600mm (W) X 400mm (H)
Power Supply:	AC 220V, 50Hz, 1.5kW	Protection Level:	IP67

Body Material:	Mirror Polish SUS304
Parameter Settings:	Self-learning / Manual Adjustment
Inspection Speed:	Up To 600 Products Per Minute
Operation Method:	Touch Screen Operation
Warranty:	1 Year
Maximum Product Size:	600mm (W) X 400mm (H)
Power Supply:	AC 220V, 50Hz, 1.5kW
Protection Level:	IP67

Food Industry X-Ray Inspection Machine For Aluminum Foil Pouches And Canned Goods Foreign Object Detection

Products Description

Model		SAXR-4025
X-ray source		VJX IXS100 150W/210W 80kV
Detect maximum width(mm)		250 (can customize)
Detect maximum height (mm)		400 (can customize)
Best empty machine detection accuracy	FE(Φmm)	≥0.4
	Glass ball(Φmm)	≥1.0
	Ceramic ball(Φmm)	≥1.0
Overall equipment size		1650x530x1895 mm
detector		DT X-Scan C 0.4 mm
conveyor belt		10-60m/min speed adjustable
Display		17-inch full-color touch screen
Maximum load-bearing capacity of conveyor		5Kg
operating system		Windows 11
working environment		Temperature: 0‒40°C Humidity: Relatively moderate 30~90%, no condensation
X-ray leak		< 1 microsievert/hour
Exclude organizations (optional)		Swing bar/Push plate removal/Flip plate/Blow
Protection method		Removable protective curtain/shield
Equipment fixation and mobility		The feet can be raised and lowered. If the rejection device is a stand-alone machine, it should be the same as the main machine.
power supply		AC 220V
Protection level		IP65
Body material		SUS304
