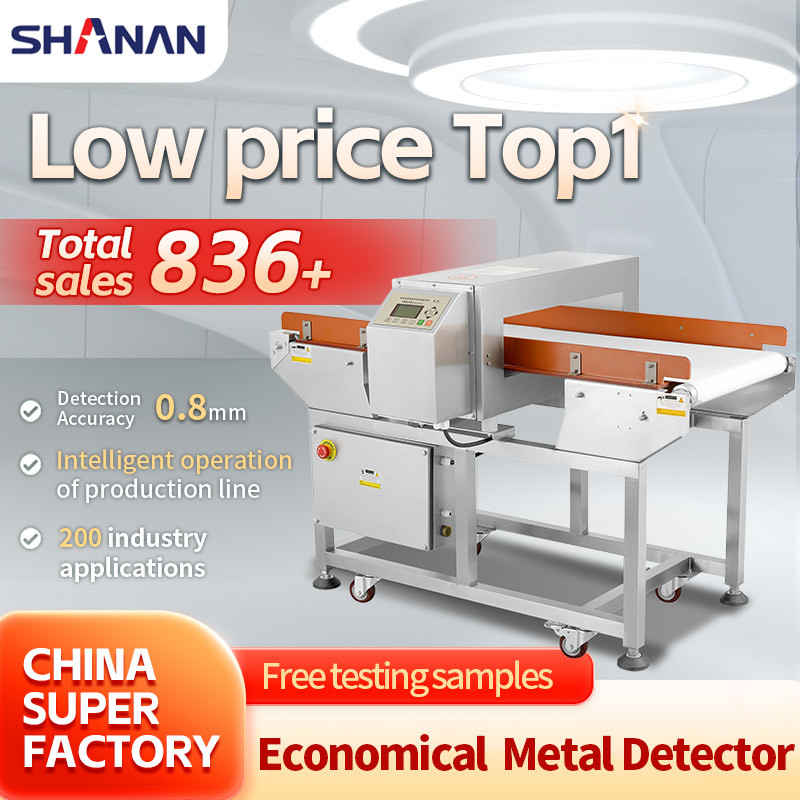

Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

textile metal detector

,

metal detector machine

Machine Type:
Conveyor Type
Suitable For:
Metal Objects Inspection
Machine Materials:
304 Stainless Steel Stucture
Alarm Method:
Sound And Light Alarm
Rejection:
Automatically Stop, Push Rod And Air Blast
Belt Speed During Running:
27-38 M/MIN
Conveyor Belt:
FAD
Display Method:
Button Control, Not Touch Screen
Warranty:
12 Months
Machine Type:
Conveyor Type
Suitable For:
Metal Objects Inspection
Machine Materials:
304 Stainless Steel Stucture
Alarm Method:
Sound And Light Alarm
Rejection:
Automatically Stop, Push Rod And Air Blast
Belt Speed During Running:
27-38 M/MIN
Conveyor Belt:
FAD
Display Method:
Button Control, Not Touch Screen
Warranty:
12 Months
Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment

Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment



  • Details
  1. Main material is stainless steel , anti-erosion and long life span.
  2. Eliminated the ferrous,non ferrous and stainless steel metal ingredient.
  3. The conveyor belt is made of nonpoisonous materia.
  4. Water-Proof, IP66 compliant.
  5. Good Anti-interference function: reduce product effect signal.
  6. The performance of the conveyor belt is complied with the American food sanitation standard (FDA),
  7. it can be used for transporting the unpacked food directly.
  8. Store about 100 product data, is suitable for a product line with volatile detecting products.
  9. Can stably work for a long time, with a special design that is suitable for a harsh production environment
  10. of strong vibration and high interference,and the equipment won’t miss alarm even when you tap the probe.
  11. Siemens touch screen and control systems, high speed digital signal processing devices and intelligent
  12. algorithms, which greatly improves the sensitivity and stability of the machine.
  • Technical parameters

    1. Inspection window size:

    Normal height of inspection window(mm): 200

    Normal width of inspection window(mm): 400

    The measures of the inspection window which can be designed according customers requirement.

    Electrical source: 220V 50Hz
    Power : 120

    2.Alarm: Audible and visual alarm, automatic stop

    3.Normal Size (mm): (mm): 1600(L) X 900(W) X800(H)

    4.Gross Weight: approx 350Kgs Net Weight: Around 300kgs


    Table of Sensitivity

    Sensitivity Parameter list:

    Tunnel size 25*8cm 30*10cm 40*12cm 50*20cm 60*30cm
    Fe: ≥0.5mm ≥0.8mm ≥0.8mm ≥1.0mm ≥1.5mm
    sus: ≥1.2mm ≥1.5mm ≥2.0mm ≥2.5mm ≥3.0mm

    Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on

    condition of different products being tested.



    Quality assurance:

    One year limited warranty(Labor and parts)








Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment 0



Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment 1





Auto Metal Detector Food Industry / Metal Detectors Belt Conveyor Equipment 2





  • Service

Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

Onsite Service:

1. Device installation;

2. Equipment Operation Test Technology training;

3. Equipment Calibration;

4. Daily maintenance and maintenance of equipment



Free technical training for visiting factories

24-hour Online contact

Free software upgrades





Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)



Device Problem Handling:

1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service
