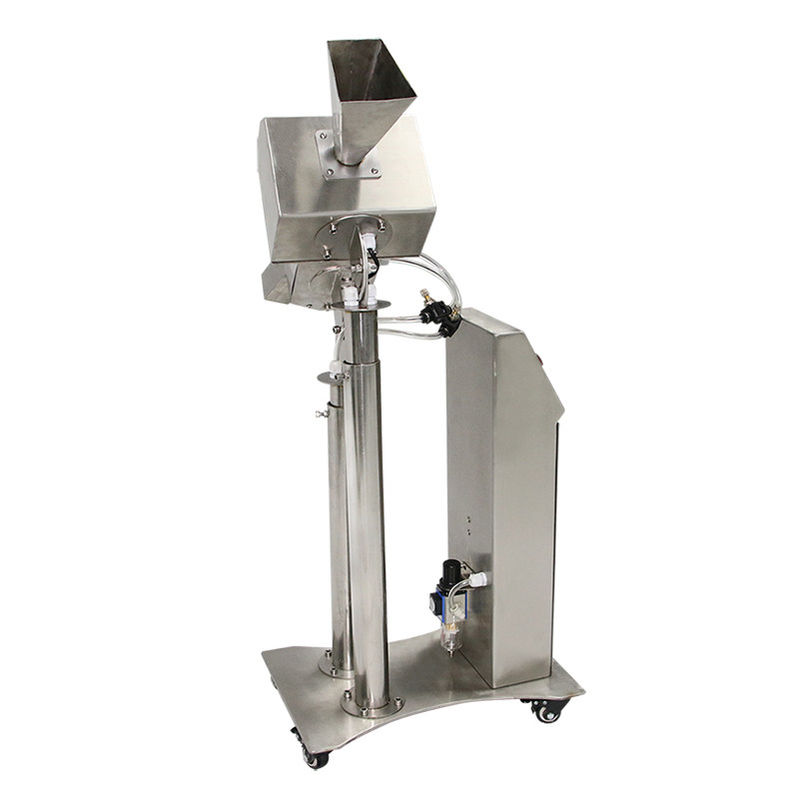

Pharmaceutical 25mm Inline Tablet Capsule Metal Detector

Pharmaceutical 25mm Inline Tablet Capsule Metal Detector
Pharmaceutical 25mm Inline Tablet Capsule Metal Detector Pharmaceutical 25mm Inline Tablet Capsule Metal Detector

Large Image :  Pharmaceutical 25mm Inline Tablet Capsule Metal Detector

Product Details:
Place of Origin: DongGuan, China
Brand Name: Vfinder
Certification: CE ISO
Model Number: VDM-6T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: strong polywooden case
Delivery Time: 7 working days after confirm order
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100set/month
Detailed Product Description
Product Name: Medicine Metal Detector Nesting Time: 0.3-5S
Sensitivity: 0.2 Mm Ferrous , 0.5 Mm Non-ferrous, 0.5 Mm Stainless Steel Amount: 250KG/HR
GMP Standard: Yes Detection Diameter: 25 Mm
Reject System: Automatic Push Rod And Alarm Customized: OEM
High Light:

25mm Capsule Metal Detector

,

25mm Tablet Metal Detector


25mm Diameter High quality tablet capsule metal detector for pharmaceutical



Product Usage:



Can be used for tablet press, capsule filling machine, sieve machine and other pharmaceutical equipment, apply to tablets, capsules of metal foreign body detection.



Features:

high frequency operation mode, greatly enhance the detection sensitivity.

Precise and efficient removal of equipment to minimize material waste.

meet the pharmaceutical regulatory standards, in accordance with the GMP standard manufacturing.

Touch screen display, easy to set up and operate.

The height angle of the device can be easily adjusted, and the universal casters ensure easy movement.



Device parameters:



name All-digital intelligent metal detector
model VDM-6T
Main material Made of all stainless steel
Detection sensitivity Air machine: Fe ≥ φ0.6mm No-fe≥φ0.8mm Sus304≥φ0.8mm
Effectively detect the hole width 100mm
Effectively detect hole height 25mm
Operation interface touch screen
Alarm mode Sound and light alarm, copy automatically removed
Body material Subject SUS304
Record function 99 species
Self-learning function Quickly learn product features and complete automatic setup
Phase tracking function Maintain a stable high-precision detection capability
Product tracking function Automatic adjustment of the internal adjustment according to the change of the product effect
Optimize the hardware structure Using single-chip high-performance FPGA hardware program to provide hardware base
speed Free to fall
Power requirements AC220V (other requirements optional)
Protection class IP54
Overall size 870*650*1000mm
Net weight

100kg




Features of properties:

1. Collection of detection coil, controller, separation device. Easy to operate and install;
2. It can save losses of material, because rejection board rapidly rejects unqualified material.
3. Low height of installation, easy for integrity;
4. Properties of detection material: dry, good liquidity, no long fiber, no conductivity;
5. Temperature of detection material: less than 80℃;If exceeds 80℃, can choose special components.
6. Controller can be installed around detection place about 10m.
7. Protection level: IP65

8. It is mainly used for detection of loose granule materials(8mm). Those materials fall into detection coil with gravity. The machine can be applied in plastic, food, chemical industry and so on.


Pharmaceutical 25mm Inline Tablet Capsule Metal Detector 0
