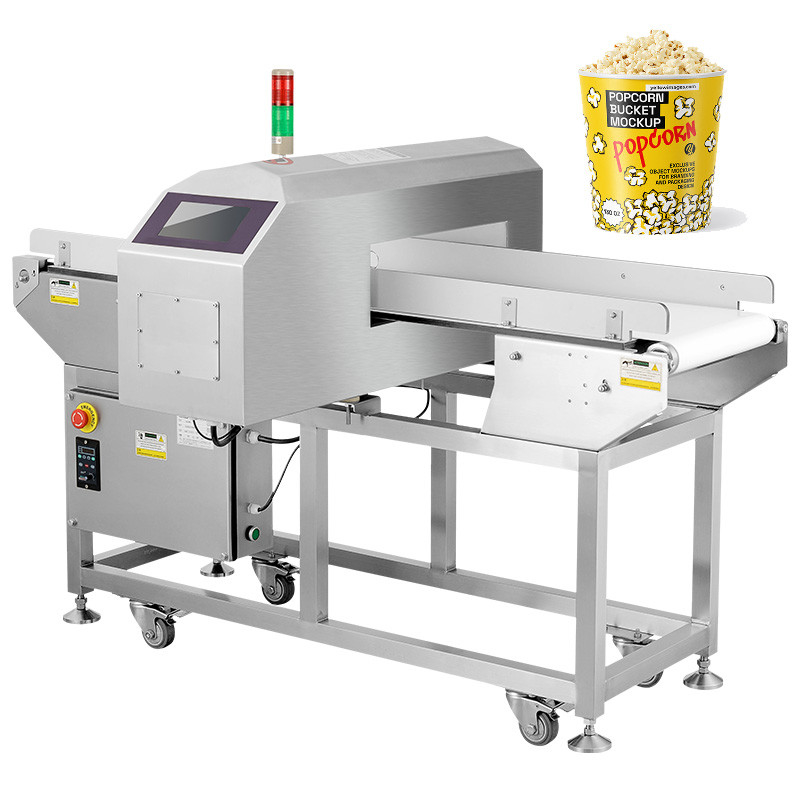

Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VTF-6012

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

non ferrous metal detector

,

metal detectors for food industry

Aperture/Tunnel Size Options:
150~1500mm (W) X 100~600mm (H)
Conveyor Belt Size Options:
80~1450mm (W) X 500~2000mm (L)
Rejection Options:
Belt Stop, Air Jet, Pusher, Falling Drop, Belt Compress, Down Flap
Tunnel Size:
600*120mm
Length:
1330mm
Display:
Analog / Digital / Touch Screen
Alarm:
Sound And Light
Reject System:
Optional
Certificate:
CE ISO
PN:
18
Aperture/Tunnel Size Options:
150~1500mm (W) X 100~600mm (H)
Conveyor Belt Size Options:
80~1450mm (W) X 500~2000mm (L)
Rejection Options:
Belt Stop, Air Jet, Pusher, Falling Drop, Belt Compress, Down Flap
Tunnel Size:
600*120mm
Length:
1330mm
Display:
Analog / Digital / Touch Screen
Alarm:
Sound And Light
Reject System:
Optional
Certificate:
CE ISO
PN:
18
Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors

HACCP Plan metal detector / CCP metal detector / FDA metal detector /HACCP ISO and FDA Certification Metal Detector



HACCP ISO and FDA Certification Metal Detector


Features:

  • HACCP- compliant design
  • Automatic sensitivity function
  • Strictly comply to HACCP, GMP and FDA standard
  • Audio and visual indication on metal detection
  • Product effect compensation

Parameter:



Detected products Height 80 120 80 100 120 150 200
Detected products Width 300 300 400 400 400 400 400
Belt Width 250 250 350 350 350 350 350
Belt length 1500



Detector sensitivity

Feф0.5 FeФ0.8 FeФ0.6 FeФ0.7 FeФ0.8 FeФ0.8 FeФ1.0
SUSф1.0 SUSФ1.5 SUSФ1.0 SUSФ1.2 SUSФ1.5 SUSФ2.0 SUSФ2.3
N-Feф0.8 N-FeФ1.0 N-FeФ0.8 N-FeФ1.0 N-FeФ1.2 N-FeФ1.5 N-FeФ1.5
Speed of belt 27M/min (can adjust 5-40 M/min)
Load ability 20KG
Count 100
Reject Ways Sound and light alarm with belt stoped ;(when has auto-reject system ,belt continue and rejecting the goods )
Application Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%




Application:

  • Be widely used for medium or small package and bulk food,medicine product lines and so on . For example ,frozen dumplings, meatballs,aquatic products,sanitary napkin,chafing dish material,prepared food.
  • The machine has learning function of automatic indentification for different detection products , to try its best to reduce the influence of material effect .
  • According to the different products and lines , we can customize different sizes and reject system.
  • Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65 .

Product introduction:



Metal detection is a fact of life in the food processing industry. Most processors, whether they process snacks, meats, grains or liquids, have either metal detectors or X-ray machines to detect and control metal contamination. X-ray machines are often the preferred choice because many food processors use metallized films as their primary packaging, eliminating a metal detector as an option. X-ray machines also have the added advantage of being able to detect and eliminate other foreign materials such as plastics, bones, stones and glass. In addition, they can be used to monitor fill weights, cap alignments and other issues.



There is an ongoing debate as to how metal detectors should be incorporated into food quality and safety programs. Still, some companies have determined metal detection should be a critical control point (CCP) in their HACCP plans. Others deem it part of quality management. For instance, if the end products are chopped or ground, and a hazard assessment determines a significant potential for metal contamination, the company will probably adopt it as a CCP. However, if a processor produces purées or juices, it might install an inline metal detection unit to not only look for metal, but also to protect equipment located downstream from the unit. Other processors base their decision not on risk, but on customer demands, meaning if a primary customer demands metal detection as a CCP, the processor will use it.



The Food Safety Modernization Act also is a factor in how metal detection will be viewed in the future. Chapter 20 of the 4th Edition of the Fish and Fishery Products Hazards and Controls Guidance (Metal Inclusion) includes the implication that if metal detectors are used, that step in the process must be considered a critical control point, even if the risk is deemed insignificant.



FDA will likely use the seafood document as a model for developing guidance for the rest of the food processing industry. While guidance documents help processors develop a food safety management system, FDA does not treat them as a “guide,” but as a bible. If a processor has a metal detector or X-ray machine in place and uses it to ensure quality, it must be able to clearly document why it is being used that way.
