Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors

Certification
China GUANGDONG SHANAN TECHNOLOGY CO.,LTD certification
China GUANGDONG SHANAN TECHNOLOGY CO.,LTD certification
Customer Reviews
Your food metal detector machine with Spanish Operation system is excellent The operation is easy and senstivity is high I will introduce it to my other food factory friends

—— Miquel Font

Thank you brother, You are a reliable supplier The metal detector and baggage scanner works good

—— Doon

I'm Online Chat Now

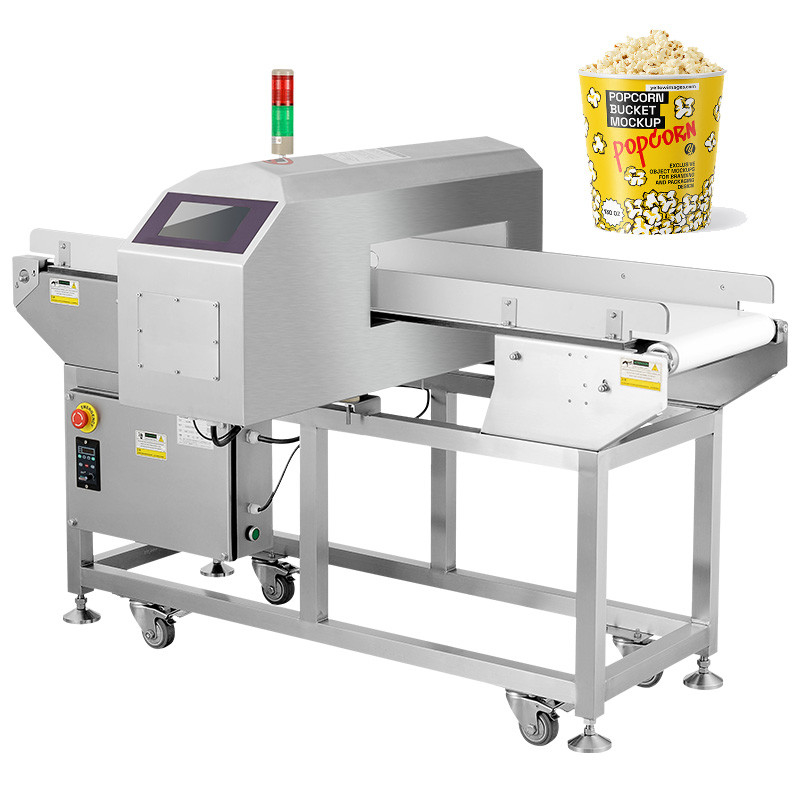

Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors

Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors
Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors

Large Image :  Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors

Product Details:
Place of Origin: China
Brand Name: Shanan
Certification: CE ISO
Model Number: VTF-6012
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: polywooden case
Delivery Time: 7 working days after confirm order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 set / month
Detailed Product Description
Aperture/Tunnel Size Options: 150~1500mm (W) X 100~600mm (H) Conveyor Belt Size Options: 80~1450mm (W) X 500~2000mm (L)
Rejection Options: Belt Stop, Air Jet, Pusher, Falling Drop, Belt Compress, Down Flap Tunnel Size: 600*120mm
Length: 1330mm Display: Analog / Digital / Touch Screen
Alarm: Sound And Light Reject System: Optional
Certificate: CE ISO PN: 18
High Light:

non ferrous metal detector

,

metal detectors for food industry

HACCP Plan metal detector / CCP metal detector / FDA metal detector /HACCP ISO and FDA Certification Metal Detector



HACCP ISO and FDA Certification Metal Detector


Features:

  • HACCP- compliant design
  • Automatic sensitivity function
  • Strictly comply to HACCP, GMP and FDA standard
  • Audio and visual indication on metal detection
  • Product effect compensation

Parameter:



Detected products Height 80 120 80 100 120 150 200
Detected products Width 300 300 400 400 400 400 400
Belt Width 250 250 350 350 350 350 350
Belt length 1500



Detector sensitivity

Feф0.5 FeФ0.8 FeФ0.6 FeФ0.7 FeФ0.8 FeФ0.8 FeФ1.0
SUSф1.0 SUSФ1.5 SUSФ1.0 SUSФ1.2 SUSФ1.5 SUSФ2.0 SUSФ2.3
N-Feф0.8 N-FeФ1.0 N-FeФ0.8 N-FeФ1.0 N-FeФ1.2 N-FeФ1.5 N-FeФ1.5
Speed of belt 27M/min (can adjust 5-40 M/min)
Load ability 20KG
Count 100
Reject Ways Sound and light alarm with belt stoped ;(when has auto-reject system ,belt continue and rejecting the goods )
Application Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%




Application:

  • Be widely used for medium or small package and bulk food,medicine product lines and so on . For example ,frozen dumplings, meatballs,aquatic products,sanitary napkin,chafing dish material,prepared food.
  • The machine has learning function of automatic indentification for different detection products , to try its best to reduce the influence of material effect .
  • According to the different products and lines , we can customize different sizes and reject system.
  • Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65 .

Product introduction:



Metal detection is a fact of life in the food processing industry. Most processors, whether they process snacks, meats, grains or liquids, have either metal detectors or X-ray machines to detect and control metal contamination. X-ray machines are often the preferred choice because many food processors use metallized films as their primary packaging, eliminating a metal detector as an option. X-ray machines also have the added advantage of being able to detect and eliminate other foreign materials such as plastics, bones, stones and glass. In addition, they can be used to monitor fill weights, cap alignments and other issues.



There is an ongoing debate as to how metal detectors should be incorporated into food quality and safety programs. Still, some companies have determined metal detection should be a critical control point (CCP) in their HACCP plans. Others deem it part of quality management. For instance, if the end products are chopped or ground, and a hazard assessment determines a significant potential for metal contamination, the company will probably adopt it as a CCP. However, if a processor produces purées or juices, it might install an inline metal detection unit to not only look for metal, but also to protect equipment located downstream from the unit. Other processors base their decision not on risk, but on customer demands, meaning if a primary customer demands metal detection as a CCP, the processor will use it.



The Food Safety Modernization Act also is a factor in how metal detection will be viewed in the future. Chapter 20 of the 4th Edition of the Fish and Fishery Products Hazards and Controls Guidance (Metal Inclusion) includes the implication that if metal detectors are used, that step in the process must be considered a critical control point, even if the risk is deemed insignificant.



FDA will likely use the seafood document as a model for developing guidance for the rest of the food processing industry. While guidance documents help processors develop a food safety management system, FDA does not treat them as a “guide,” but as a bible. If a processor has a metal detector or X-ray machine in place and uses it to ensure quality, it must be able to clearly document why it is being used that way.





Touch Screen Non Ferrous Metal Detector , Food Processing Metal Detectors 0
