Product Details
Place of Origin: China
Brand Name: SHANAN
Certification: CE, ISO
Model Number: SAXR-2412
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood wooden box
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Optimum Inspection Sensitivity: |
Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm |
Inspection Tunnel Size Parameters: |
Maximum Height: 120mm |
Conveyor Speed: |
5-60 Meter/minute |
Load Capacity: |
5Kg |
Rejector Mode: |
Sound And Light Alarm, Belt Stops (Rejector Optional) |
X-ray Leak: |
<1μSvh (CE Standard) |
Detector Type: |
Linear Scan |
Protection Level: |
IP66 |
Monitor: |
17'' Full-color TFT Touch Screen |
Operation Method: |
Touch Screen Operation |
Operation System: |
Linux (Core 4.10) |
Support Data Interface: |
USB |
Parameter Settings: |
Self-learning / Manual Adjustment |
Body Material: |
Mirror Polish SUS304 |
Conveyor Belt Material: |
PU Belt |
Air Conditioning: |
Internal Circulation Industrial Air Conditioner, Automatic Temperature Control |
Protection Method: |
Detachable Protective Curtain |
Cleaning Method: |
Tool-free Removal Of Conveyor Belt For Easy Cleaning |
Power Supply: |
AC110V/220/380V, 50/60Hz |
Environmental Requirements: |
Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation) |
Machine Weight: |
360Kg |
Optimum Inspection Sensitivity: |
Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm |
Inspection Tunnel Size Parameters: |
Maximum Height: 120mm |
Conveyor Speed: |
5-60 Meter/minute |
Load Capacity: |
5Kg |
Rejector Mode: |
Sound And Light Alarm, Belt Stops (Rejector Optional) |
X-ray Leak: |
<1μSvh (CE Standard) |
Detector Type: |
Linear Scan |
Protection Level: |
IP66 |
Monitor: |
17'' Full-color TFT Touch Screen |
Operation Method: |
Touch Screen Operation |
Operation System: |
Linux (Core 4.10) |
Support Data Interface: |
USB |
Parameter Settings: |
Self-learning / Manual Adjustment |
Body Material: |
Mirror Polish SUS304 |
Conveyor Belt Material: |
PU Belt |
Air Conditioning: |
Internal Circulation Industrial Air Conditioner, Automatic Temperature Control |
Protection Method: |
Detachable Protective Curtain |
Cleaning Method: |
Tool-free Removal Of Conveyor Belt For Easy Cleaning |
Power Supply: |
AC110V/220/380V, 50/60Hz |
Environmental Requirements: |
Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation) |
Machine Weight: |
360Kg |
Food manufacturers face many challenges, from maximizing output and enhancing production processes, to minimizing the risk of brand-damaging product recalls. Shanan provides the food inspection solutions your company needs to ensure a safe, high quality product.

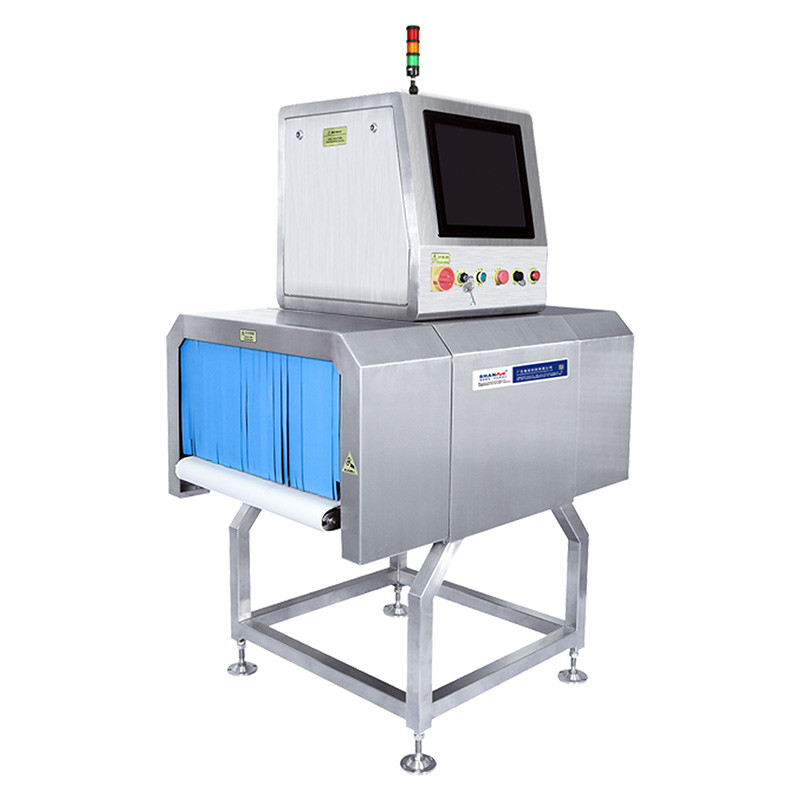

Inspect food products and remove the non-conforming ones quickly and accurately from your production line with our X-ray system. Using the latest in X-ray imaging and processing technology, our system allows you to detect even the smallest metal contaminants, stone fragments and glass splinters, and a variety of other foreign objects, resulting in 100% food quality control. The system is designed to work even with frozen food, or food wrapped in aluminum or other metalized packaging.
Application: Our x-ray machines excel at detecting physical contaminants such as glass, metal, stone, high-density plastics, rubber and bone
The capabilities of our systems include:
It has the same high detection accuracy as international brands and can be easily set by the operator.
(1) No matter how complex the product is, it can also be set through the automatic learning process without the participation of technicians.
(2) Shanan's algorithm platform adopts dynamic feature recognition method to automatically select the best algorithm parameters and obtain the highest sensitivity.
(3) The self-learning process only needs up to 10 images, and the algorithm model training can be completed after waiting for up to 20 seconds.
We value technical design for reliability
(1) The first in the industry to use server-level Linux system to fundamentally ensure stability and immunity to computer viruses.
(2) The fully sealed design is adopted to deal with the humid environment, the double-layer thermal cycle is adopted to deal with the high temperature environment, and the anti-condensation design is adopted to deal with the temperature difference environment.
(3) All purchased parts are high-end accessories to ensure stable operation in harsh environments.
User-Centric Operation
(1) The protection level of the equipment detection channel is IP66, which can be washed directly.
(2) The X-ray leakage meets the US standard, the outside of the equipment is less than 1uSv/h, and it has the function of safety monitoring.
(3) With modular design, customers do not need to re-purchase the host if they need to upgrade the production line.
(4) It only takes 5 seconds to disassemble the belt, and it is extremely convenient to disassemble and wash on site.
(5) Product configuration and inspection pictures can be automatically saved and exported for analysis
