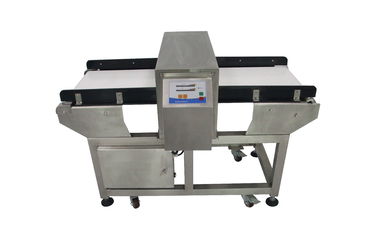

High Stability Metal Detecting Equipment 110V-220V With 50Hz Frequency

Product Details

Place of Origin: China

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Box

Delivery Time: 5-7 work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

conveyor metal detector equipment

,

metal detector machine

,

50Hz Frequency Conveyor Metal Detectors

Voltage:
110V-220V
Conveyor Belt Running Speed:
25-30m/min Or Customized
Reject System:
Optional
Machine Weight:
Around 250KG If Customized The Weight Will Different
Application:
Food Metal Detect
Certificate:
CE, ISO9001, HACCP
Voltage:
110V-220V
Conveyor Belt Running Speed:
25-30m/min Or Customized
Reject System:
Optional
Machine Weight:
Around 250KG If Customized The Weight Will Different
Application:
Food Metal Detect
Certificate:
CE, ISO9001, HACCP
High Stability Metal Detecting Equipment 110V-220V With 50Hz Frequency

Fully Automatic Food Grade Belt Conveyor Metal Detector For Food Industry



Technical parameters:


Model VMF series
Machine specification Normal machine Customized width
(mm)Detection Width 400 400 customized
(mm)Detection Height 100 120 150 200 250 300 350 400
Detection Sensitivity Fe(Φmm) ≥0.6 ≥0.8 ≥1.0 ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0
Non-Fe(Φmm) ≥1.0 ≥1.2 ≥1.5 ≥2.5 ≥3.0 ≥3.5 ≥4.0 ≥4.5
304Sus(Φmm) ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0 ≥3.5 ≥4.0 ≥4.5
Alarm and rejector system Automatic stop by alarm and sound or push rod or falling drop
Machine structure Full structure takes of stainless 304
Machine size (mm) L1520mm×W830mm×H1000mm if customized it will according to customized size
Machine weight Around 250KG if customized the weight will different
Voltage and power 220V 50Hz 90W
Load ability 5-25KG conveyor belt running speed :25-30m/min or customized
Height from the earth 650mm±50mm can customized
Note :Normal size machine have stocks. Unnormal size machine have to customized




Product advantages:

◆ Can identify a variety of magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.)even if the metal embedded in the products.
◆ Adopts the double circuit signal detection circuit, high sensitivity and strong anti-disturbance ability.
◆ Has the double circuit signal demonstration function. When the metal good is passing, the signal light will demonstrate different induction according to the size of the metal.
◆ Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
◆ Can avoid missing detection. When several metal signals are passing, the machine will automatically record the signal amount, so it won’t have missing detection.
◆ Control system: ADLINE microprocessor controller.
◆ Conveyors: Joint-body PU (polyurethane) Conveyor.
◆ Special transport mechanism designed the maximize sensitivity of metal detectors.
◆ Flexible modular design can be customized according to different requirements.
◆ Mirror stainless steel with open transport system. Easy to clean.
◆ Conveyer belt adopts imported white ones safe to food.
◆ Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.


 High Stability Metal Detecting Equipment 110V-220V With 50Hz Frequency 0

FAQ


1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3.How about the packing for product? Is it easy damaged during transportation?
For light structure products like Gold detector. Hand held metal detector and so on we takes of strong carton box .
For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case.
Every prepackage have a plastic bags cover .
4. What's your main product?
We professional in needle detector. Metal detector. X ray machine and other related electronic products and machines
5.Where is your main sales market?
Our Gold meal detectors customer all over the world.
Our hand metal detector and walk through metal detector mainly in Southeast of Asia.
South of America.Middle east. East Europe and Africa
Our needle and food metal detector mainly customers are from Australia. USA. All Europe and Asia
6.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
7.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
