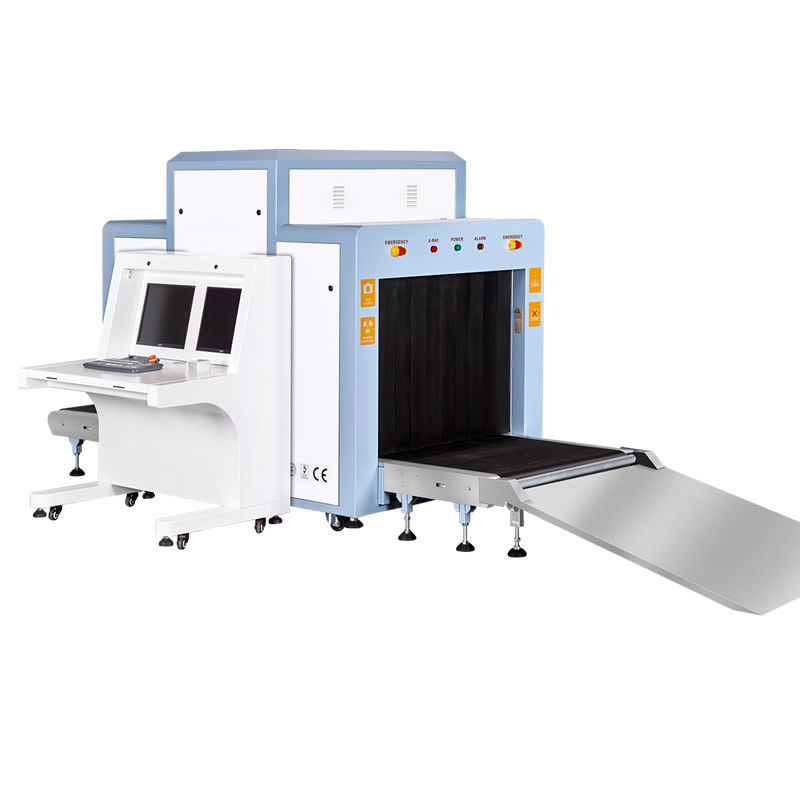

Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VX1001001
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Tunnel Size: |
1000*1000mm |
Application: |
Cargo Screening |
Load Ability: |
200KG |
X Ray Penetration: |
Less Than 34mm Iron Plate |
OEM: |
Accept |
Operation Table: |
Two |
Screen: |
Two Screen |
Anode Voltag: |
100-160KV |
Power Consume: |
1.5 KW (Max) |
Image Storage: |
Over 60000 Pictures In Real Time |
Tunnel Size: |
1000*1000mm |
Application: |
Cargo Screening |
Load Ability: |
200KG |
X Ray Penetration: |
Less Than 34mm Iron Plate |
OEM: |
Accept |
Operation Table: |
Two |
Screen: |
Two Screen |
Anode Voltag: |
100-160KV |
Power Consume: |
1.5 KW (Max) |
Image Storage: |
Over 60000 Pictures In Real Time |
FEATURE:
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss.
4. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eye:Could be expediently observing enlargement area.
6. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 1000(W)×1000(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 200 kg
Single inspection dosage < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation <0.3µGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods Sealed oil bath with forced air/100％
IMAGE PERFORMANCE SYSTEM:
X-ray Sensor: L Type Photo-Diode array detector 12bit.
Monitor: High resolution 17inch color LCD display.
Color Quality: 24 Bit real colors.
Edge Enhancement: Object contour edge is more distinct.
Super Image Enhancement: Image detail is more distinct.
High penetrate strength display: Increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly.
Low Penetrate strength Display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly.
Magnifier: Function of partial enlargement
Brightness/Dimming: Increase brightness of image/decrease brightness of image.
Image recurrence: Display previous twenty image and process any one of them.
Image restoration: Restore image to initial status at the time of stopping conveyor
Image storing: Real Time store any image and process it in operation status.
MULTI-ENERGY FUNCTION:
Multi-energy color: Display organic material for orange, display inorganic material for blue, and display mixture for green.
High energy / low energy: switch to display two energy type, high energy stands for metal etc. low energy stands for nonmetallic.
Auxiliay function for drugs & explosives: Help to detect such dangerous material as drugs& explosives etc.
Audible & visible alarm: Give sound and visible signal when conforming to condition.
ETHERNET TCP/IP FUNCTION
OPERATING ENVIRONMENT:
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.5 KW (Max)
Noise: <65DB
|
Tunnel Size: |
1000(W)*1000(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 200kgs |
| Dose per Inspection: | <1.7μGy/h |
| Resolution: | <0.101mm Metal Wire |
| Penetration: | 34mm Steel |
| Film Safety: | Guarantee ISO1600 Film |
| X-ray Leakage: | <0.1μGy/h (at a distance of 5cm From external housing) |
| Generate direct: | downward |
| Generate angle: | 80 degree |
| Anode Voltage: | 100-160Kv |
| Anode power: | 0.4 to 1.2mA |
| Cooling / Duty Cycle: | Oil Cooling /100% |
| X-ray Sensor: | L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
| Monitor: | High Resolution Color, LCD Accord, 17 inch |
| Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
| Image Grey Level: | 4096 |
| Image Max Resolution: | 1024 * 1280 pixel |
| Image Processing: | 24bit for processing real time |
| Image storage: | Storage 60000 pictures in real time |
| Zones & Zoom: |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation |
| Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power: | 220VAC(±10%)50±3Hz |
| Power Consumption: | 1.8 KW (max), 0.3KW(working) |
| Noise: | <58db |
Applications:
Airports,
Transport terminals,
Buildings,
Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,
Prisons,
Hotels,
Schools ,
Convention centers,
Security checkpoints,
Special events location
FAQ
.
| PRODUCT | CLIENT’S REQUIREMENT | |||
| Tunnel Dimension | 1m(W) x 1m(H0 Approx |
Verify Physically
|
Measure through measuring tape or a baggage of this dimension should be passed through the machine | |
| Conveyor Speed | 0.2m/s | Verify Physically | Make a marker on the middle of the belt ,then use the stopwatch test the minute distance then calculate the Second length | |
| Conveyor Height | 300 mm | Verify Physically | Through measuring tape | |
| Max Load | 200 Kg(evenly Distributed | Verify Physically | Put the load equivalent to 200 kg and let it pass through the mechine | |
| Resolution | 38 AWG/40 AWG | Verify Physically | You can cut one of the wire to check this | |
| Steel Penetration | 30/38 mm | Use an organic things put into a 30mm plate then screen it, try to see if can screen the organic product in orange color | ||
| X-ray leakages | Less than 1µ Gy/hr (at a distance of 5cm from the housing), complying with all published international standards | Use a length 300mm,width300mm,height 75mm board to through the x ray machine ,Then watch the screen | ||
| Dose per inspection | Less than 1 µ Sv | Physically by functioning machine | ||
|
Film Safety
|
Guaranteed for high speed film up to ASA/ISP 1600 | Use Use the ISO 1600 Film through | ||
| X RAY GENERATOR | ||||
| Anode Voltage | 160 K.v. | Electrical test method and Procedure. |
160 kV Operating at 150kV |
|
| Anode Current | 1ma |
Electrical test method and Procedure. |
Use Power meter | |
| Cooling | Sealed oil bath | Test Method and Procedure. |
Sealed Di- Electric Oil Bath with Forced Air |
|
| Duty Cycle | 100% | Test Method and Procedure. |
Rated for 100% Duty Cycle |
|
| IMAGE ACQUISITION SYSTEM | ||||
| X Ray Converter | L Shaped detector Line | Physically by functioning machine | ||
| Image Processing | 24 bits | Physically by functioning machine | ||
| Image Storage Capacity | Up to 50,000 images | Physically by functioning machine | ||
| Image Display | Color, Black& White, Multi energy, Multi absorptivity, inorganic stripping, Super enhancement, negative, high/low penetration | Observe the output | ||
| Region of interest(ROI) and Zoom | Selectable image, zoom regions,-1-32 times continuous enlargement, 1-3 times local enlargement | Physically by functioning machine | ||
| Image Recall | Preceding image recallable | Physically by functioning machine | ||
| Display Monitor | 17” high resolution LCD | Physically by functioning machine | ||
| ADDITIONAL FUNCTIONS | ||||
| Standard Functions | System menu, power on self test, dates/time display, luggage counter, certified number of operators, mains record. System On/Ray on timer, operating mode display, image storage | Physically by functioning machine | ||
| Optional | Explosives/Drugs Detection, Sound Alarm, Light alarm, image pic up system(CIS) | Physically by functioning machine | ||
| Installation Data | ||||
| Storage Temperature/Humidity |
-40 ° C to + 60 ° C 5% ~95%(Non Condensing) |
Non-functional |
-40 ° C to + 60 ° C 5% ~95% |
|
| Operating temperature/Humidity |
0 ° to + 40 ° 5% ~95%(Non Condensing) |
Functional |
0 ° to + 40 ° 5% ~95% |
|
| Power supply | 110-240 VAC(+10% to 15% and 50 Hz/60 Hz (+/- 3 Hz) | Functional | 110-240 VAC(+10% to 15% and 50 Hz/60 Hz (+/- 3 Hz) | |
| Power Consumption | 1.0 KVA | Functional | 1.0 KVA |
