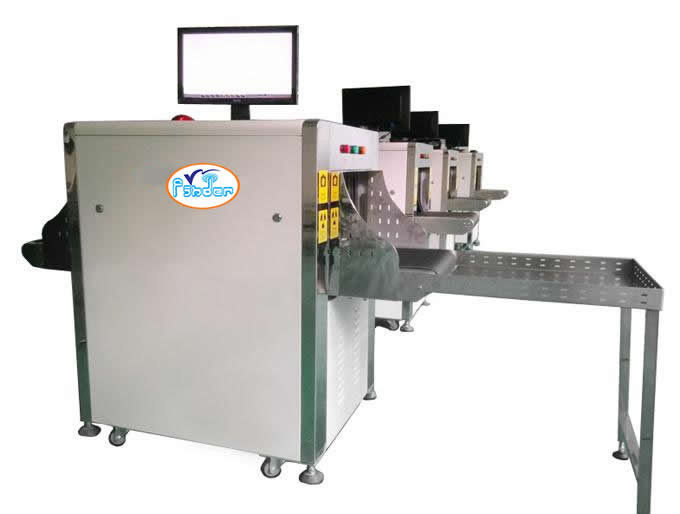

Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening

Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening
Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening

Large Image :  Largest Tunnel Sizes X Ray Luggage Scanner For Warehouses Pallet Screening

Product Details:
Place of Origin: DongGuan China (Mainland)
Brand Name: Shanan
Certification: CE , ISO
Model Number: VX5030C
Payment & Shipping Terms:
Minimum Order Quantity: i set
Price: negotiation
Packaging Details: Strong wooden Case Package
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/week
Detailed Product Description
Type: Baggage Scanner Usage: Security Inspection
Warranty: Labor And Parts 12 Months Operating System: WindowsXP
Film Safety: Safety To The ISO1600 Leaking Radiation Dose Rate: Away From Any Device Outer Surface Of 5cm, The Ray Irradiation Leak Rate Should Be < 0.05µGy/H
Dimensions: (L) 1750mm (W)750mm(H)1300mm NW / GW: 290 Kg / 360 Kg
High Light:

x ray scanning machine


security x ray machine


Cargo X-ray Scanners With Largest Tunnel Sizes Great For Warehouses Pallet Screening And Freight



Products advantages:


1. With equipment to save electricity

2. Famous brand spare parts:

(1). Spellman brand generator from the USA

(2). Hamamatsu brand detector from Japan

(3). Interroll brand Roller from German

3. Protective cover on lead curtain to avoid lead pollution

4. Sound and light alarm

5. Local network supported


Key features:


  • Original Hamamatsu detectors, image quality, Omron electrical components.Enhance the overall quality
  • Global leading parameters: the inspection report issued by the Ministry of Public Security, shows that each parameter is ahead of other products, more details in the inspection report.
  • Energy-saving design: The machine can sense objects automatically,if there is luggage on the machine will be operating, if there is no luggage,it'll be quiet. (Optional)
  • A key shutdown control: simply rotate the key when clicking shutdown,safe shutdown automaticly ,reduce equipment failure.
  • Environmental-friendly Design: lead shade with protective film, prevent lead from hand contact, avoid lead pollution.
  • Strict quality internal control , double-check principles of engineering and production
  • Safeguard measures for machine parts
  • Through the testing by Ministry of public security and police use electronic product quality testing center
  • Through the EU CE certification
  • Through the ISO9001 quality management system certification
  • Through the ISO14001 environmental management system certification
  • Through the GB/T28001 occupation health and safety management system certification
  • Through thes provincial Environmental Protection Department of radiation safety certification
  • Through the provincial occupation health inspection center detection of radiation
  • Through the the people's Republic of China State Bureau of copyright of computer software copyright registration certificate
  • Double soft certification .




X-ray Generator
Ray Beam direction Bottom-illuminated
Tube current 0.4~0.5mA(adjustable)
Tube voltage 100-160 kV(adjustable)
Ray beam divergence angle 60°
The cooling / work cycle Sealed oil cooling / 100%
Image Processing System
X-ray sensor L-shaped photodiode array detector (C), 24bit depth
Monitor high resolution 19 inch LCD SamSung monitor
Color image display 24-bit true color display
Edge Enhancement the outline of objects will be more clear
Super Image Enhancement the details of the image are more clear
High penetration display improve image contrast in bright areas, so the easy penetrating area will be more clear
Low penetration display improve image contrast in dark areas, so the difficult penetrating area will be more clear
Magnifier local amplification function
Brighten / darken Increase/ decrease image brightness
Image pull back / front pull Show the top 20 images, and the current image can be any image processing
Image Restoration Restored to its original state
Image Storage Real-time save any image, any image can be processed arbitrarily ,continuous work to save


Environmental conditions:


Operating temperature / humidity 0℃~45℃/20%~95% (No condensation)
Storage temperature / humidity -20℃~60℃/20%~95% (No condensation)
Operating Voltage 220VAC(±10%) 50±3Hz
Power consumption 1.0KW(maximum)
Noise level <55dB (A)

 Technical parameters:


Technical Standards Technical Parameters
The channel size 500(W)×300(H)mm
Conveyor speed 0.22m/s
Load 20 kg
Resolution ∮0.0787 mm
Penetration ≥40 mm steel plate
Monitor Samsung 19in LCD Monitor

500G hard drive to save any image in real time, can store more than 100,000 and

can make any image processing, and continuous work to save.

Noise < 55dB(A)
Operating system windowsXP
Film Safety Safety to the ISO1600
Leaking radiation dose rate

Away from any device outer surface of 5cm, the ray irradiation leak rate should

be < 0.05µGy/H

Dimensions (L) 1750mm (W)750mm(H)1300mm
NW / GW 290 kg / 360 kg

Customs, port, prosecutors, prisons, railway stations, courts and other security units.
