Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking

China Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking supplier
Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking supplier Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking supplier Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking supplier

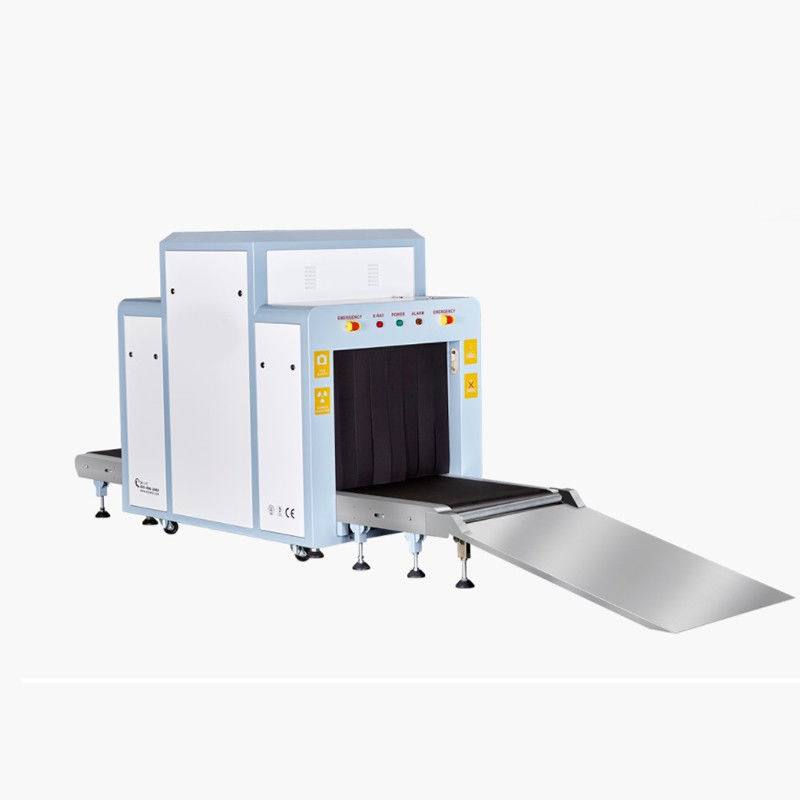

Large Image :  Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking

Product Details:

Place of Origin: Machine
Brand Name: vfinder
Certification: CE ISO
Model Number: VX10080

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: strong ploywooden case
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5sets /week
Contact Now
Detailed Product Description
Tunnel Size: 1000*800mm Application: Cargo And Luggage Inspection
Resolution: 38 AWG/40 AWG Operation Table: Two
Anode Voltag: 100-160KV Conveyor Speed: 0.22m/minute
Generator Direction: From Up To Down Name: Luggage Scanner Machine


Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking




1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss.
4. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eye:Could be expediently observing enlargement area.

6. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.




Tunnel Size: 1000(W)×800(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 200 kg
Single inspection dosage < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation <0.3µGY/H

Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods Sealed oil bath with forced air/100%


X-ray Sensor: L Type Photo-Diode array detector 12bit.

Monitor: High resolution 17inch color LCD display.

Color Quality: 24 Bit real colors.

Edge Enhancement: Object contour edge is more distinct.

Super Image Enhancement: Image detail is more distinct.

High penetrate strength display: Increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly.

Low Penetrate strength Display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly.

Magnifier: Function of partial enlargement

Brightness/Dimming: Increase brightness of image/decrease brightness of image.

Image recurrence: Display previous twenty image and process any one of them.

Image restoration: Restore image to initial status at the time of stopping conveyor

Image storing: Real Time store any image and process it in operation status.



Multi-energy color: Display organic material for orange, display inorganic material for blue, and display mixture for green.

High energy / low energy: switch to display two energy type, high energy stands for metal etc. low energy stands for nonmetallic.

Auxiliay function for drugs & explosives: Help to detect such dangerous material as drugs& explosives etc.

Audible & visible alarm: Give sound and visible signal when conforming to condition.



Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.5 KW (Max)
Noise: <65DB




Tunnel Size:

Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kgs
Dose per Inspection: <1.7μGy/h
Resolution: <0.101mm Metal Wire
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.1μGy/h (at a distance of 5cm From external housing)
Generate direct: dupward
Generate angle: 80 degree
Anode Voltage: 100-160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
X-ray Sensor: L-Shaped Photodiode Array (mono-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing:

Edge enhancement, image strengthening, image lightening,

reducing darkening, image returning, image retrieval.

Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom:

1-9 Image regions, 2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.8 KW (max), 0.3KW(working)
Noise: <58db


Colorful Image Luggage Scanning Machine / X Ray Security Scanner For Cargo Checking






Transport terminals,


Factories (to find needle in clothing, shoes, bags),
Military installations,

Schools ,

Convention centers,
Security checkpoints,

Special events location




Tunnel Dimension 1m(W) x 1m(H0 Approx



Verify Physically




Measure through measuring tape or a baggage of this dimension should be passed through the machine
Conveyor Speed 0.2m/s Verify Physically Make a marker on the middle of the belt ,then use the stopwatch test the minute distance then calculate the Second length
Conveyor Height 300 mm Verify Physically Through measuring tape
Max Load 200 Kg(evenly Distributed Verify Physically Put the load equivalent to 200 kg and let it pass through the mechine
Resolution 38 AWG/40 AWG Verify Physically You can cut one of the wire to check this
Steel Penetration 30/38 mm   Use an organic things put into a 30mm plate then screen it, try to see if can screen the organic product in orange color
X-ray leakages Less than 1µ Gy/hr (at a distance of 5cm from the housing), complying with all published international standards   Use a length 300mm,width300mm,height 75mm board to through the x ray machine ,Then watch the screen
Dose per inspection Less than 1 µ Sv   Physically by functioning machine

Film Safety


Guaranteed for high speed film up to ASA/ISP 1600   Use Use the ISO 1600 Film through
Anode Voltage 160 K.v. Electrical test method and Procedure.

160 kV

Operating at


Anode Current 1ma

Electrical test method and


Use Power meter
Cooling Sealed oil bath Test Method and Procedure.

Sealed Di-

Electric Oil

Bath with

Forced Air

Duty Cycle 100% Test Method and Procedure.

Rated for

100% Duty


X Ray Converter L Shaped detector Line   Physically by functioning machine
Image Processing 24 bits   Physically by functioning machine
Image Storage Capacity Up to 50,000 images   Physically by functioning machine
Image Display Color, Black& White, Multi energy, Multi absorptivity, inorganic stripping, Super enhancement, negative, high/low penetration   Observe the output
Region of interest(ROI) and Zoom Selectable image, zoom regions,-1-32 times continuous enlargement, 1-3 times local enlargement   Physically by functioning machine
Image Recall Preceding image recallable   Physically by functioning machine
Display Monitor 17” high resolution LCD   Physically by functioning machine
Standard Functions System menu, power on self test, dates/time display, luggage counter, certified number of operators, mains record. System On/Ray on timer, operating mode display, image storage   Physically by functioning machine
Optional Explosives/Drugs Detection, Sound Alarm, Light alarm, image pic up system(CIS)   Physically by functioning machine
Installation Data
Storage Temperature/Humidity

-40 ° C to + 60 ° C

5% ~95%(Non Condensing)


-40 ° C to + 60 ° C

5% ~95%

Operating temperature/Humidity

0 ° to + 40 °

5% ~95%(Non Condensing)


0 ° to + 40 °

5% ~95%

Power supply 110-240 VAC(+10% to 15% and 50 Hz/60 Hz (+/- 3 Hz) Functional 110-240 VAC(+10% to 15% and 50 Hz/60 Hz (+/- 3 Hz)
Power Consumption 1.0 KVA Functional 1.0 KVA
