Home > products > Food Metal Detector > Conveyor Metal Detector For Food Plastic Chemical Toy Industry Conveyor Belt Metal Detector

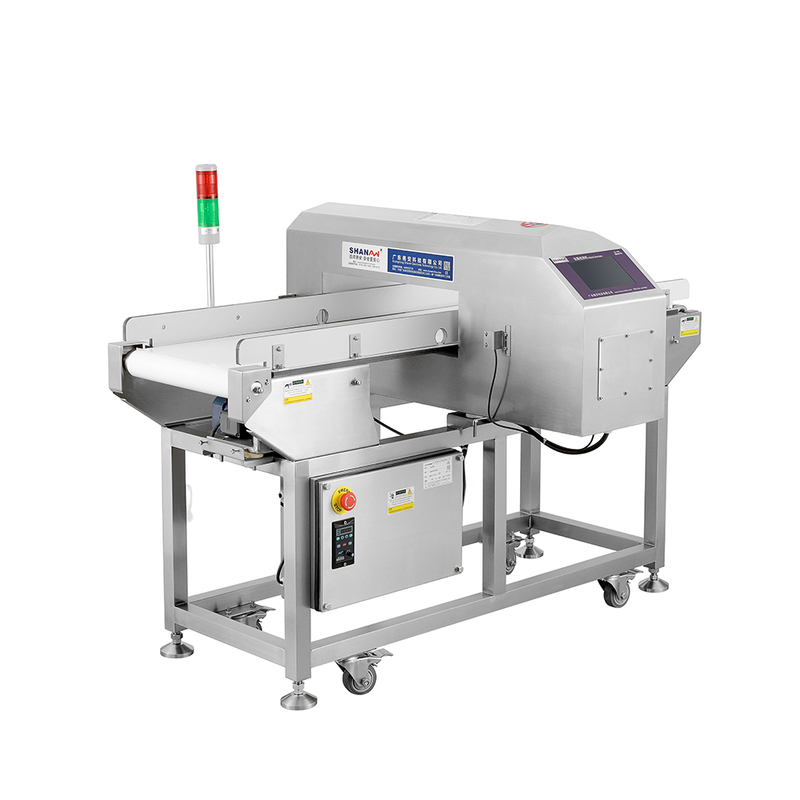

Conveyor Metal Detector For Food Plastic Chemical Toy Industry Conveyor Belt Metal Detector

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA-990

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

food metal detector

,

checkweigher

,

metal separator

Pulse Induction:
Pulse Induction
Search Mode:
All Metal
Warranty:
1 Years
Capacity:
10-50kg/h
Detection Accuracy:
≤2mm
Detection Range:
2-20mm
Frequency:
50Hz
Humidity:
≤90%
Material:
Stainless Steel
Power Consumption:
200W
Power Supply:
220V/50Hz
Product Name:
Tablet Metal Separator
Size:
1000*600*1200mm
Voltage:
220V
Weight:
200kg
Working Temperature:
0-50℃
Pulse Induction:
Pulse Induction
Search Mode:
All Metal
Warranty:
1 Years
Capacity:
10-50kg/h
Detection Accuracy:
≤2mm
Detection Range:
2-20mm
Frequency:
50Hz
Humidity:
≤90%
Material:
Stainless Steel
Power Consumption:
200W
Power Supply:
220V/50Hz
Product Name:
Tablet Metal Separator
Size:
1000*600*1200mm
Voltage:
220V
Weight:
200kg
Working Temperature:
0-50℃
Conveyor Metal Detector For Food Plastic Chemical Toy Industry Conveyor Belt Metal Detector
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector

The device can be used in food, pharmaceutical, chemical,textile and garment, toy industry and so on, which is authorized by HACCP(food industry), GMP(pharmaceutical industry), and it can be applied for cookies, sauces, dumpling, hum, soup, candy, meat, frozen food, salted food, fast food, bakery etc, and other industries that have special requirements on detection sensitivity, anti-interference, waterproof. Besides, it can detect broken needles, metals mixed with products.
Features:

1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.

6. Have self- learning study function, can automatically digitally learn and store product's features.Easy to operate without manual participation to adjust technical parameters.

7. It can store more than 100 kinds of testing data of products.

8. Automatic flap rejection system can improve production efficiency and save labor costs.

High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 0
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 1
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 2
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 3
Product Paramenters
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 4
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 5
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 6
High sensitivity metal detector Frozen food Metal detector Imported industrial food metal detector 7
Model
SA-990
Machine length (mm)
1330~2000 (can customize)
Detection tunnel width (mm)
200~1200 (can customize)
Detection tunnel height (mm)
50~1000 (can customize)
Standard detection sensitivity
FE(Φmm)
≥0.5
NON-FE(Φmm)
≥0.8
SUS304(Φmm)
≥1.0
Protection level
IP67
Number of memory products
200+ kinds
Display mode
Touch Screen
Operation mode
Touch button input
Alarm mode
Alarm stop, buzzer alarm or rejector device optional
Machine material
Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other standards
Conveyor belt material
Food grade PVC or PU belt
Machine weight
About 280KG
Motor
90~370W
Transfer speed
10-28m/min (optional and adjustable)
Power supply
AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
Belt height above the ground (mm)
700+100 (can customized)
Maximum load (single piece)
10~50KG (can customized)
Using environment
Temperature: -15℃~40℃, relative humidity: 30~85RP
