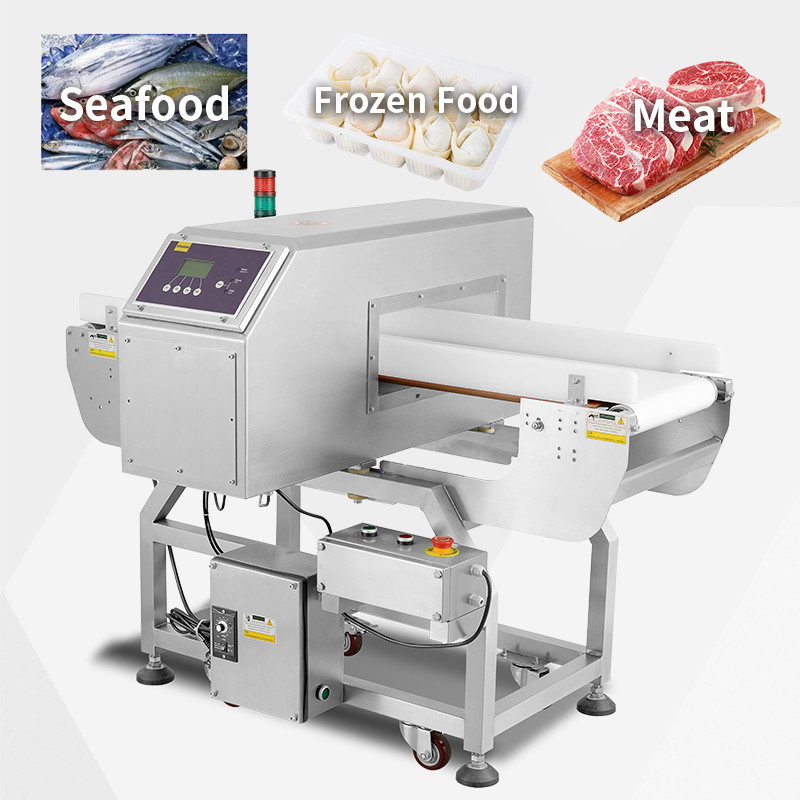

Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm

Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm
Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm

Large Image :  Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm

Product Details:
Place of Origin: Guangdong province, China
Brand Name: Shanan
Certification: CE; ISO-9001; ISO-14001
Model Number: VMF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociable
Packaging Details: Packed with strong wooden case
Delivery Time: 3-7 working days after confirming your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,
Supply Ability: 100 set / month
Detailed Product Description
Machine Type: Rectangular Suitable For: For Food
Machine Materials: Stainless Steel Alarm Method: Sound And Light Alarm
Rejection Systems Of Machine: Ways To Automatic Stop, Push Rod And Air Blast Could Be Customized Belt Speed During Running: 25-37M/MIN
Conveyor Belt: FAD Grade Belt Display Method: Button Key Control
Warranty: Twelth Months
High Light:

textile metal detector


metal detector machine


Stainless steel Food Metal Detector

Food Metal Detector Equipement Industrial Metal Detectors Conveyor


  • Sensitivity reference

The equipment must achieve following detais:


  • Sensitivity must be stable and require infrequent adjustment
  • Not reject good product or provide false positive results
  • Be capable of detecting metal in various orientations relative to the detection head
  • Be important to work with your equipment supplier in determining to and establishing these condictions. Sensitivity levels must be realistic and attainable and your supplier will be best placed to provide guidance.


  • Product Advantages:

1. Identify a variety of magnetic and non-magnetic metals like iron, stainless steel, aluminum, etc. even if the metal contained in the food products.


2. Adopt the-double-circuit signal detection make it high sensitible and strong anti-disturbance.


3. With the double circuit signal demonstration function: When the metal good is passing, the signal light will demonstrate different inductions according to the size of the metal objects.


4. With the adjustment function of products effect such as moist products and products including sugar or salt, they all can make the machine create a signal from metal, which is actually has no metal in it, so it gets wrong information from the products and affects the detection result. So it can reduce the products’ effect to get better detection result via using this machine with this function.


5. Get rid of missing detection. When there are several metal signals passing, the machine will automatically record the signal amount, therefore it won’t have miss detection results.


6. Control system: Controled by ADLINE microprocessor.


7. Conveyors: PU (polyurethane) or PVC food grade conveyor.


8. Special transport mechanism designed can maximize the sensitivity of metal detectors.


9. Flexible modular design can be customized according to different requirements .


10. Easy for workers to clean because of mirror stainless steel with open transport system. .


11. Conveyer belt meet FDA standards.


12. Meet the requirements of IFS and HACCP certificates. There are a variety of options to exclude institutions depending on the application.


Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm 0

Food Grade Conveyor Metal Detector Equipment With Sound And Light Alarm 1





VDF series in VFINDER


Detecting Height(mm)

100 120 150 200 250 300 350


Detecting Width(mm)


400 400 400 400 400 400 400


Belt length(mm)


1330 or customized diffrent sizes available


Standard detection sensitivity


Feф≥0.6 FeФ≥0.8 FeФ≥1.0 FeФ≥1.2 FeФ≥1.5 FeФ≥2.0 FeФ≥2.5
SUSф≥1.0 SUSФ≥1.2 SUSФ≥1.5 SUSФ≥2.5 SUSФ≥3.0 SUSФ≥3.5 SUSФ≥4.0
N-Feф≥1.2 N-FeФ≥1.5 N-FeФ≥1.0 N-FeФ≥2.5 N-FeФ≥3.0 N-FeФ≥3.5 N-FeФ≥4.0


Speed of conveyor belt


25-37 m/min constant could be customized to meet customers' needs


Load ability of machine


1-15 KG


Height from conveyor belt to ground


750 mm ± 50 mm (Customized available)


Weight of machine


280 kg or so


Ways to rejections


Sound alarm and light as well as belt stoped automaticaly; (Goods will be rejected when there is an automatic rejection system.)




High power motor inported from Tai Wan


Protection level


IP67/ IP54


Touch button input







Temperature : -18℃ - 45℃, relative humility 30-90% no condensing


Power supply


AC220V ± 10% or others could be customized met your needs



  • How do metal detection systems work?

Regarding Quality Assurance & Food Safety Magazine, all of general purpose non-ferrous metal detectors work in the same way:



1. The three coils are wound completely parallel on the non-metallic frame.


2. The center coil is connected to a high frequency radio transmitter.


3. Two transmission-receiving coils sit on either side of the center coil.


4. They receive the same signal and produce an identical, balanced output voltage because the two outer coils are identical and the exact same distance from the center.


5. When a particle of metal passes through the system:

The high-frequency field is disturbed beneath one coil, changing the voltage and disrupting the balance.


The output fluxes from zero, producing a signal alerting the system to the presence of metal.

Depending on the specifics of the system, a rejection mechanism is generally activated, with the ideal    result of removal of 100 percent of the metal and a minimum amount of salable product.



  • The key reasons of Metal Detectors for the Food Industry


Within the food production industry, there is perhaps no bigger contaminant material than metal. Due to its abundant use in all stages of food processing, the material is often found in the raw foodstuffs. It is essential that this is located and move before the packaging stage to guarantee the safety of consumers and the legitimacy of your company.



Metal detectors catering specifically to the food industry should be a compulsory piece of equipment for any area of food production, including baked goods, fruit and vegetables, dairy, fish, meat, cereals, beverages and more.

With the vegetable processing industry for example, the sheer range of products catering to a variety of vegetables means that here is always a risk of contamination from metal, through broken equipment or delivery.



There is also the risk of sabotage within food production, especially as a large percentage of product is imported overseas where rules and regulations are not necessarily as strict as within the United Kingdom. By having a metal detector, the risk of sabotaged food product reaching the consumer is greatly reduced.



  • The considerations on purchasing a metal detector:

Determine the types of metal that need to be tested. There are two main types of metals: ferrous and non-ferrous. The ferrous metal comes from iron. Non-ferrous metals are all others. Carefully inventory the types of metals that may eventually appear in your product.


What size of metal contaminants do you need to filter? For this problem, you need to be pragmatic and realistic, because if you specify too much sensitivity, you will get too many false alarms and vice versa.


Understand the operating environment and product characteristics - The operating environment includes temperature and whether water, dust or chemicals may come into contact with metal detectors and possible electric fields. In addition, is the product fresh or frozen, and the package is still exposed, scanned separately or in a box? All of these factors will be used to design the metal detector that best meets your needs.


Reject System Considerations - The most common way is to use a propeller or blower to transport metal detection products. However, you can save space by stopping the conveyor and starting the warning light. Further more, an optional lockable collection container prevents unauthorized employees from accessing rejected products.
