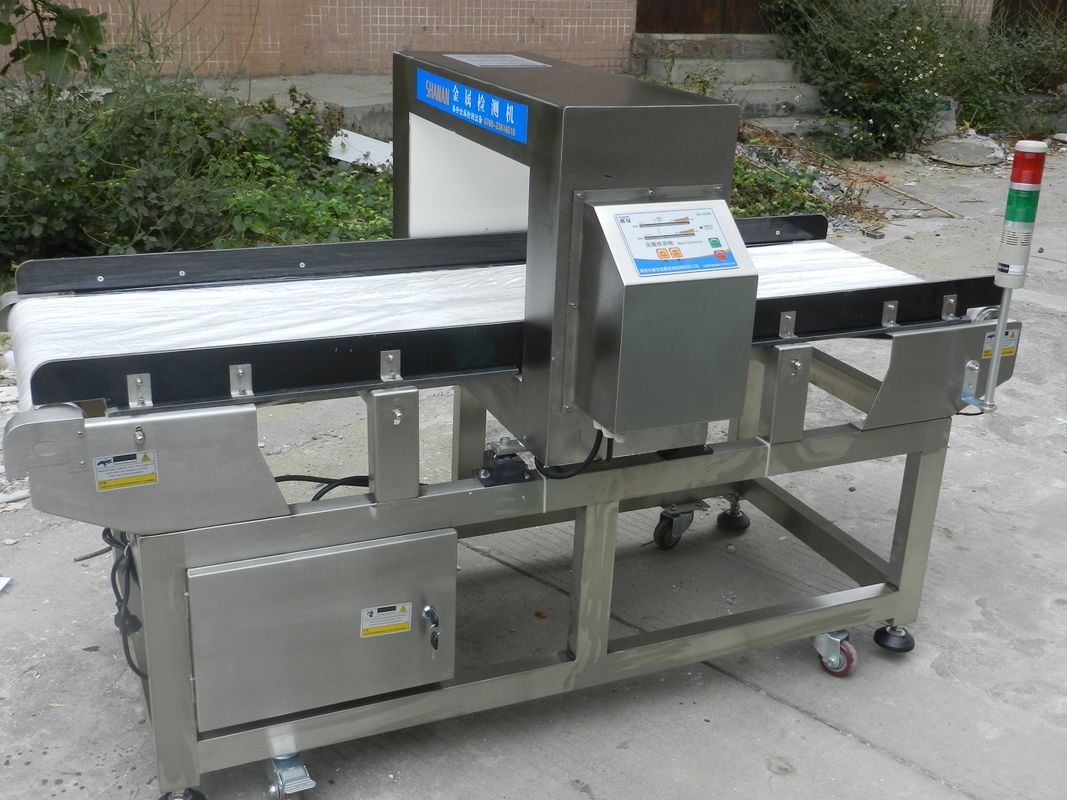

Stainless Steel Industrial Metal Detectors Modular Chain Conveyor

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

tunnel metal detector

,

metal detecting equipment

Material:
Stainless Steel
Connection Production Line:
Support
Reject Optional:
Push Rod And Flap Drop
Optional:
Digital Or Analogy Choose
Conveyor Belt:
Modular Chain Conveyor
Machine Structure:
Full Structure Takes Of Stainless 304
Warranty:
12 Months Warranty
Tunnel Size:
500mm(W)*120mm(H)
Certification:
CE
From:
China
Material:
Stainless Steel
Connection Production Line:
Support
Reject Optional:
Push Rod And Flap Drop
Optional:
Digital Or Analogy Choose
Conveyor Belt:
Modular Chain Conveyor
Machine Structure:
Full Structure Takes Of Stainless 304
Warranty:
12 Months Warranty
Tunnel Size:
500mm(W)*120mm(H)
Certification:
CE
From:
China
Stainless Steel Industrial Metal Detectors Modular Chain Conveyor

 Conveyor Metal Detector Food Safety / Medicine / Apparel Industry conveyor belt



About Shanan.pdf



Metal detector can be used in food, pharmaceutical, chemical,textile and garment, toy industry and so on, which is authorized by HACCP(food industry), GMP(pharmaceutical industry), and it can be applied for cookies, sauces, dumpling, hum, soup, candy, meat, frozen food, salted food, fast food, bakery etc, and other industries that have special requirements on detection sensitivity, anti-interference, waterproof. Besides, it can detect broken needles, metals mixed with products.



Features:

1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

5. Large D display with Chinese & English language and so on; Consumer can choose according to their needs.

6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.

7. It can store more than 100 kinds of testing data of products.

8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.



Application:



  • Food / Beverage
  • VMF series metal detector Devices are designed for use in the food and beverage industries. This includes not only food products, but also packaging and products that come into contact with foods and beverages.
  • Packaging
  • VMF series metal detector device are used in the packaging industry to detect metal in feed materials or packages.
  • Plastic / Rubber
  • VMF series metal detector Devices are suitable for use in plastic or rubber processing industries.
  • Recycling
  • VMF series metal detector Devices are used in the recycling industry to remove or sort bulk material.
  • Textiles
  • VMF series metal detector devices are designed for use in the textile industry
  • Logging / Wood
  • VMF series metal detector Devices are suitable for use in logging, saw mill or wood processing applications. Metal staples, nails and inclusions can destroy expensive saw blades and cutting tools.



Specification:



Model SA-990
Detected products Height 80 120 80 100 120 150 200
Detected products Width 300 300 400 400 400 400 400
Belt Width 250 250 350 350 350 350 350
Belt length 1500



Detector sensitivity

Feф0.5 FeФ0.8 FeФ0.6 FeФ0.7 FeФ0.8 FeФ0.8 FeФ1.0
SUSф1.0 SUSФ1.5 SUSФ1.0 SUSФ1.2 SUSФ1.5 SUSФ2.0 SUSФ2.3
N-Feф0.8 N-FeФ1.0 N-FeФ0.8 N-FeФ1.0 N-FeФ1.2 N-FeФ1.5 N-FeФ1.5
Speed of belt 27M/min (can adjust 5-40 M/min)
Load ability 20KG
Count 100
Reject Ways Sound and light alarm with belt stoped ;(when has auto-reject system ,belt continue and rejecting the goods )
Application Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment Temperature -10℃-40℃ ,relative humility 30-90%

Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 0Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 1Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 2Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 3Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 4Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 5Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 6Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 7Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 8Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 9Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 10Stainless Steel Industrial Metal Detectors Modular Chain Conveyor 11









Company information:



we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
