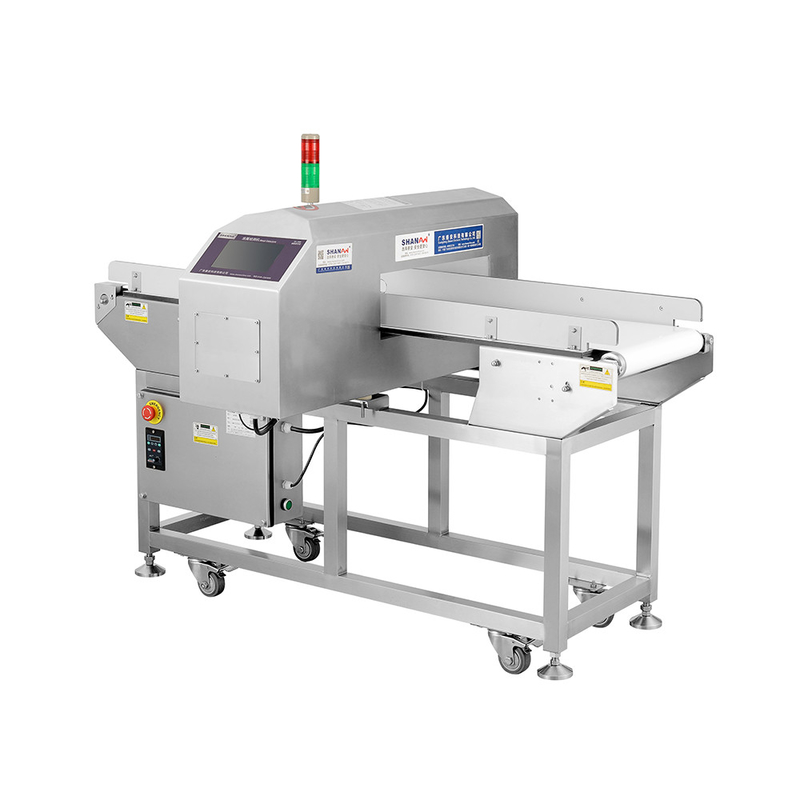

Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector

China Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector supplier
Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector supplier Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector supplier

Large Image :  Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector

Product Details:

Place of Origin: China
Brand Name: V Finder
Certification: CE; ISO
Model Number: VDF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negociable
Packaging Details: Packed with strong wooden case
Delivery Time: 3-7 working days after confirming your payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Machine Type: Conveyor Type Suitable For: Metal Objects Inspection
Machine Materials: 304 Stainless Steel Stucture Alarm Method: Sound And Light Alarm
Rejection: Automatically Stop, Push Rod And Air Blast Belt Speed During Running: 27-38 M/MIN
Conveyor Belt: FAD Display Method: Button Control, Not Touch Screen
Warranty: 12 Months

New Technology Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector





Machine specification






Detection Width

(mm)
400
300 customized

Detection Height
(mm)
100
120
150
200
250
300
350
400

Detection
Sensitivity

Fe(Φmm)
≥0.6
≥0.8
≥1.0
≥1.2
≥1.5
≥2.0
≥2.5
≥3.0
Non-Fe(Φmm)
≥1.0
≥1.2
≥1.5
≥2.5
≥3.0
≥3.5
≥4.0
≥4.5
304Sus(Φmm)
≥1.2
≥1.5
≥2.0
≥2.5
≥3.0
≥3.5
≥4.0
≥4.5
Alarm and rejector system
Automatic stop by alarm and sound or push rod or falling drop
Machine structure
Full structure takes of stainless 304
Machine size (mm)
L1520mm×W830mm×H1100mm
if customized it will according to customized size
Machine weight
Around 250KG if customized the weight will different
Voltage and power
220V 50Hz 90W
Load ability of belt
5-25KG
conveyor belt running speed:25-30m/min or customized various
Height of line
750mm±50mm can customized
Note :Normal size machine have stocks. Unnormal size machine have to customized





  • Tech informations
  •  Identify a variety of magnetic and non-magnetic metals like iron, stainless steel, aluminum, etc. even if the metal contained in the food products.
  •  Adopt the-double-circuit signal detection make it high sensitible and strong anti-disturbance.
  •  With the double circuit signal demonstration function: When the metal good is passing, the signal light will demonstrate different inductions according to the size of the metal objects.
  •  With the adjustment function of products effect such as moist products and products including sugar or salt, they all can make the machine create a signal from metal, which is actually has no metal in it, so it gets wrong information from the products and affects the detection result. So it can reduce the products’ effect to get better detection result via using this machine with this function.
  • Get rid of missing detection. When there are several metal signals passing, the machine will automatically record the signal amount, therefore it won’t have miss detection results.
  •  Control system: Controled by ADLINE microprocessor.
  •  Conveyors: PU (polyurethane) or PVC food grade conveyor.
  • Special transport mechanism designed can maximize the sensitivity of metal detectors.
  •  Flexible modular design can be customized according to different requirements .
  • Easy for workers to clean because of mirror stainless steel with open transport system. .
  • Conveyer belt meet FDA standards.
  •  Meet the requirements of IFS and HACCP certificates. There are a variety of options to exclude institutions depending on the application








Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector



Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector





Industrial Tunnel Metal Detector For Foods Sugar / Food Metal Detector



Our service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

Onsite Service:

1. Device installation;

2. Equipment Operation Test Technology training;

3. Equipment Calibration;

4. Daily maintenance and maintenance of equipment



Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)



Device Problem Handling:

1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service
