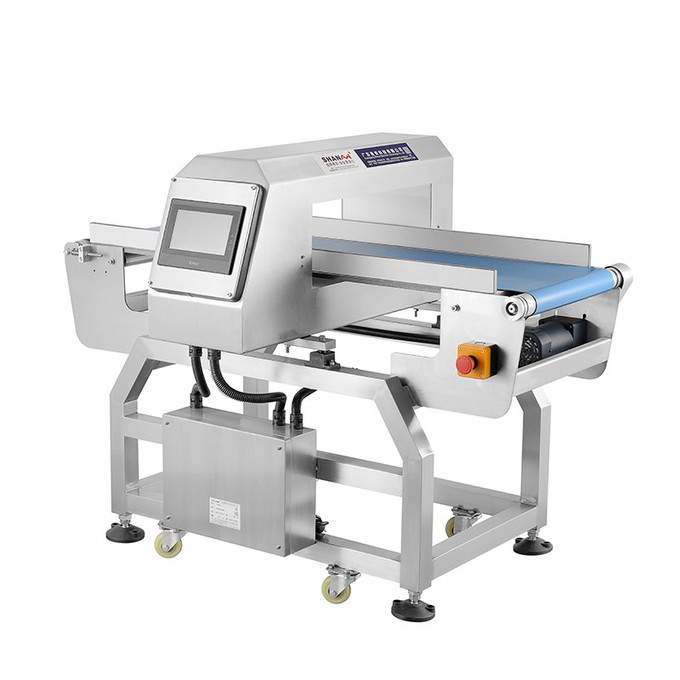

Small Tunnel Conveyor Metal Detector / Food Metal Detection Equipment

1. Main material is stainless steel , anti-erosion and long life span.
2. Eliminated the ferrous,non ferrous and stainless steel metal ingredient.
3. The conveyor belt is made of nonpoisonous materia.
4. Water-Proof, IP66 compliant.
5. Good Anti-interference function: reduce product effect signal.
6. The performance of the conveyor belt is complied with the American food sanitation standard (FDA),
7. it can be used for transporting the unpacked food directly.
8. Store about 100 product data, is suitable for a product line with volatile detecting products.
9. Can stably work for a long time, with a special design that is suitable for a harsh production environment
10. of strong vibration and high interference,and the equipment won’t miss alarm even when you tap the probe.
11. Siemens touch screen and control systems, high speed digital signal processing devices and intelligent
12. algorithms, which greatly improves the sensitivity and stability of the machine.

• Technical parameters

  1. Inspection window size:

  Normal height of inspection window(mm): 200

  Normal width of inspection window(mm): 400

  The measures of the inspection window which can be designed according customers requirement.

  Electrical source: 220V 50Hz
  Power : 120

  2. Alarm: Audible and visual alarm, automatic stop

  3. Normal Size (mm): (mm): 1600(L) X 900(W) X800(H)

  4. Gross Weight: approx 350Kgs Net Weight: Around 300kgs



Sensitivity Parameter list:

Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on

condition of different products being tested.

One year limited warranty(Labor and parts)

Features:

• Colorful D touch screen control, oscilloscope display function, to show the signal status of products and metal impurity more clearly and accurately
• Advanced technology of signal processing,adopts multiple(high/medium/low)frequencies technology, can select suitable frequency to do detection according to product's own characteristic
• With self-learning(product compensation adjustment function), the detector will automatically collect products information and recommend a suitable phase parameter for different products, so that the impact of product effect will be minimized to ensure reliable detection performance
• Except for Sus304, the machine can also reliably detect impurity of Sus316
• IP66 protection level, suitable for harsh working environment
• Friendly operation, flexible ways to make adjustments according to different requirement
• Scalable system, with high-end functions of extending/deriving/analyzing data records
