Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VIF-6012
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Voltage: |
110~ 220V, 50HZ |
Conveyor Belt Running Speed: |
35 M ~45 M/ Min Variable Speed |
Reject System: |
Alarm And Stop, Push Rod, Gas Blast, Fall Drop |
Height: |
700 Mm ± 50 Mm |
Conveyor Belt: |
Chain Link |
Frame: |
304 / 316 Stainless Steel |
Weight Range: |
10g-5000g |
Weight: |
300 Kg |
Voltage: |
110~ 220V, 50HZ |
Conveyor Belt Running Speed: |
35 M ~45 M/ Min Variable Speed |
Reject System: |
Alarm And Stop, Push Rod, Gas Blast, Fall Drop |
Height: |
700 Mm ± 50 Mm |
Conveyor Belt: |
Chain Link |
Frame: |
304 / 316 Stainless Steel |
Weight Range: |
10g-5000g |
Weight: |
300 Kg |

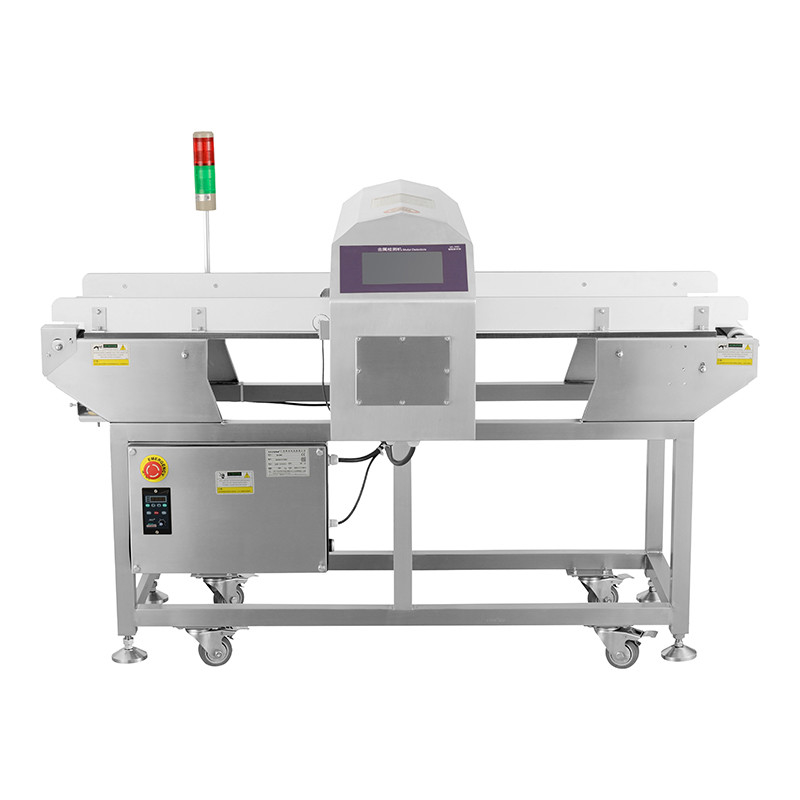

Aluminum Foil Packaging Conveyor Belt Metal Detector for Food Processing
We are offering Food Metal Detector.
Designed For Control Of Packaged & Unpackaged Goods.
Detection Theory : Balance Coil and Electromagnetic Induction.
According to HACCP& FDA Standards.
Designed to Detect : All ferrous, all non-ferrous & SS particles.
Technical Specs:
| Detecting method | Magnetic Induction |
| Detecting area | 400mm(W)×100mm-500mm(H) |
| Detecting ability | Fe 0.8mm-3.0mm , SUS304 1.5mm-5.0mm |
| Detecting adjustment | 10 level adjustment |
| Alarm | Buzzer and the belt stops |
| Belt Speed | 40m /min |
| Power Supply | 220V, 50Hz, Single phase |
| Rated Output | (appr)90W |
| Dimension | 1520(L) x 780(W) x 1000(H)mm |
| Weight | (approx.) 200kg |
Feature and Application:
1. Dual-loop circuit design, it could detect ferrous and non-ferrous, SUS, Cu, Al and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.
2. Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.
3. Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
4. Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
5. Can use with production line.
6. It is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc.
