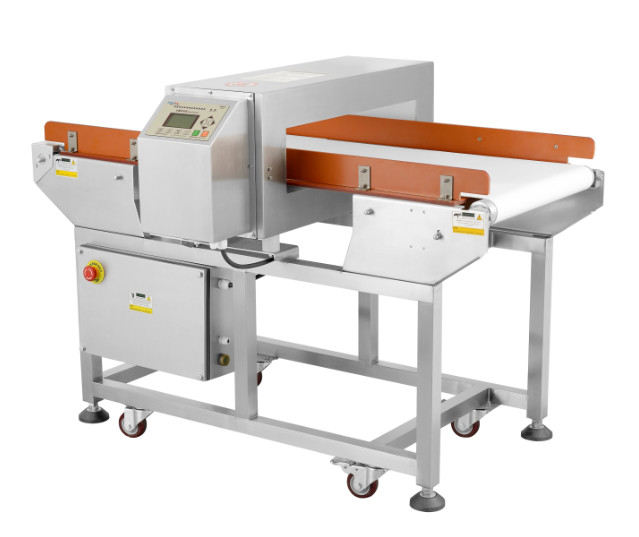

Touch Screen Food Metal Detector Metal Detection Machine With Statistical Counting Function

Name: Touch Screen Food Metal Detector Metal Detection Machine With Statistical Counting Function
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SR-001
Price: 2,450.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SR-001

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                food metal detector, checkweigher, metal separator


Touch Screen Food Metal Detector Metal Detection Machine With Statistical Counting Function

About Shanan Group.pdf

Applications

Designed for food, pharmaceutical, chemical, rubber, ice, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries to detect metal impurities in production processes or raw materials. Capable of detecting iron, non-magnetic metal items (silver, steel, aluminum, stainless steel and other non-ferrous metals), improving product safety factor and reducing hazards.

Product Features and Advantages

Advanced technology featuring imported multi-detection technology, phase and comprehensive analysis, and automatic balance correction technology
Enhanced detection sensitivity and stability with wider detection range
Superior performance for difficult-to-detect products like salt and high moisture content items with 2-3 times better detection sensitivity than similar products
Core circuit utilizes single-chip high-performance FPGA hardware solution with imported high-quality electronic components
Components sourced from leading manufacturers including Micro-chip, Analog Device, National Semiconductor, Wimma, Hitachi, NEC, Sanyo
Advanced processing technology and standardized inspection process ensure high sensitivity and stability

Technical Specifications

Parameter	Specifications
Pass Width (mm)	600 (Custom non-standard available)
Pass Height (mm)	80 \| 120 \| 150 \| 180 \| 200 \| 250 \| 300 \| 350 \| 400
Standard Detection Sensitivity FE(Φmm)	0.5 \| 0.6 \| 0.7 \| 0.8 \| 1.0 \| 1.2 \| 1.5 \| 2.0 \| 2.5
Standard Detection Sensitivity NON-FE(Φmm)	0.8 \| 1.0 \| 1.2 \| 1.5 \| 2.0 \| 2.5 \| 3.0 \| 3.5 \| 4.0
Standard Detection Sensitivity SUS304(Φmm)	1.0 \| 1.2 \| 1.5 \| 2.0 \| 2.5 \| 3.0 \| 3.5 \| 4.0 \| 4.5
Belt Width (mm)	370 \| 370 \| 370 \| 370 \| 470 \| 470 \| 470 \| 470 \| 470
Conveyor Length (mm)	1330 \| 1330 \| 1330 \| 1330 \| 1700 \| 1700 \| 1700 \| 1700 \| 1700
Height from Belt to Ground (mm)	650±50 (Customizable)
Protection Level	IP66
Number of Memory Products	100 kinds
Display Method	LED D (or custom touch screen)
Operation Method	Touch key input (touch optional)
Material of Conveyor Belt	Food grade plate chain
Alarm Method	Alarm shutdown, buzzer alarm or rejection mechanism optional
Belt Speed	28m/min constant (Variable speeds available with custom frequency conversion)
Machine Material	Entire rack made of SUS304 food grade stainless steel, compliant with HACCP, GMP, CAS standards
Mechanical Size (mm)	1330 × 980 × 1100 (length × width × height) - Non-standard customizable
Machine Weight	Approximately 300KG
