Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: SA-990-4010
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Name: |

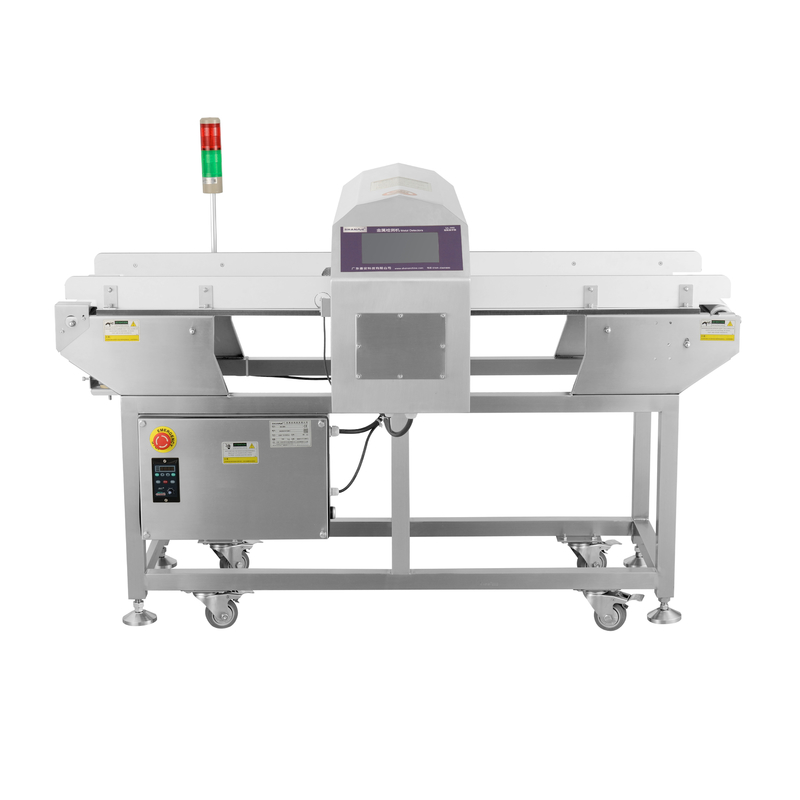

Automatic Metal Detector, Conveyor Metal Detector Food Processing Metal Detector |
Application: |
Food Metal Detector Conveyor Belt Metal Detector, To Detect Or Inspect All Kinds Of Metal In Raw Material, Inspect Foreign Substance |
Oprate Panel: |
Touch Screen |
Tunnel Size: |
W40xH10cm |
Belt Speed: |
25 Min, 0.83.5m/s, 20-25m/min |
Language: |
English, Spanish |
Sensitivity: |
High Sensitivity, Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm, 0.8mm Ferrous |
Power Supply: |
AC110V/220V/380V 50/60Hz, 220V, 50-60Hz, 110v/220v/380v, 110V/60hz 220V/50hz Food Grade Metal Detector |
Material: |
SUS304 Conveyor Belt Metal Detector |
Service Time: |
Lifelong |
Warranty: |
1 Year |
Name: |
Automatic Metal Detector, Conveyor Metal Detector Food Processing Metal Detector |
Application: |
Food Metal Detector Conveyor Belt Metal Detector, To Detect Or Inspect All Kinds Of Metal In Raw Material, Inspect Foreign Substance |
Oprate Panel: |
Touch Screen |
Tunnel Size: |
W40xH10cm |
Belt Speed: |
25 Min, 0.83.5m/s, 20-25m/min |
Language: |
English, Spanish |
Sensitivity: |
High Sensitivity, Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm, 0.8mm Ferrous |
Power Supply: |
AC110V/220V/380V 50/60Hz, 220V, 50-60Hz, 110v/220v/380v, 110V/60hz 220V/50hz Food Grade Metal Detector |
Material: |
SUS304 Conveyor Belt Metal Detector |
Service Time: |
Lifelong |
Warranty: |
1 Year |
Application: food, pharmaceutical, chemical, rubber, ice, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries to detect the metal impurities in the production process or raw materials, such as: iron, non-magnetic metal Items (silver, steel, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor and reduce hazards.
Advantages:
Advanced technology: the introduction of imported multi-detection technology, phase and comprehensive, product and automatic balance correction technology, the detection sensitivity and stability have been improved, the detection range is wider, especially for salt, high moisture content is difficult to detect The product has 2-3 times better detection sensitivity than similar products.
The core circuit adopts a single-chip high-performance FPGA hardware solution, using imported high-quality electronic components; [mainly selected by the United States Micro-chip, Analog Device, National Semiconductor, Wimma, Japan Hitachi, NEC, Sanyo and other companies to produce integrated circuits, capacitors, etc. Electronic components] After advanced processing technology and standardized inspection process, the product has high sensitivity and stable
The Confectionery and Snack Food segment includes food products such as chocolates, candy bars, sweets, jellies, gums, hard and chew candies, through to snack foods such as potato chips, crisps, ready to eat nuts, trail mix, savory snacks, energy and granola bars.
Some challenges found within this sector include:
| SA series | 3008 | 3012 | 4008 | 4010 | 4012 | 4015 | 4020 | 4025 | |
| 50 Through width(MM) | 300 | 300 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Passing height(MM) | 80 | 120 | 80 | 100 | 120 | 150 | 200 | 250 | |
| Belt width(MM) | 270 | 270 | 370 | 370 | 370 | 370 | 370 | 370 | |
| standard | FE(ΦMM) | 0.6 | 0.7 | 0.6 | 0.6 | 0.7 | 0.8 | 1 | 1.2 |
| Detection | NON-FE(ΦMM) | 0.8 | 1 | 0.8 | 1 | 1 | 1.2 | 1.5 | 1.8 |
| Sensitivity | SUS304(ΦMM) | 1 | 1.2 | 1 | 1.2 | 1.2 | 1.5 | 2 | 2.5 |
| conveyor length(MM) | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | 1500 | 1600 | |
| Belt height from the ground(MM) | 750±50 can customize | ||||||||
| protection level | IP67 | ||||||||
| Number of memory products | 100 kinds | ||||||||
| Operation method | Touch button input (touch optional) | ||||||||
| Conveyor belt material | food grade PVC belt(PU belt) | ||||||||
| Alarm mode | Alarm stop ,buzzer alarm or reject mechanism optional | ||||||||
| Belt speed | 28m/min | ||||||||
| Machine material | Carbon steel paint or stainless steel 304, fit for HACCP, GMP. CAS | ||||||||
| Machine weight | About 280KG | ||||||||
| Motor | Taiwan high-power motor can transport weight 1-15KG | ||||||||
| Power supply | AC220V±10% 50-60HZ (can be customized AC110V or 380V) other optional | ||||||||
| Using environment |
Temperature:-18~50°C , relative temperature:30-90°C |
||||||||
