Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: SA-990-4012
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Name: |

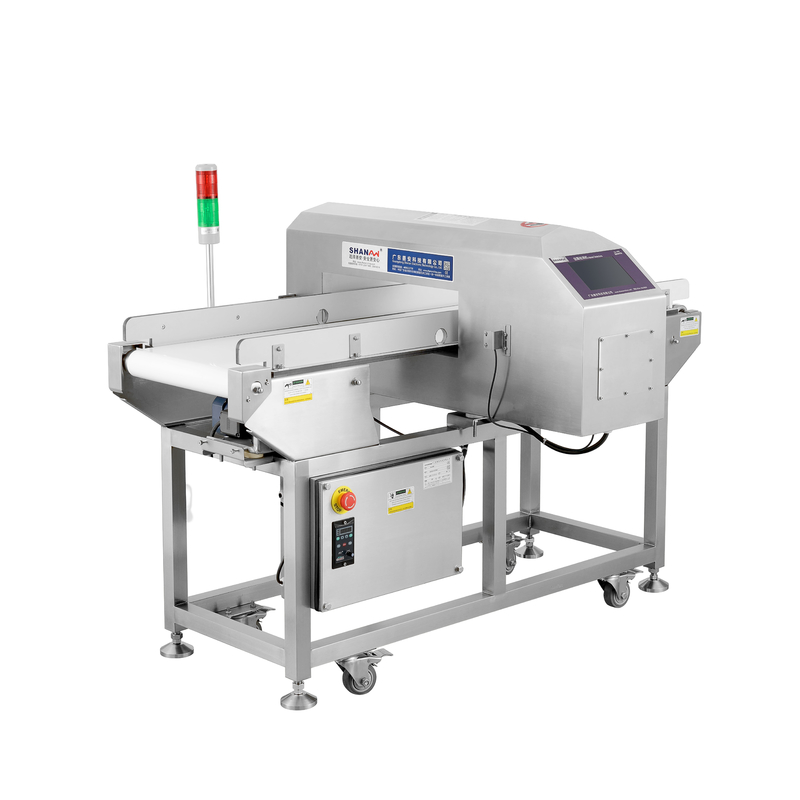

Industrial Metal Detector |
Application: |
Food Metal Detector ,Metal(Fe,industrial,food,Health Care Industry |
Oprate Panel: |
Touch Screen |
Tunnel Size: |
W40 X H10cm |
Belt Speed: |
25 Min, 0.83.5m/s, 20-25m/min |
Language: |
English, Spanish, Language Can Be Customized |
Sensitivity: |
High Sensitivity, Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm, 0.8mm Ferrous |
Power Supply: |
AC110V/220V/380V 50/60Hz, 220V, 50-60Hz, 110v/220v/380v, 110V/60hz 220V/50hz Food Grade Metal Detector |
Material: |
SUS304 Conveyor Belt Metal Detector |
Service Time: |
Lifelong |
Warranty: |
1 Year |
Name: |
Industrial Metal Detector |
Application: |
Food Metal Detector ,Metal(Fe,industrial,food,Health Care Industry |
Oprate Panel: |
Touch Screen |
Tunnel Size: |
W40 X H10cm |
Belt Speed: |
25 Min, 0.83.5m/s, 20-25m/min |
Language: |
English, Spanish, Language Can Be Customized |
Sensitivity: |
High Sensitivity, Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm, 0.8mm Ferrous |
Power Supply: |
AC110V/220V/380V 50/60Hz, 220V, 50-60Hz, 110v/220v/380v, 110V/60hz 220V/50hz Food Grade Metal Detector |
Material: |
SUS304 Conveyor Belt Metal Detector |
Service Time: |
Lifelong |
Warranty: |
1 Year |
Convenience Food | Food-to-Go
The Convenience Food / Food-to-Go sector covers a variety of highly processed and prepared foods, whether they are frozen, chilled, baked or unbaked. This includes products such as ready meals or ready-to-eat meals, soups, wraps, pizzas, burritos, pies, salads, sushi, sandwiches and sauces.
Some challenges found within this sector include:
Advantages:
Advanced technology: the introduction of imported multi-detection technology, phase and comprehensive, product and automatic balance correction technology, the detection sensitivity and stability have been improved, the detection range is wider, especially for salt, high moisture content is difficult to detect The product has 2-3 times better detection sensitivity than similar products.
The core circuit adopts a single-chip high-performance FPGA hardware solution, using imported high-quality electronic components; [mainly selected by the United States Micro-chip, Analog Device, National Semiconductor, Wimma, Japan Hitachi, NEC, Sanyo and other companies to produce integrated circuits, capacitors, etc. Electronic components] After advanced processing technology and standardized inspection process, the product has high sensitivity and stable
| SA series | 3008 | 3012 | 4008 | 4010 | 4012 | 4015 | 4020 | 4025 | |
| 50 Through width(MM) | 300 | 300 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Passing height(MM) | 80 | 120 | 80 | 100 | 120 | 150 | 200 | 250 | |
| Belt width(MM) | 270 | 270 | 370 | 370 | 370 | 370 | 370 | 370 | |
| standard | FE(ΦMM) | 0.6 | 0.7 | 0.6 | 0.6 | 0.7 | 0.8 | 1 | 1.2 |
| Detection | NON-FE(ΦMM) | 0.8 | 1 | 0.8 | 1 | 1 | 1.2 | 1.5 | 1.8 |
| Sensitivity | SUS304(ΦMM) | 1 | 1.2 | 1 | 1.2 | 1.2 | 1.5 | 2 | 2.5 |
| conveyor length(MM) | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | 1500 | 1600 | |
| Belt height from the ground(MM) | 750±50 can customize | ||||||||
| protection level | IP67 | ||||||||
| Number of memory products | 100 kinds | ||||||||
| Operation method | Touch button input (touch optional) | ||||||||
| Conveyor belt material | food grade PVC belt(PU belt) | ||||||||
| Alarm mode | Alarm stop ,buzzer alarm or reject mechanism optional | ||||||||
| Belt speed | 28m/min | ||||||||
| Machine material | Carbon steel paint or stainless steel 304, fit for HACCP, GMP. CAS | ||||||||
| Machine weight | About 280KG | ||||||||
| Motor | Taiwan high-power motor can transport weight 1-15KG | ||||||||
| Power supply | AC220V±10% 50-60HZ (can be customized AC110V or 380V) other optional | ||||||||
| Using environment |
Temperature:-18~50°C , relative temperature:30-90°C |
||||||||
