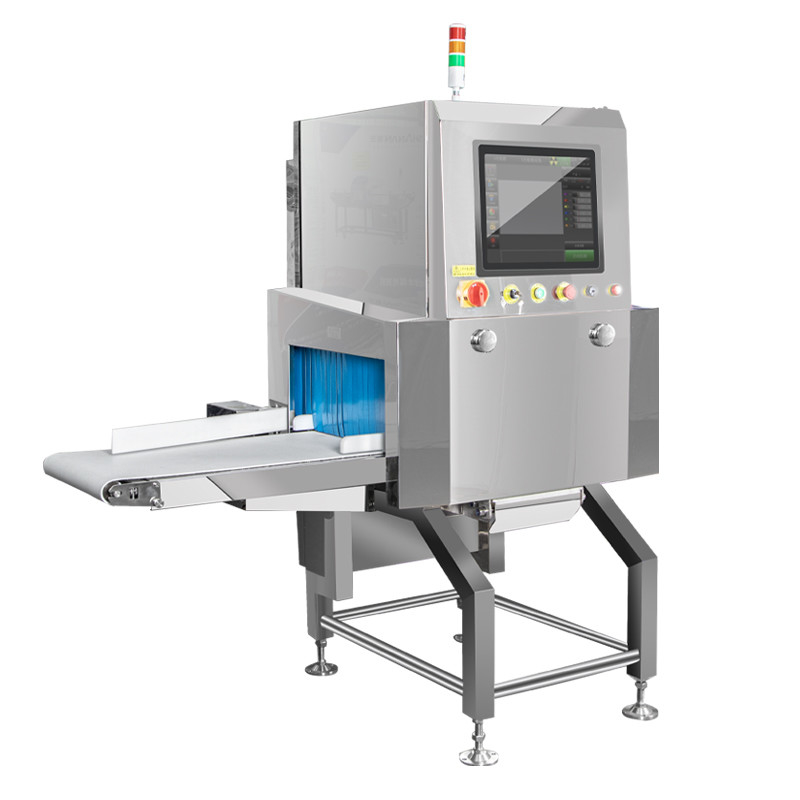

IP67 Food Metal Detector Machine , X Ray Food Machine For Canned Pet

Name: IP67 Food Metal Detector Machine , X Ray Food Machine For Canned Pet
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SAXR-4025
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SAXR-4025

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                IP67 Food Metal Detector Machine, SUS316 Food Metal Detector Machine, Canned Pet X Ray Food Machine


Product Name:	Food X-Ray Inspection Machine	Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 250mm	Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized	Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)	Detector Type:	Linear Scan
Protection Level:	IP67	Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation	Operation System:	Linux (Core 4.10)
Support Data Interface:	USB	Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316	Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control	Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning	Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)	Machine Weight:	360Kg

Product Name:	Food X-Ray Inspection Machine
Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 250mm
Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized
Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)
Detector Type:	Linear Scan
Protection Level:	IP67
Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation
Operation System:	Linux (Core 4.10)
Support Data Interface:	USB
Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316
Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning
Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
Machine Weight:	360Kg

IP67 Food Metal Detector Machine , X Ray Food Machine For Canned Pet

IP67 Food Metal Detector Machine & X-Ray Food Machine For Canned Pet

Download About Shanan Company Profile

X-ray Inspection for Wet and Dry Pet Food Products

Pet food faces similar contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.

Pet Food X-ray Applications

Ensure product conformity and completeness
Confirm accurate fill-levels (e.g., milk replacements for young animals)
Verify seals and lids are properly applied
Measure product mass for accurate weight verification
Identify foreign objects including metal, bone, glass, certain plastics, and other contaminants

Why Choose X-ray Over Metal Detection for Pet Food?

X-ray technology detects metal contaminants inside metal containers such as pet food tins and trays. Shanan x-ray inspection systems provide superior sophistication compared to metal detectors, enabling multiple inspection functions within one machine to improve product quality and detect contaminants like glass and stone that metal detectors cannot identify.

Why Choose a Shanan X-ray System?

Unrivalled speed, sensitivity, and detection sophistication
Adaptable ergonomic design
Automatic calibration and set-up
User-friendly interface and controls
Designed for quick and easy wash-down
Hygienic design meeting FMSA standards
Multiple reject options for production line integration
Easy integration into existing production lines
Customized x-ray inspection solutions for unique requirements

Advanced Detection Accuracy

Our systems match international brands in detection accuracy while offering simplified operator setup:

Automatic learning process handles complex products without technician intervention
Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
Self-learning completes with up to 10 images and 20-second algorithm model training

Reliability Through Technical Design

Industry-first server-level Linux system ensures stability and virus immunity
Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
Anti-condensation design for temperature variation environments
High-end components ensure stable operation in harsh conditions

User-Centric Operation Features

IP66 protection rating enables direct washing of detection channels
X-ray leakage meets US standards (<1μSv/h) with safety monitoring functions
Modular design allows production line upgrades without host replacement
5-second belt disassembly for convenient on-site cleaning
Automatic saving and export of product configurations and inspection images for analysis
