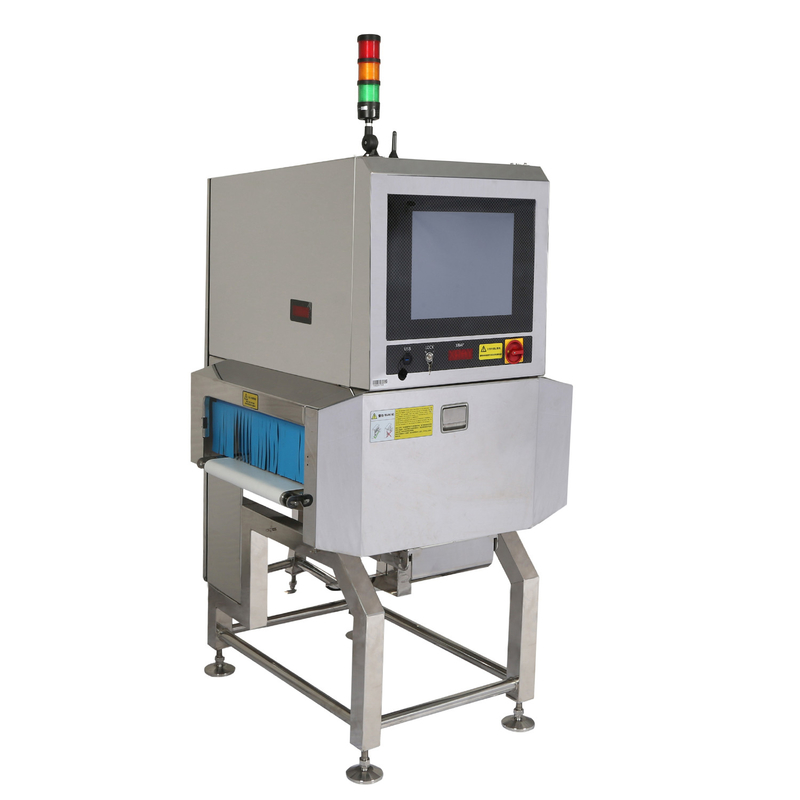

Pet Food SUS304 / SUS316 X Ray Inspection Equipment IP67 Protection Level

Name: Pet Food SUS304 / SUS316 X Ray Inspection Equipment IP67 Protection Level
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SAXR-3015
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SAXR-3015

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SUS304 X Ray Inspection Equipment, SUS316 X Ray Inspection Equipment, Food X Ray Machine IP67


Product Name:	Food X-Ray Inspection Machine	Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 150mm Or Customized	Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized	Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)	Detector Type:	Linear Scan
Protection Level:	IP67	Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation	Operation System:	Linux (Core 4.10)
Support Data Interface:	USB	Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316	Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control	Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning	Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)	Machine Weight:	360Kg

Product Name:	Food X-Ray Inspection Machine
Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 150mm Or Customized
Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized
Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)
Detector Type:	Linear Scan
Protection Level:	IP67
Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation
Operation System:	Linux (Core 4.10)
Support Data Interface:	USB
Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316
Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning
Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
Machine Weight:	360Kg

Pet Food SUS304 / SUS316 X Ray Inspection Equipment IP67 Protection Level

Pet Food SUS304 / SUS316 X-Ray Inspection Equipment IP67 Protection Level

Download About Shanan PDF

The pet food industry continues to expand, with projections reaching $30 billion by 2022. New competitors and brands are emerging across various segments including freshly prepared meals, delivery services, subscription models, grain-free options, raw diets, senior formulations, food toppers, and specialized products. While companies prioritize recipe development and marketing strategies, product inspection remains essential for maintaining brand reputation and consumer trust as products enter new markets or expand geographically.

Product inspection systems are crucial not only for protecting brand integrity but also for minimizing costly waste and product giveaways throughout the manufacturing process.

X-ray Inspection for Wet and Dry Pet Food Products

Pet food faces similar contamination risks as human food products. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose products.

Pet Food X-ray Applications

Ensure product conformity and completeness
Verify accurate fill levels (particularly for milk replacements for young animals)
Confirm proper seal and lid placement (including pouch seals and tin ring-pulls)
Measure product mass and verify weight accuracy for dry kibble
Identify foreign contaminants including metal, bone, glass, certain plastics, and other materials

Why Choose X-ray Over Metal Detection for Pet Food?

X-ray technology provides superior detection capabilities for metal contaminants within metal containers such as pet food tins and trays. Shanan x-ray inspection systems offer advanced functionality compared to metal detectors, enabling multiple inspection processes within a single machine. This comprehensive approach improves product quality and enhances detection of non-metallic contaminants like glass and stone that metal detectors cannot identify.

Why Choose a Shanan X-ray System?

Unmatched speed, sensitivity, and detection sophistication
Adaptable ergonomic design for various production environments
Automatic calibration and setup procedures
User-friendly interface and intuitive controls
Designed for quick and efficient wash-down procedures
Hygienic construction meeting FSMA standards
Multiple reject options compatible with your production line
Easy integration into existing production systems
Customized and bespoke x-ray inspection solutions for unique requirements

Our systems deliver detection accuracy comparable to international brands while maintaining operator-friendly setup procedures.

Advanced Algorithm Technology

Automatic learning process handles complex products without technical assistance
Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
Rapid model training completes in under 20 seconds using up to 10 sample images

Reliability-Focused Engineering Design

Industry-first server-level Linux system ensures stability and virus immunity
Fully sealed construction for humid environments with dual-layer thermal cycling for high-temperature operation
Anti-condensation design for temperature variation conditions
Premium components selected for reliable performance in demanding environments

User-Centric Operation Features

IP66 protection rating enables direct washing of detection channels
X-ray leakage meets US standards (under 1μSv/h externally) with integrated safety monitoring
Modular design allows production line upgrades without host replacement
5-second belt disassembly for convenient on-site cleaning and maintenance
Automatic configuration and inspection image saving with export capabilities for analysis
