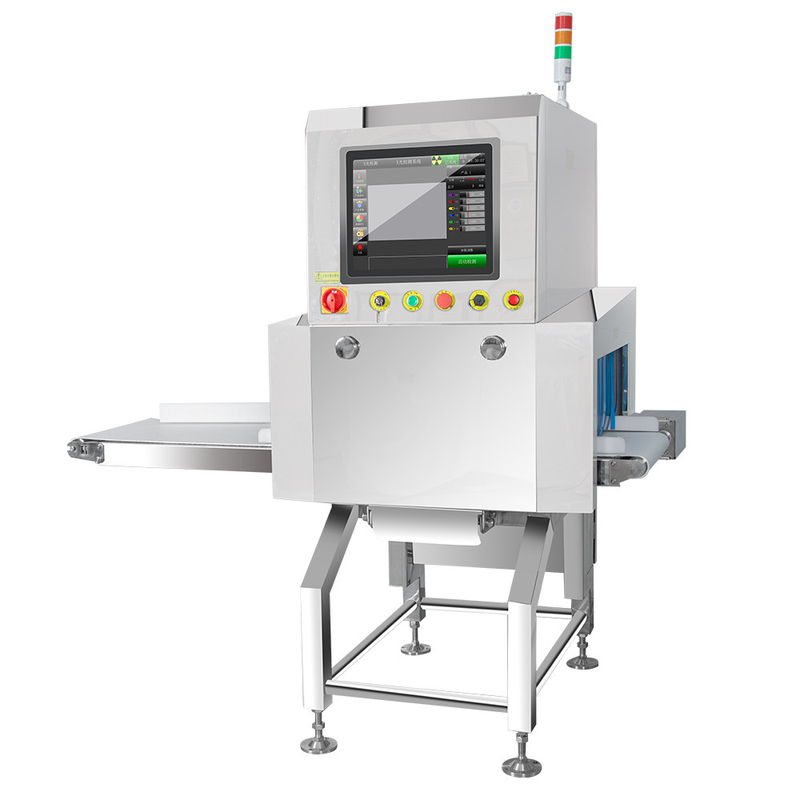

SUS304 / SUS316 Food X Ray Inspection Machine High Sensitivity For Nuts

Name: SUS304 / SUS316 Food X Ray Inspection Machine High Sensitivity For Nuts
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SAXR-4025
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SAXR-4025

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SUS316 Food X Ray Inspection Machine, Nuts Food X Ray Inspection Machine, SUS304 Food X Ray Machine


Product Name:	Food X-Ray Inspection Machine	Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	400mm X 250 Mm Or Customized	Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized	Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)	Detector Type:	Linear Scan
Protection Level:	IP67	Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation	Operation System:	Linux (Core 4.10)
Support Data Interface:	USB	Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316	Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control	Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning	Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)	Machine Weight:	360Kg

Product Name:	Food X-Ray Inspection Machine
Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	400mm X 250 Mm Or Customized
Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized
Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)
Detector Type:	Linear Scan
Protection Level:	IP67
Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation
Operation System:	Linux (Core 4.10)
Support Data Interface:	USB
Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316
Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning
Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
Machine Weight:	360Kg

SUS304 / SUS316 Food X Ray Inspection Machine High Sensitivity For Nuts

SUS304 / SUS316 Food X-Ray Inspection Machine High Sensitivity For Nuts

X-ray Inspection for Wet and Dry Pet Food Products

About Shanan Group.pdf

Wet pet food manufacturing requires consistent quality control to ensure healthy, tasty products. Incompletely sealed packages can contaminate machinery, disrupt production, and require manual sorting. When defective packages leave production facilities, they risk expensive returns, recalls, and brand reputation damage. Shanan Group addresses these challenges with 100% inline seal inspection systems to maintain seal quality.

Comprehensive Pet Food Inspection Solutions

Pet food faces similar contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.

Pet Food X-ray Applications

Ensure product conformity and completeness
Verify accurate fill levels (e.g., milk replacements for young animals)
Confirm proper seals and lids (pouches, ring-pulls on tins)
Measure product mass (dry kibble weight verification)
Identify foreign objects including metal, bone, glass, plastics, and other contaminants

X-ray vs. Metal Detection for Pet Food

X-ray technology detects metal contaminants inside metal containers like pet food tins and trays. Shanan x-ray systems provide superior sophistication compared to metal detectors, enabling multiple inspection functions in one machine. This enhances product quality and detects non-metallic contaminants like glass and stone that metal detectors cannot identify.

Shanan X-ray System Advantages

Unmatched speed, sensitivity, and detection sophistication
Adaptable ergonomic design
Automatic calibration and setup
User-friendly interface and controls
Quick and easy wash-down capability
Hygienic design meeting FMSA standards
Multiple reject options for production lines
Easy integration into existing production systems
Customized solutions for unique requirements

Our systems deliver detection accuracy comparable to international brands with simplified operator setup. Complex products can be configured through automatic learning processes without technical assistance.

Advanced Algorithm Platform

Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity. Self-learning completes with up to 10 images and 20-second model training.

Reliability Engineering

Industry-first server-level Linux system ensures stability and virus immunity. Fully sealed design handles humidity, dual thermal cycles manage high temperatures, and anti-condensation design addresses temperature variations. High-end components ensure performance in harsh environments.

User-Centric Operation

IP66-rated detection channel allows direct washing. X-ray leakage meets US standards (<1μSv/h externally) with safety monitoring. Modular design enables upgrades without host replacement.

Maintenance Efficiency

5-second belt disassembly for convenient cleaning. Automatic saving and export of product configurations and inspection images for analysis.
