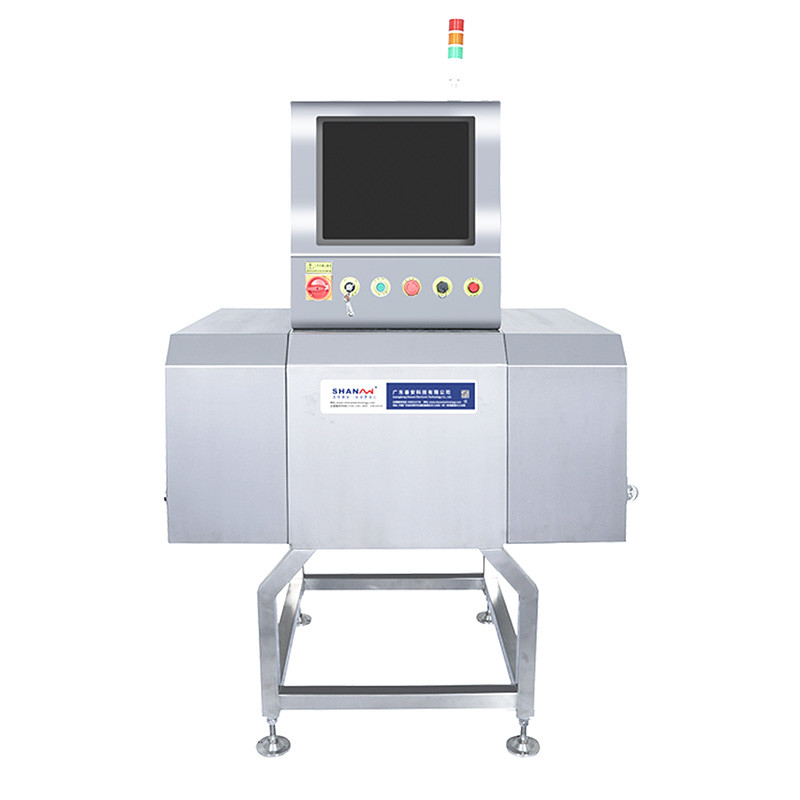

Food Processing X Ray Machines Convyor Belt Detector SUS304 / SUS316

Name: Food Processing X Ray Machines Convyor Belt Detector SUS304 / SUS316
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SAXR-5035
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SAXR-5035

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SUS304 Food X Ray Machines, IP67 Food X Ray Machine, SUS316 Food X Ray Machine


Product Name:	Food X-Ray Inspection Machine	Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 350mm	Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized	Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)	Detector Type:	Linear Scan
Protection Level:	IP67	Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation	Operation System:	Linux (Core 4.10)
Support Data Interface:	USB	Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316	Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control	Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning	Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)	Machine Weight:	380Kg

Product Name:	Food X-Ray Inspection Machine
Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 350mm
Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized
Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)
Detector Type:	Linear Scan
Protection Level:	IP67
Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation
Operation System:	Linux (Core 4.10)
Support Data Interface:	USB
Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316
Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning
Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
Machine Weight:	380Kg

Food Processing X Ray Machines Convyor Belt Detector SUS304 / SUS316

Food Processing X-Ray Machines Conveyor Belt Detector SUS304 / SUS316

Advanced x-ray inspection systems designed for comprehensive quality control in pet food production facilities.

Download About Shanan Group PDF

X-ray Inspection for Wet and Dry Pet Food Products

Pet food faces similar contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.

Pet Food X-ray Applications

Ensure product conformity and completeness
Confirm accurate fill-levels (e.g., milk replacements for young animals)
Verify seals and lids are correct (e.g., pouch seals and tin ring-pulls)
Measure product mass (e.g., ensure accurate weight of dry kibble)
Identify foreign objects including metal, bone, glass, certain plastics, and other contaminants

Why Choose X-ray Over Metal Detection for Pet Food?

X-ray technology detects metal contaminants inside metal containers such as pet food tins and trays. Shanan x-ray inspection systems provide superior sophistication compared to metal detectors, enabling multiple inspection functions within a single machine to improve product quality and detect contaminants like glass and stone that metal detectors cannot identify.

Why Choose a Shanan X-ray System?

Unrivalled speed, sensitivity, and detection sophistication
Adaptable ergonomic design
Automatic calibration and set-up
User-friendly interface and controls
Designed for quick and easy wash-down
Hygienic design meeting FMSA standards
Multiple reject options for production line integration
Easy integration into existing production lines
Customized and bespoke x-ray inspection solutions available

Advanced Detection Technology

Our systems deliver detection accuracy comparable to international brands with operator-friendly setup capabilities.

Automatic learning process handles complex products without technician intervention
Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
Self-learning completes with up to 10 images and 20-second algorithm model training

Reliability-Focused Technical Design

Industry-first server-level Linux system ensures stability and virus immunity
Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
Anti-condensation design for temperature differential environments
High-end components ensure stable operation in harsh industrial conditions

User-Centric Operation Features

IP66 protection level enables direct washing of detection channels
X-ray leakage meets US standards (<1μSv/h outside equipment) with safety monitoring
Modular design allows upgrades without host replacement
5-second belt disassembly for convenient on-site cleaning
Automatic saving and export of product configurations and inspection images for analysis
