Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: SA-500
Document: Checkweigher.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Product Name: |

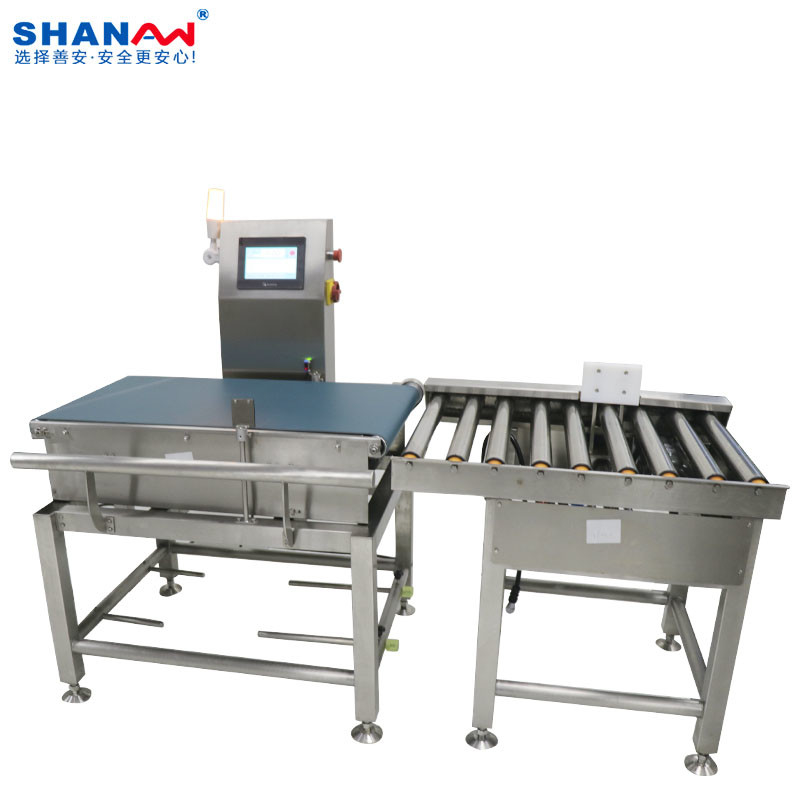

Accuracy Conveyor Belt Weigher Weight Checker Machine |
Type: |
Conveyor Scale |
Display: |
Touch Screen |
Weighing Range: |
10-1000 Grams |
Speed: |
80-150piece/min |
Function: |
Strong Self Diagnosis Function, Weighing, Auto Weight Checking And Rejector, Weight Function |
Accuracy: |
High |
Calibration: |
Automatic |
Capacity: |
Large |
Connectivity: |
Multiple |
Data_storage: |
Integrated |
Data_transfer: |
Wireless |
Durability: |
Long |
Maintenance: |
Easy |
Measurement: |
Precise |
Operation: |
Automatic |
Safety: |
High |
Software: |
Advanced |
Speed: |
Fast |
Weight_range: |
Wide |
Product Name: |
Accuracy Conveyor Belt Weigher Weight Checker Machine |
Type: |
Conveyor Scale |
Display: |
Touch Screen |
Weighing Range: |
10-1000 Grams |
Speed: |
80-150piece/min |
Function: |
Strong Self Diagnosis Function, Weighing, Auto Weight Checking And Rejector, Weight Function |
Accuracy: |
High |
Calibration: |
Automatic |
Capacity: |
Large |
Connectivity: |
Multiple |
Data_storage: |
Integrated |
Data_transfer: |
Wireless |
Durability: |
Long |
Maintenance: |
Easy |
Measurement: |
Precise |
Operation: |
Automatic |
Safety: |
High |
Software: |
Advanced |
Speed: |
Fast |
Weight_range: |
Wide |
What is a checkweigher scale and Why Use a Belt conveyor Checkweigher?
Checkweighers prevent the under filling and overfilling of product, resulting in brand protection and cost reduction due to less product giveaway. Other advantages include simple and intuitive operation of the machines leading to short familiarization periods and trouble-free usage.
Application: It can be widely used in food, pharmaceutical, daily chemical, chemical, battery, hardware accessories, electronics, plastic and other industries.
Advantage:
Tech Parameter
| model | SA-500 |
| power supply | AC220V±10% 50HZ(60HZ) |
| rated power | 0.4KW |
| Single weighing range | ≤3000g |
| Weighing accuracy range | ±0.5g~±2g |
| Minimum scale | 0.1g |
| transfer speed | 30～90m/min |
| Maximum speed | 80 pcs/min |
| Weighing material size | ≤300mm(L)*290mm(W) |
| Weighing conveyor belt size | 450mm(L)*300mm(W) |
| Product Size | 1800mm(L)*722mm(W)*1270mm(H) |
| Elimination method | Pusher/pendulum |
| Control System | High speed A/D sampling controller |
| Preset product number | 2000pc |
| Operation direction | Facing the machine, left to right |
| External air supply | 0.6-1Mpa |
| Pneumatic interface | Φ8mm |
| working environment | Temperature: 0℃～40℃,Humidity:30%～95% |
| Body material | SUS304 |
