Model
|
SA-990
|
|
Machine length (mm)
|
1330~2000 (can customize)
|
|
Detection tunnel width (mm)
|
200~1200 (can customize)
|
|
Detection tunnel height (mm)
|
50~1000 (can customize)
|
Standard detection sensitivity
|
FE(Φmm)
|
≥0.5
|
|
NON-FE(Φmm)
|
≥0.8
|
|
SUS304(Φmm)
|
≥1.0
|
|
Protection level
|
IP67
|
|
Number of memory products
|
200+ kinds
|
|
Display mode
|
Touch Screen
|
|
Operation mode
|
Touch button input
|
|
Alarm mode
|
Alarm stop, buzzer alarm or rejector device optional
|
|
Machine material
|
Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other standards
|
|
Conveyor belt material
|
Food grade PVC or PU belt
|
|
Machine weight
|
About 280KG
|
|
Motor
|
90~370W
|
|
Transfer speed
|
10-28m/min (optional and adjustable)
|
|
Power supply
|
AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
|
|
Belt height above the ground (mm)
|
700+100 (can customized)
|
|
Maximum load (single piece)
|
10~50KG (can customized)
|
|
Using environment
|
Temperature: -15℃~40℃, relative humidity: 30~85RP
|
Applications:

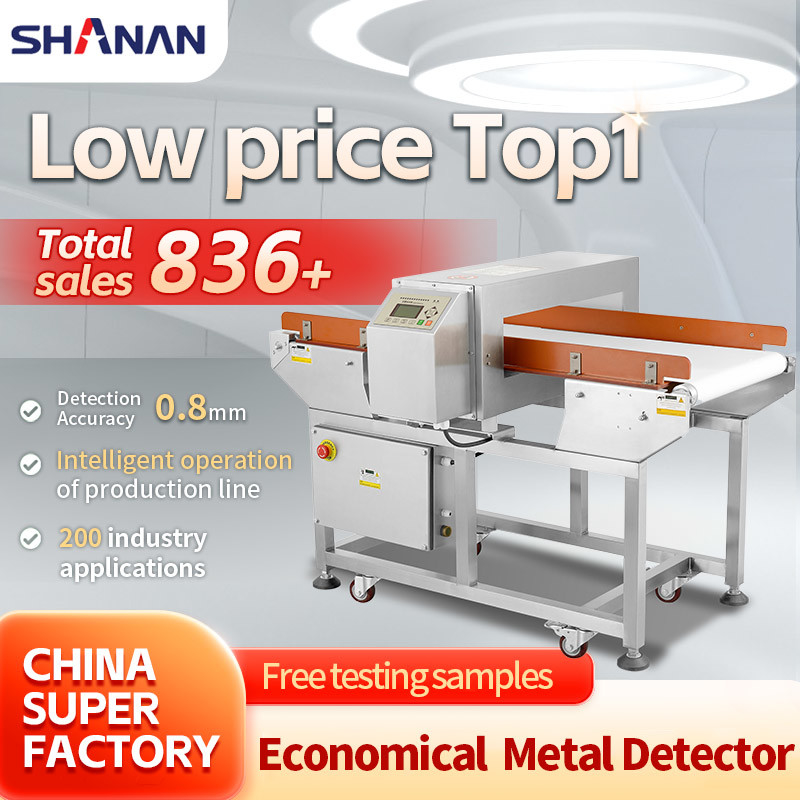

The SHANAN Conveyor Metal Detector is ideal for use in food processing factories, ensuring that any ferrous metal particles are detected and eliminated before they can contaminate products. It is also suitable for use in pharmaceutical factories, where the detection of metal particles is crucial to maintaining product quality and safety.
This Conveyor Belt Ferrous Metal Detector is also perfect for use in recycling plants, ensuring that no metal contaminants are present in the final product. Additionally, it can be used in airports and other security settings to detect metal objects in baggage and other items.
With a conveying speed of 24m/min (50Hz) or 32m/min (60Hz), the SHANAN Conveyor Metal Detector is efficient and effective in a variety of scenarios. Whether you need to ensure the safety and quality of your food products, eliminate metal contaminants in recycling processes, or maintain security in public places, this conveyor belt detector is a reliable and durable solution.
Customization:
Support and Services:
The Conveyor Metal Detector product is designed to detect metal contaminants in conveyed products. We offer comprehensive technical support and services for this product, including:
- Installation and setup assistance
- Training for operators and maintenance personnel
- Regular maintenance and calibration services
- Replacement parts and repairs
- 24/7 technical support for urgent issues
Our team of experts is dedicated to ensuring that your Conveyor Metal Detector operates at peak performance, minimizing downtime and maximizing productivity. Contact us for more information on our support and service offerings.
Packing and Shipping:
Product Packaging:
- All components of the Conveyor Metal Detector will be securely packaged in a sturdy cardboard box to prevent any damage during transit.
- The packaging will include foam inserts to provide additional cushion and protection for the metal detector.
- The box will be labeled with the product name, model number, and handling instructions for the carrier.
Shipping:
- The Conveyor Metal Detector will be shipped via a reputable carrier service to ensure timely and safe delivery.
- The shipping cost will be calculated based on the destination and weight of the package.
- The customer will receive a tracking number once the package has been shipped, allowing them to track the delivery status online.
- The estimated delivery time will depend on the destination and shipping method selected by the customer.
- International customers may be responsible for customs fees and import taxes, which will be determined by the destination country.
