SACW-300 Automatic Check Weigher With Easy Integration In Production Lines

Name: SACW-300 Automatic Check Weigher With Easy Integration In Production Lines
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-400
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA-400

Document: Checkweigher.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Easy Integration Automatic Check Weigher, Production Lines Automatic Check Weigher, Production Lines auto check weigher


Product Name:	Accuracy Conveyor Belt Weigher Weight Checker Machine	Type:	Conveyor Scale
Display:	Touch Screen	Weighing Range:	10-1000 Grams
Speed:	80-150piece/min	Function:	Strong Self Diagnosis Function, Weighing, Auto Weight Checking And Rejector, Weight Function
Scale Interval:	0.05g	Screen:	8 Inch Full Touch Screen
Exposure Time:	0.2-4sec,0.10 ~ 1.80 S,0.1-6.3s	Safety:	High
Load:	≤ 100 Kgs	Reject Optional:	Push Rod And Flap Drop
Language:	English, Chinese	Instrument Classification:	Class II,Class I,Class III
Power:	110/220V 50-60HZ	Reject System:	Air Blast, Pusher, Drop, Belt Stop
Vertical High:	750±50MM (can Customized )	Tube Voltage:	70KV,60kVp
Display Type:	D Display	Product Size:	200mm (L) 150mm (W)
Humidity Range:	Wide Range

Product Name:	Accuracy Conveyor Belt Weigher Weight Checker Machine
Type:	Conveyor Scale
Display:	Touch Screen
Weighing Range:	10-1000 Grams
Speed:	80-150piece/min
Function:	Strong Self Diagnosis Function, Weighing, Auto Weight Checking And Rejector, Weight Function
Scale Interval:	0.05g
Screen:	8 Inch Full Touch Screen
Exposure Time:	0.2-4sec,0.10 ~ 1.80 S,0.1-6.3s
Safety:	High
Load:	≤ 100 Kgs
Reject Optional:	Push Rod And Flap Drop
Language:	English, Chinese
Instrument Classification:	Class II,Class I,Class III
Power:	110/220V 50-60HZ
Reject System:	Air Blast, Pusher, Drop, Belt Stop
Vertical High:	750±50MM (can Customized )
Tube Voltage:	70KV,60kVp
Display Type:	D Display
Product Size:	200mm (L) 150mm (W)
Humidity Range:	Wide Range

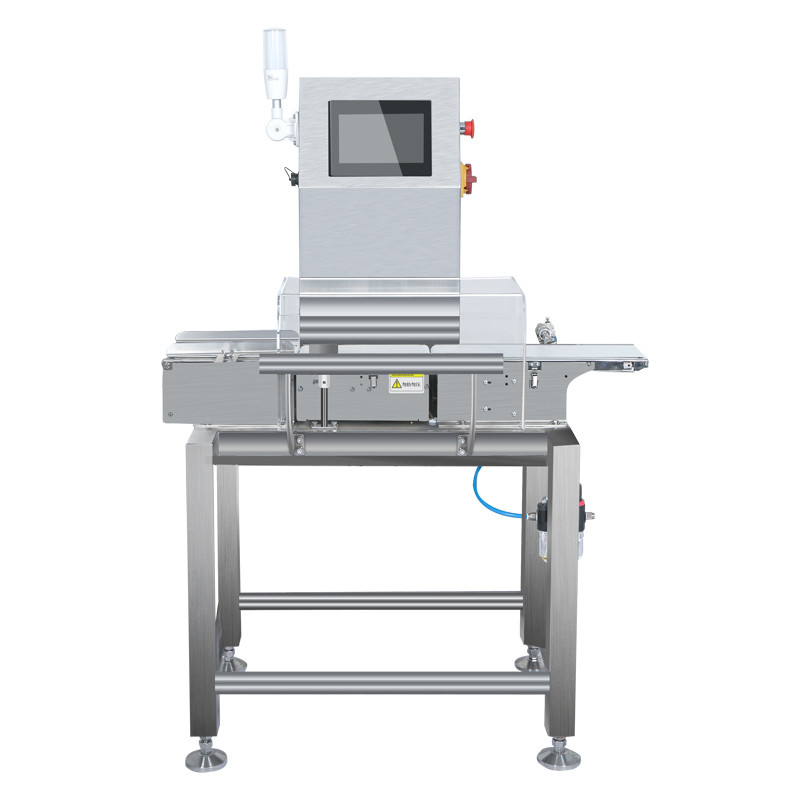

SACW-300 Automatic Check Weigher With Easy Integration In Production Lines

About Shanan Company Profile

What is a Checkweigher Scale and Why Use a Belt Conveyor Checkweigher?

Checkweighers prevent underfilling and overfilling of products, resulting in brand protection and cost reduction due to less product giveaway. Other advantages include simple and intuitive operation of the machines leading to short familiarization periods and trouble-free usage.

Applications

This checkweigher can be widely used in food, pharmaceutical, daily chemical, chemical, battery, hardware accessories, electronics, plastic and other industries.

Key Advantages

Entire machine in stainless steel housing with infeed, weighing, and outfeed belts
Sorting device by means of blowing nozzle or mechanical pusher
Maintenance free servo drives
Memory of 2000 product parameters
Easy, tool-free exchange of conveyors
Flexible integration in production lines

Technical Parameters

Parameter	Specification
Model	SA-300
Power Supply	AC220V±10% 50HZ(60HZ)
Rated Power	0.4KW
Single Weighing Range	≤3000g
Weighing Accuracy Range	±0.5g~±2g
Minimum Scale	0.1g
Transfer Speed	30～90m/min
Maximum Speed	80 pcs/min
Weighing Material Size	≤300mm(L)*290mm(W)
Weighing Conveyor Belt Size	450mm(L)*300mm(W)
Product Size	1800mm(L)722mm(W)1270mm(H)
Elimination Method	Pusher/pendulum
Control System	High speed A/D sampling controller
Preset Product Number	2000pc
Operation Direction	Facing the machine, left to right
External Air Supply	0.6-1Mpa
Pneumatic Interface	Φ8mm
Working Environment	Temperature: 0℃～40℃, Humidity: 30%～95%
Body Material	SUS304
