Advanced Metal Detection Equipment for Food Safety
Applications
Suitable for food, pharmaceutical, chemical, rubber, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries. Detects metal impurities in production processes or raw materials including iron, non-magnetic metals (silver, steel, aluminum, stainless steel and other non-ferrous metals). Enhances product safety and reduces hazards.
Technical Advantages
- Advanced imported multi-detection technology with phase and comprehensive analysis
- Automatic balance correction technology for improved sensitivity and stability
- Wider detection range with 2-3 times better sensitivity for difficult products like salt and high-moisture content items
- Core circuit uses single-chip high-performance FPGA hardware with imported electronic components
- Components sourced from leading manufacturers including Micro-chip, Analog Device, National Semiconductor, Wimma, Hitachi, NEC, Sanyo
- Advanced processing technology and standardized inspection processes ensure high sensitivity and stability
Confectionery & Snack Foods Applications
Specialized detection for chocolates, candy bars, sweets, jellies, gums, hard and chew candies, potato chips, crisps, ready-to-eat nuts, trail mix, savory snacks, energy and granola bars.
Industry Challenges
- Extensive processing increases risk of stainless steel contamination from equipment failure
- Warm, sticky, and dusty environments requiring frequent cleaning of machines and conveyors
- Metalized film and foil packaging making conventional detection difficult
- Product integrity issues during production (cracking, missing coatings, missing items)
- Temperature variations affecting metal detection signals
- Multiple ingredients creating density challenges for x-ray systems

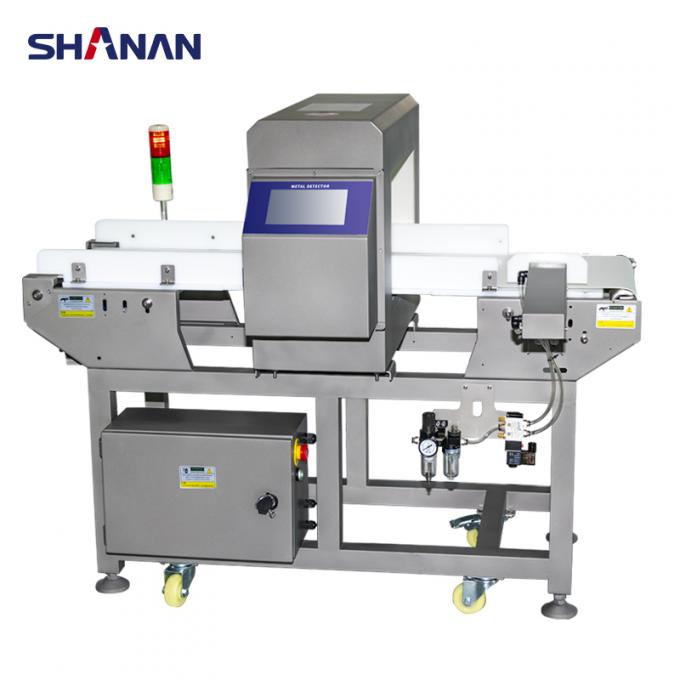

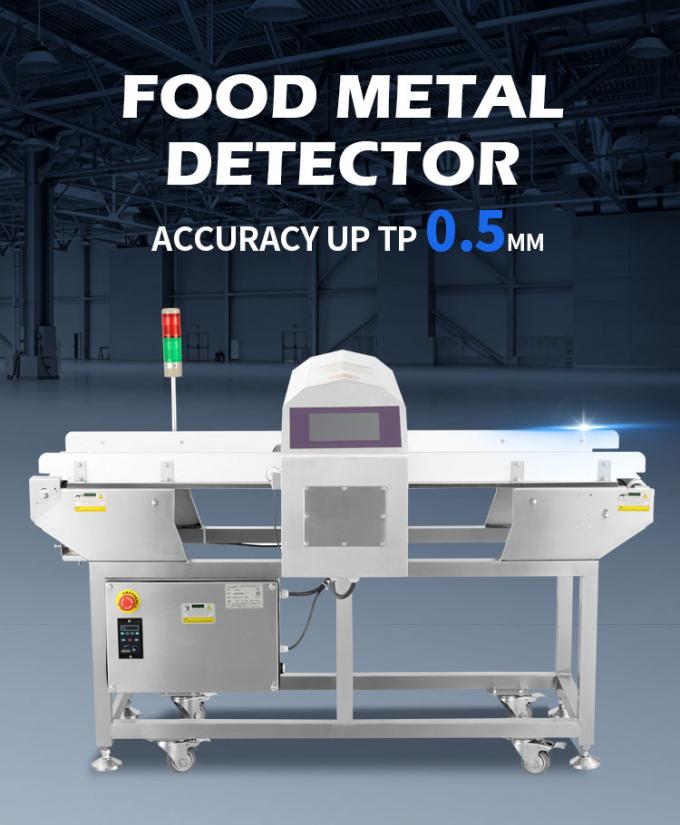

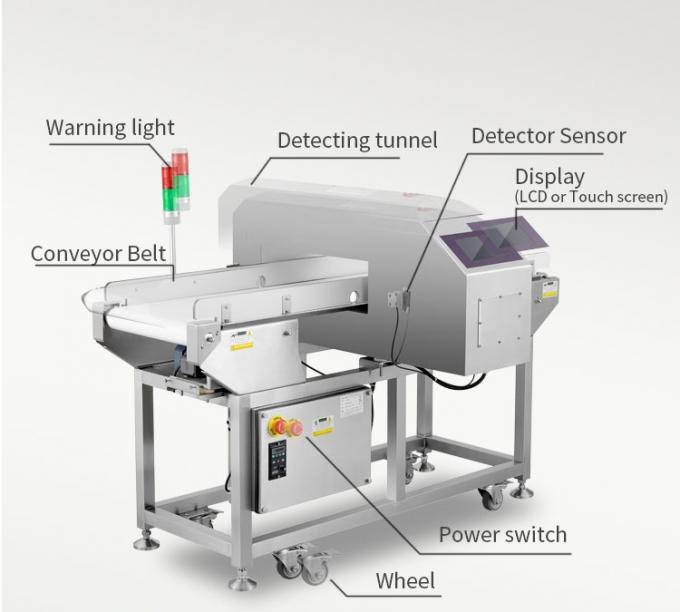

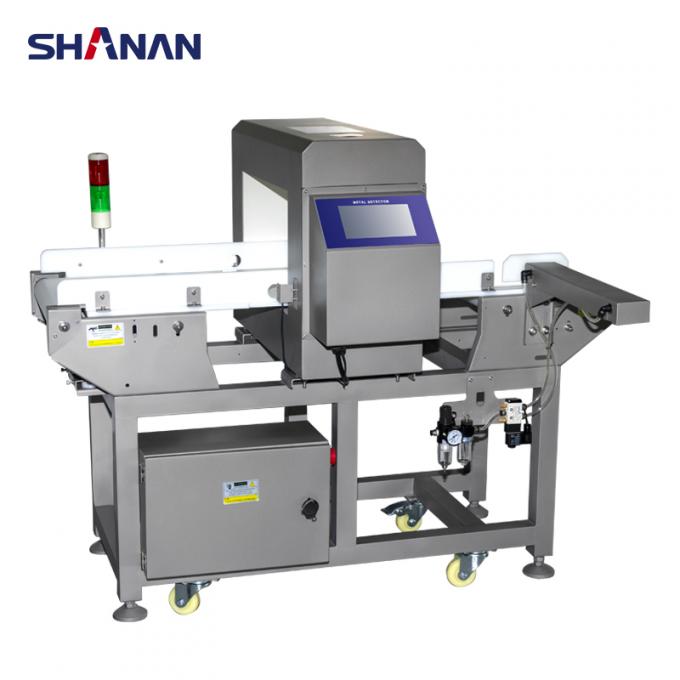

Product Gallery

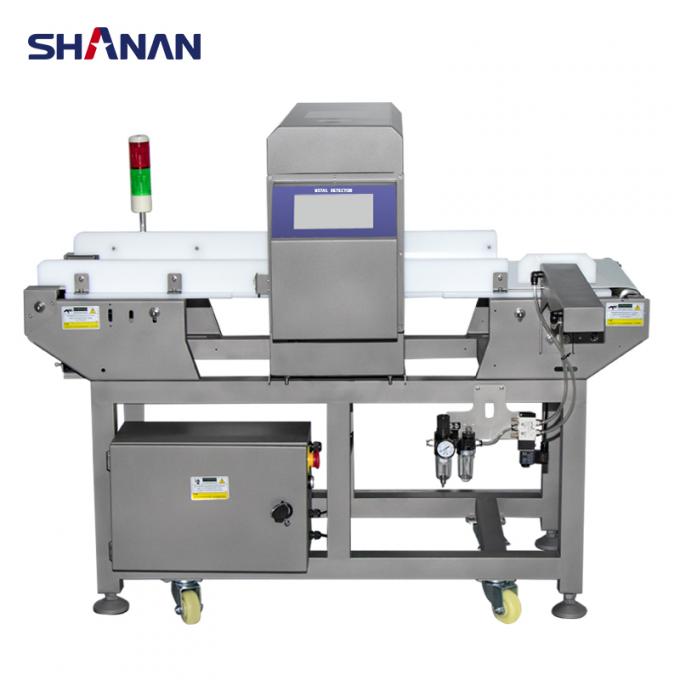

SA-990 Model Specifications
| Machine Length | 1330-2000mm (customizable) |
| Detection Tunnel Width | 200-1200mm (customizable) |
| Detection Tunnel Height | 50-1000mm (customizable) |
| Standard Detection Sensitivity - FE | ≥0.5mm |
| Standard Detection Sensitivity - NON-FE | ≥0.8mm |
| Standard Detection Sensitivity - SUS304 | ≥1.0mm |
| Protection Level | IP67 |
| Memory Products | 200+ types |
| Display Mode | Touch Screen |
| Operation Mode | Touch Button Input |
| Alarm Mode | Alarm Stop, Buzzer Alarm or Rejector Device Optional |
| Machine Material | Stainless Steel 304, compliant with HACCP, GMP, FDA, CAS standards |

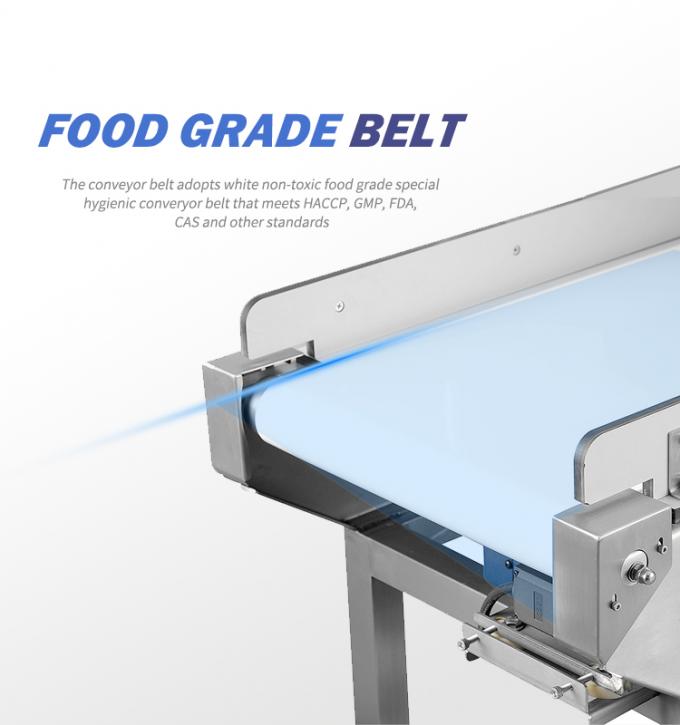

| Conveyor Belt Material | Food Grade PVC or PU Belt |
| Machine Weight | Approximately 280kg |
| Motor | 90-370W |
| Transfer Speed | 10-28m/min (optional and adjustable) |
| Power Supply | AC220V±10%, 50-60Hz (Customizable AC110V or AC380V) |
| Belt Height Above Ground | 700+100mm (customizable) |
| Maximum Load (Single Piece) | 10-50kg (customizable) |
| Operating Environment | Temperature: -15℃ to 40℃, Relative Humidity: 30-85% |
Our Advantages
Company Profile
Packing and Shipping
SA Series Model Comparison
| Model | SA-3008 | SA-3012 | SA-4008 | SA-4010 | SA-4012 | SA-4015 | SA-4020 | SA-4025 |
|---|
| Through Width (mm) | 300 | 300 | 400 | 400 | 400 | 400 | 400 | 400 |
| Passing Height (mm) | 80 | 120 | 80 | 100 | 120 | 150 | 200 | 250 |
| Belt Width (mm) | 270 | 270 | 370 | 370 | 370 | 370 | 370 | 370 |
| FE Detection (mm) | 0.6 | 0.7 | 0.6 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 |
| NON-FE Detection (mm) | 0.8 | 1.0 | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 | 1.8 |
| SUS304 Detection (mm) | 1.0 | 1.2 | 1.0 | 1.2 | 1.2 | 1.5 | 2.0 | 2.5 |
| Conveyor Length (mm) | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | 1500 | 1600 |
Additional standard features: Belt height from ground 750±50mm (customizable), IP67 protection level, 100 product memory types, touch button input (touch optional), food grade PVC/PU belt, alarm stop/buzzer alarm/reject mechanism options, belt speed 28m/min, carbon steel paint or stainless steel 304 construction compliant with HACCP, GMP, CAS standards, approximately 280kg weight, Taiwan high-power motor supporting 1-15kg transport weight, AC220V±10% 50-60Hz power supply (customizable AC110V or 380V), operating temperature -18 to 50°C, relative humidity 30-90%.
