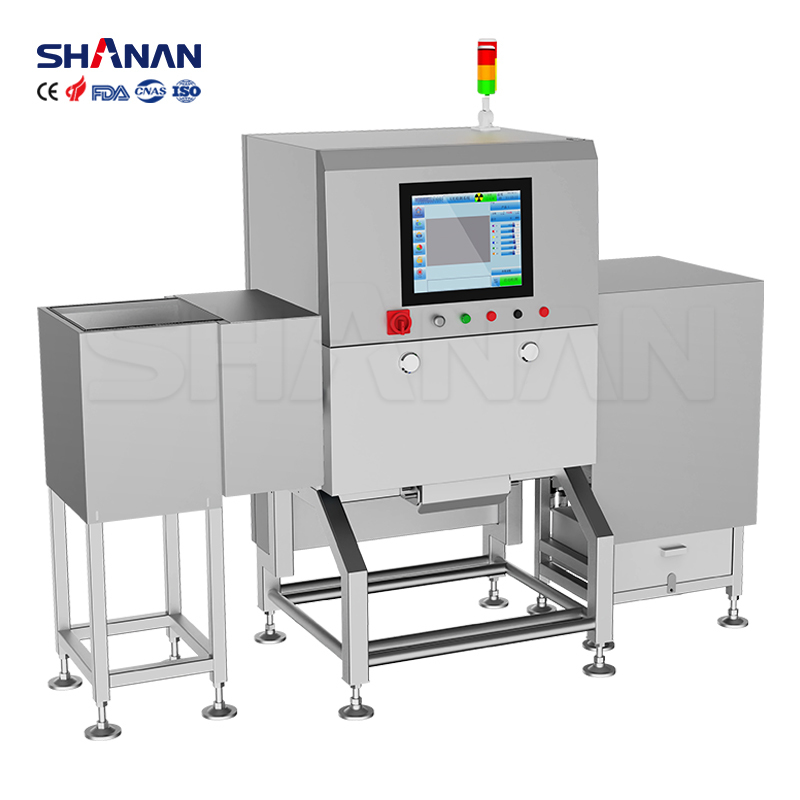

Pharmaceutical Factory Quality Control With X Ray Machines Metal And Glass Detection

Name: Pharmaceutical Factory Quality Control With X Ray Machines Metal And Glass Detection
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SAXR-4025
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SAXR-4025

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                pharmaceutical X-ray detection machine, food X-ray metal detector, glass detection X-ray equipment


Product Name:	Food X-Ray Inspection Machine	Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 250mm	Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized	Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)	Detector Type:	Linear Scan
Protection Level:	IP67	Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation	Operation System:	Linux (Core 4.10)
Support Data Interface:	USB	Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316	Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control	Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning	Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)	Machine Weight:	360Kg

Product Name:	Food X-Ray Inspection Machine
Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 250mm
Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized
Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)
Detector Type:	Linear Scan
Protection Level:	IP67
Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation
Operation System:	Linux (Core 4.10)
Support Data Interface:	USB
Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316
Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning
Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
Machine Weight:	360Kg

Pharmaceutical Factory Quality Control With X Ray Machines Metal And Glass Detection

Pharmaceutical Factory Quality Control With X-Ray Machines for Metal and Glass Detection

Our advanced X-ray foreign object detection machines are engineered to enhance product quality and safety across the pharmaceutical and pet food industries, providing versatile inspection capabilities for various packaging types including tins, boxes, pouches, bottles, and loose products.

X-Ray Inspection Applications

Ensure product conformity and completeness
Confirm accurate fill-levels for liquid products
Verify seals and lids integrity on packaging
Measure product mass and weight accuracy
Identify foreign objects including metal, bone, glass, plastics, and other contaminants

X-Ray vs Metal Detection Advantages

X-ray technology provides superior detection capabilities compared to traditional metal detectors, especially for identifying contaminants within metal containers. Our Shanan X-ray inspection systems offer sophisticated multi-inspection functionality that improves product quality and detects non-metallic contaminants like glass and stone that metal detectors cannot identify.

Shanan X-Ray System Benefits

Unrivalled speed, sensitivity, and detection sophistication
Adaptable ergonomic design for various production environments
Automatic calibration and set-up procedures
User-friendly interface and intuitive controls
Designed for quick and easy wash-down maintenance
Hygienic design compliant with FMSA standards
Multiple reject options to suit production line requirements
Easy integration into existing production lines
Customized and bespoke inspection solutions available

Advanced Detection Accuracy

Our systems deliver detection accuracy comparable to international brands with simplified operator setup. Complex products can be configured through automatic learning processes without technical assistance. Shanan's dynamic feature recognition algorithm automatically selects optimal parameters for maximum sensitivity, completing model training with up to 10 images in under 20 seconds.

Reliability Engineering

Industry-first server-level Linux system for ultimate stability and virus immunity
Fully sealed design for humid environments with dual-layer thermal cycling
Anti-condensation design for temperature differential environments
High-end components ensuring stable operation in harsh conditions

User-Centric Operation Features

IP66 rated detection channel for direct wash-down capability
X-ray leakage meets US standards (<1μSv/h) with safety monitoring functions
Modular design allows production line upgrades without host replacement
5-second belt disassembly for convenient on-site cleaning
Automatic configuration and inspection image saving for analysis
