Food grade Quality easy-to-use conveyor belt Metal Detector with rejection CE ISO certified

Name: Food grade Quality easy-to-use conveyor belt Metal Detector with rejection CE ISO certified
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SA-990
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SA-990

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                food grade metal detector with rejection, CE certified conveyor belt metal detector, ISO certified food metal detector


Product Name:	Food Industry Metal Detector	Application:	Health Care Industry
Material:	304 Stainless Steel	Language:	Chinese, English, Spanish, Language Can Be Customized
Oprate Panel:	Touch Screen	Tunnel Height:	400 Mm
Conveying Speed:	18-36m/min	Tunnel Width:	150 Mm
Sensitivity:	High Sensitivity,Fe≥0.8mm,Non-Fe≥1.2mm,Sus≥2.0mm,0.8mm Ferrous	Alarm:	Automatic Stop, Sound And Light Alarm Lamp Or Customized
Service Time:	Lifelong	Weight:	150-200kg
Warranty:	1 Year

Product Name:	Food Industry Metal Detector
Application:	Health Care Industry
Material:	304 Stainless Steel
Language:	Chinese, English, Spanish, Language Can Be Customized
Oprate Panel:	Touch Screen
Tunnel Height:	400 Mm
Conveying Speed:	18-36m/min
Tunnel Width:	150 Mm
Sensitivity:	High Sensitivity,Fe≥0.8mm,Non-Fe≥1.2mm,Sus≥2.0mm,0.8mm Ferrous
Alarm:	Automatic Stop, Sound And Light Alarm Lamp Or Customized
Service Time:	Lifelong
Weight:	150-200kg
Warranty:	1 Year

Food grade Quality easy-to-use conveyor belt Metal Detector with rejection CE ISO certified

Food Grade Quality Easy-to-Use Conveyor Belt Metal Detector

CE ISO certified metal detection system with rejection mechanism for bakery applications

Bakery Applications

Comprehensive detection solution for various flour-based products including fresh and frozen bread, rolls, semi-baked goods, croissants, cakes, pastries, doughnuts, pancakes, dough, biscuits, cookies, crackers, tarts, and fruit pies.

Industry Challenges

High processing volumes increasing stainless steel contamination risks from equipment failure
Warm, dusty environments requiring frequent machine and conveyor cleaning
Product integrity verification after baking processes
Multiple retailer requirements for private label manufacturing

Advanced Detection Technology

Faster, Better Auto-Learn: Enhanced signal processing delivers excellent detection sensitivities and maximizes production line uptime.

Variable Frequency Technology: Optimizes detection levels across diverse product conditions including wet and dry variations.

Technical Specifications

Parameter	Values
Pass width (mm)	400 \| Custom non-standard
Pass height (mm)	80 \| 120 \| 150 \| 180 \| 200 \| 250 \| 300 \| 350 \| 400
Standard detection sensitivity FE(Φmm)	0.5 \| 0.6 \| 0.7 \| 0.8 \| 1.0 \| 1.2 \| 1.5 \| 2.0 \| 2.5
NON-FE(Φmm)	0.8 \| 1.0 \| 1.2 \| 1.5 \| 2.0 \| 2.5 \| 3.0 \| 3.5 \| 4.0
SUS304(Φmm)	1.0 \| 1.2 \| 1.5 \| 2.0 \| 2.5 \| 3.0 \| 3.5 \| 4.0 \| 4.5
Belt width (mm)	370 \| 370 \| 370 \| 370 \| 470 \| 470 \| 470 \| 470 \| 470
Conveyor length (mm)	1330 \| 1330 \| 1330 \| 1330 \| 1700 \| 1700 \| 1700 \| 1700 \| 1700
Height from belt to ground (mm)	650±50 (customizable)
Protection level	IP66
Number of memory products	100 kinds
Display method	LED D (or custom touch screen)
Operation method	Touch key input (touch optional)
Material of conveyor belt	Food grade plate chain
Alarm method	Alarm shutdown, buzzer alarm or rejection mechanism optional
Belt speed	28m/min constant (variable speeds customizable)
Machine material	SUS304 food grade stainless steel, compliant with HACCP, GMP, CAS standards
Mechanical size (mm)	1330 * 980 * 1100 (length * width * height) non-standard customizable
Machine weight	Approximately 300KG

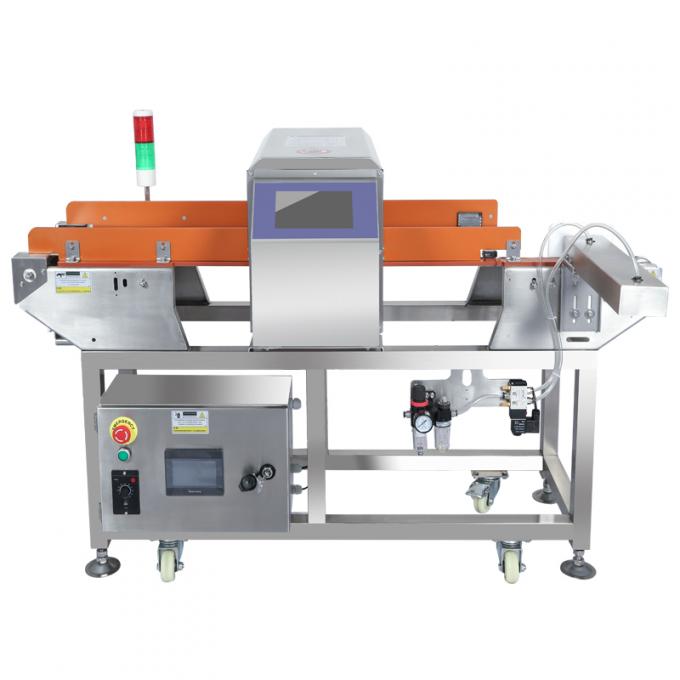

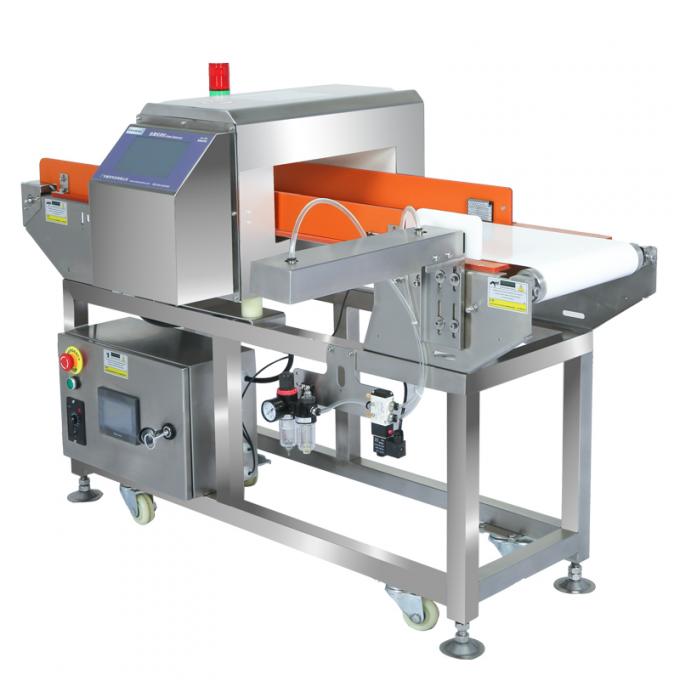

Product Images

SA-990 Model Specifications

Parameter	Specification
Model	SA-990
Machine length (mm)	1330~2000 (customizable)
Detection tunnel width (mm)	200~1200 (customizable)
Detection tunnel height (mm)	50~1000 (customizable)
Standard detection sensitivity FE(Φmm)	≥0.5
NON-FE(Φmm)	≥0.8
SUS304(Φmm)	≥1.0
Protection level	IP67
Number of memory products	200+ kinds
Display mode	Touch Screen
Operation mode	Touch button input
Alarm mode	Alarm stop, buzzer alarm or rejector device optional
Machine material	Stainless steel 304, compliant with HACCP, GMP, FDA, CAS standards
Conveyor belt material	Food grade PVC or PU belt
Machine weight	Approximately 280KG
Motor	90~370W
Transfer speed	10-28m/min (optional and adjustable)
Power supply	AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
Belt height above ground (mm)	700+100 (customizable)
Maximum load (single piece)	10~50KG (customizable)
Using environment	Temperature: -15℃~40℃, relative humidity: 30~85%
