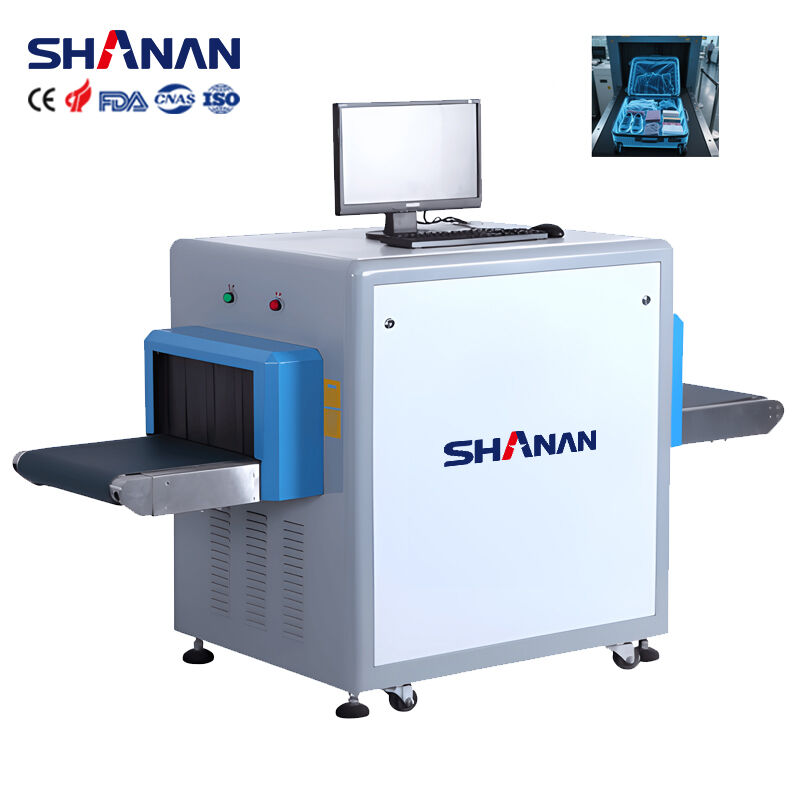

Subway Station Airport Public Places X Ray Baggage Scanner X-Ray Machine

Name: Subway Station Airport Public Places X Ray Baggage Scanner X-Ray Machine
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: VX-6550C
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VX-6550C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                airport x-ray baggage scanner, public places x-ray machine, subway station x-ray inspection system


Type:	Conveying X-ray Detector	Tunnel Size:	600*500mm Size
Conveyor Speed:	0.22 M/s	Penetration:	≥34mm
NW / GW:	280 Kg / 350 Kg	Conveyor Height From The Ground:	700mm
Monitor:	1 Monitor	Operation Table:	Includes
Monitor:	19' D

Type:	Conveying X-ray Detector
Tunnel Size:	600*500mm Size
Conveyor Speed:	0.22 M/s
Penetration:	≥34mm
NW / GW:	280 Kg / 350 Kg
Conveyor Height From The Ground:	700mm
Monitor:	1 Monitor
Operation Table:	Includes
Monitor:	19' D

Subway Station Airport Public Places X Ray Baggage Scanner X-Ray Machine

Subway Station Airport Public Places X-Ray Baggage Scanner

This professional X-ray baggage scanner is designed for security screening in hotels, airports, ports, stations, customs, and other critical passageways. Since the 1970s, security checks for passenger luggage have become standard international safety measures.

Technical Specifications

X-ray Generator

Generate direct: Upward
Generate angle: 60 degree
Anode power: 0.4 to 0.7mA
Cooling / Duty Cycle: Oil Cooling / 100%

Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, D Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder

Installation Data

X-ray sensor	L-shaped photodiode array detector (single energy), 12bit depth
Monitor	High resolution 19 inch D BenQ monitor
Color image display	24-bit true color display
Edge Enhancement	The outline of objects will be more clear
Super Image Enhancement	The details of the image are more clear
High penetration display	Improve image contrast in bright areas
Low penetration display	Improve image contrast in dark areas
Magnifier local	Amplification function
Brighten / darken	Increase / decrease image brightness
Image pull back / front pull	Show the top 20 images, current image can be any image processing
Image Restoration	Restored to its original state
Image Storage	Real-time save any image, continuous work to save
By size	650(W)*500(H)mm
Conveyor speed	Hour detection 600ps/h, 0.22m/s
Load	150 kg
Resolution	∮0.0787 mm
Conveyor height from the ground	700mm
Penetration	≥34mm
Monitor	BenQ 19in D monitor
Storage	500G hard drive, stores over 100,000 images
Noise	≤55dB(A)
Operating system	Windows XP
Single check dose	≤ 1.22uGy
Leaking radiation dose rate	≤ 0.12uGy/h
Dimensions	1750mm (L) * 730mm (W) * 1200mm (H)
Net Weight / Gross Weight	280 kg / 350 kg
Operation temperature/Humidity	0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity	-20℃-60℃/20%-95%(non-condensing)
Operation Power	100-240VAC(±10%)50±3Hz
Power Consumption	1.0 KW (max)
Noise	<58db

Drug and Explosive Detection Capability

Detection Technology: Based on equivalent atomic number (Zeff) analysis:
• Zeff 7 = water, plastic explosive
• Zeff 8 = impure drug and explosive
• Zeff 9 = pure drug

The system automatically alarms for suspicious objects matching Zeff substance profiles. Visual indicators on scanning images include:

Red line: Non-penetrable materials
Yellow line: Explosive materials
Green line: Drug substances

Simultaneous alarm activation includes LED lighting at the scanner entrance with audible alert.

Applications

Designed for small mail parcel security checks, primarily serving postal express logistics centers and small parcel safety testing facilities.
