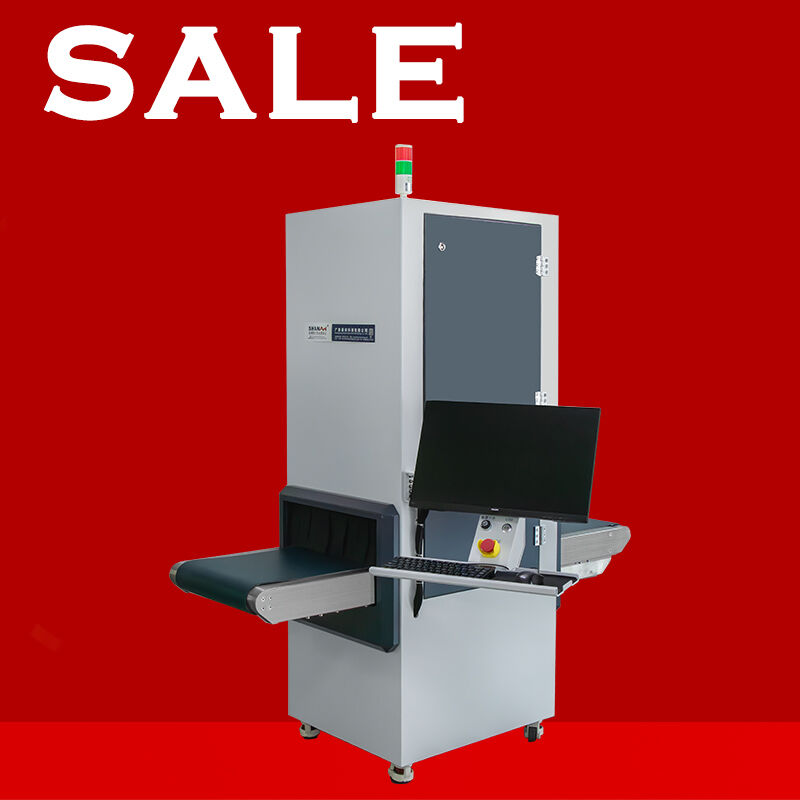

Industrial Subway Station Airport Public Places Baggage Scanner X-Ray Machine Manufacturing

Name: Industrial Subway Station Airport Public Places Baggage Scanner X-Ray Machine Manufacturing
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: VX-6550C
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VX-6550C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                industrial baggage scanner x-ray machine, airport x-ray inspection system, public places x-ray machine manufacturing


Type:	Conveying X-ray Detector	Tunnel Size:	600*500mm Size
Conveyor Speed:	0.22 M/s	Penetration:	≥34mm
NW / GW:	280 Kg / 350 Kg	Conveyor Height From The Ground:	700mm
Monitor:	1 Monitor	Operation Table:	Includes
Monitor:	19' D

Type:	Conveying X-ray Detector
Tunnel Size:	600*500mm Size
Conveyor Speed:	0.22 M/s
Penetration:	≥34mm
NW / GW:	280 Kg / 350 Kg
Conveyor Height From The Ground:	700mm
Monitor:	1 Monitor
Operation Table:	Includes
Monitor:	19' D

Industrial Subway Station Airport Public Places Baggage Scanner X-Ray Machine Manufacturing

Industrial X-Ray Baggage Scanner for Public Security

Professional hotel-use X-ray luggage screening scanner machine designed for comprehensive baggage security inspection in high-traffic public areas.

Security Applications

Essential security screening for passenger luggage in critical transit points including airports, seaports, railway stations, and customs checkpoints. This X-ray baggage scanner provides reliable detection of prohibited and dangerous items to ensure public safety and prevent security incidents.

X-Ray Generator Specifications

Generate Direction: Upward
Generate Angle: 60 degrees
Anode Power: 0.4 to 0.7mA
Cooling / Duty Cycle: Oil Cooling / 100%

Advanced Imaging System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, D Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, lightening, reducing darkening, image returning, retrieval
Image Grey Level: 4096
Maximum Resolution: 1024 * 1280 pixels
Real-time Processing: 24-bit processing
Image Storage: 60,000 pictures storage capacity
Zoom & Regions: 1-9 image regions, 2,4,8,16 times enlargement
Material Discrimination: Organic objects (orange), inorganic objects (blue), mixtures (green)
Energy Switching: High-energy/low energy switching capability
Drug & Explosive Detection: Assisted detection functionality

Installation & Operational Data

Operation Temperature/Humidity	0℃-45℃ / 20%-95% (non-condensing)
Storage Temperature/Humidity	-20℃-60℃ / 20%-95% (non-condensing)
Operation Power	100-240VAC (±10%) 50±3Hz
Power Consumption	1.0 KW (maximum)
Noise Level	<58dB

Technical Specifications

X-ray Sensor	L-shaped photodiode array detector (single energy), 12bit depth
Monitor	High resolution 19 inch D BenQ monitor
Color Image Display	24-bit true color display
Edge Enhancement	Enhanced object outline clarity
Super Image Enhancement	Improved image detail clarity
High Penetration Display	Improved contrast in bright areas
Low Penetration Display	Improved contrast in dark areas
Magnifier Function	Local amplification capability
Tunnel Size	650(W) * 500(H) mm
Conveyor Speed	600 packages/hour at 0.22m/s
Maximum Load	150 kg
Resolution	∮0.0787 mm
Conveyor Height	700mm from ground
Penetration Capability	≥34mm
Storage Capacity	500GB hard drive, stores 100,000+ images
Operating System	Windows XP
Single Check Dose	≤ 1.22uGy per inspection
Leaking Radiation	≤ 0.12uGy/h at 5cm from surface
Dimensions	1750mm (L) * 730mm (W) * 1200mm (H)
Net Weight / Gross Weight	280 kg / 350 kg

Drug & Explosive Detection Technology

Advanced Material Discrimination

Our X-ray scanner utilizes equivalent atomic number (Zeff) technology for detecting explosives and drugs:

Zeff 7: Water, plastic explosive
Zeff 8: Impure drugs and explosives
Zeff 9: Pure drugs

The system automatically alarms for suspicious objects matching these Zeff values. Visual indicators include:

Red Line: Non-penetrable materials
Yellow Line: Explosive materials
Green Line: Drug substances

Simultaneous LED lighting and audible alarms activate at the scanner entrance when threats are detected.

Primary Applications

Specifically designed for small mail and parcel security screening. Ideal for postal express logistics centers, small parcel safety testing facilities, and high-security mail processing operations.
