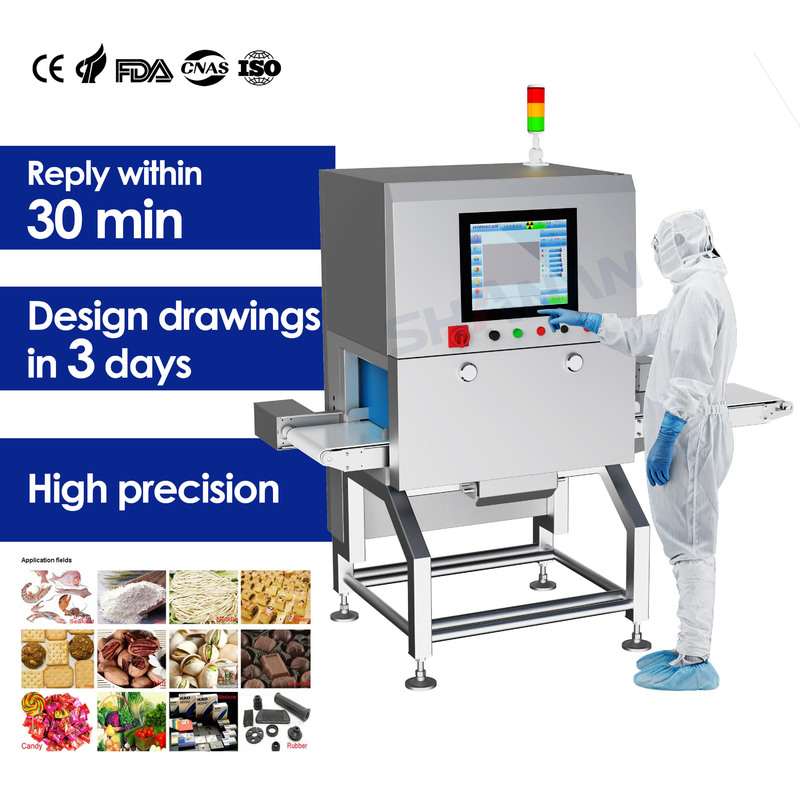

Customized Factory Industrial package X Ray Machine For Food Industry Inspection

Name: Customized Factory Industrial package X Ray Machine For Food Industry Inspection
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SAXR-4025
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SAXR-4025

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                customized food x ray machine, industrial food inspection x ray, factory x ray machine for food


Product Name:	Food X-Ray Inspection Machine	Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 250mm	Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized	Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)	Detector Type:	Linear Scan
Protection Level:	IP67	Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation	Operation System:	Linux (Core 4.10)
Support Data Interface:	USB	Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316	Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control	Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning	Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)	Machine Weight:	360Kg

Product Name:	Food X-Ray Inspection Machine
Optimum Inspection Sensitivity:	Stainless Steel Ball: Φ0.3mm, Stainless Steel Wire: Φ0.2*2 Mm, Ceramic Ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters:	Maximum Height: 250mm
Conveyor Speed:	5-60 M/min
Load Capacity:	10Kg Or Customized
Rejector Mode:	Sound And Light Alarm, Belt Stops (Rejector Optional)
X-ray Leak:	<1μSvh (CE Standard)
Detector Type:	Linear Scan
Protection Level:	IP67
Monitor:	17'' Full-color TFT Touch Screen
Operation Method:	Touch Screen Operation
Operation System:	Linux (Core 4.10)
Support Data Interface:	USB
Parameter Settings:	Self-learning / Manual Adjustment
Body Material:	Food Grade SUS 304/ SUS316
Conveyor Belt Material:	PU Belt/ PVC Belt
Air Conditioning:	Internal Circulation Industrial Air Conditioner, Automatic Temperature Control
Protection Method:	Detachable Protective Curtain
Cleaning Method:	Tool-free Removal Of Conveyor Belt For Easy Cleaning
Power Supply:	AC110V/220/380V, 50/60Hz
Environmental Requirements:	Temperature: 0-45 ° C / Humidity: 30-85% RH (no Condensation)
Machine Weight:	360Kg

Customized Factory Industrial package X Ray Machine For Food Industry Inspection

Customized Factory Industrial Package X-Ray Machine for Food Industry Inspection

Food Industry Factory Metal Detector Machine X-Ray Food Machine for Chocolate, Nut, and Cookies Inspection

About Shanan Group.pdf

X-ray Inspection for Wet and Dry Pet Food Products

Pet food is equally susceptible to contamination as human food. Our x-ray inspection systems enhance product quality across the full range of pet food products and packaging types, with versatile inspection capabilities for tins, boxes, pouches, bottles, and loose pet food.

Pet Food X-ray Applications

Ensure product conformity and completeness
Confirm accurate fill-levels (e.g., milk replacements for young animals)
Verify seals and lids are correct (e.g., seals on pouches of wet pet food and ring-pulls on tins)
Measure product mass (e.g., ensure accurate weight of dry kibble)
Identify foreign objects including metal, bone, glass, certain plastics, and other contaminants

Why Choose X-ray Over Metal Detection for Pet Food?

X-ray technology offers the unique capability to detect metal inside metal containers such as tins and trays of pet food. Shanan x-ray inspection systems provide greater sophistication than metal detectors, enabling multiple inspections with a single machine to improve product quality and detect contaminants like glass and stone that metal detectors cannot identify.

Why Choose a Shanan X-ray System?

Unrivalled speed, sensitivity, and detection sophistication
Adaptable ergonomic design
Automatic calibration and set-up
User-friendly interface and controls
Designed for quick and easy wash-down
Hygienic design meeting FMSA standards
Multiple reject options to suit production line requirements
Easy integration into existing production lines
Customized and bespoke x-ray inspection solutions for unique requirements

Our systems deliver the same high detection accuracy as international brands with operator-friendly setup capabilities.

Advanced Algorithm Technology

Automatic learning process handles complex products without technician involvement
Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
Self-learning completes with up to 10 images and 20-second model training

Reliability-Focused Technical Design

Industry-first server-level Linux system ensures stability and virus immunity
Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
Anti-condensation design for temperature differential environments
High-end components ensure stable operation in harsh conditions

User-Centric Operation Features

Feature	Benefit
IP66 Protection Level	Direct wash-down capability
US Standard X-ray Safety	Less than 1μSv/h external radiation with safety monitoring
Modular Design	Production line upgrades without host replacement
Quick Belt Disassembly	5-second belt removal for easy cleaning
Automatic Data Export	Configuration and inspection image saving for analysis
