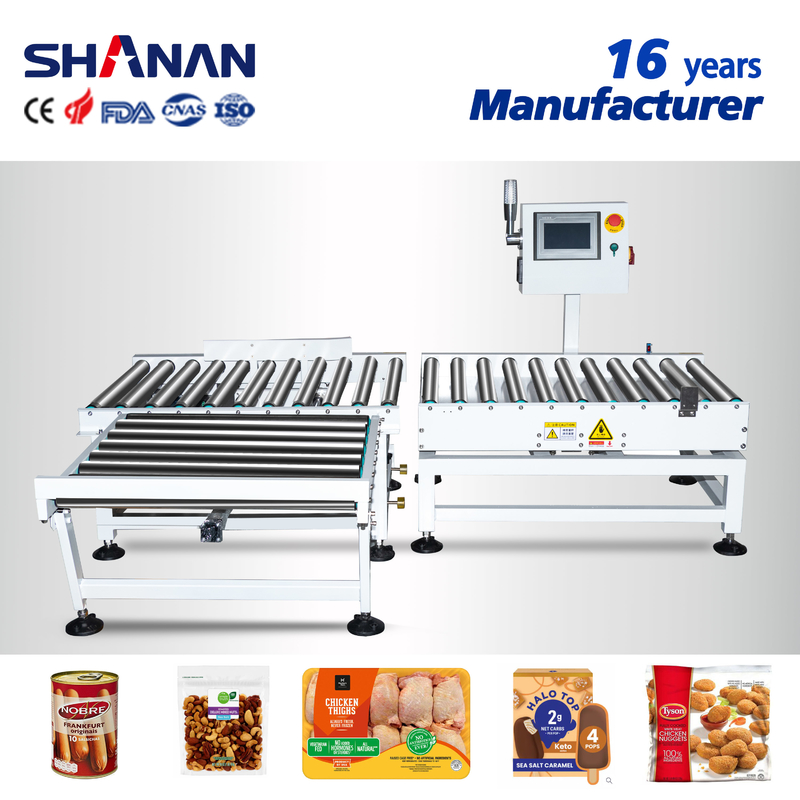

Name: Large-Scale Automatic Docking Production Line Efficient Weighing Machine
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: SACW500
Price: 4,400.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: ce

Model Number: SACW500

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:

Operating Temperature:	0-40℃	Power Supply:	AC 220V/50Hz
Weighing Range:	Customized	Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting	Alarm:	Light And Sound
Display:	D	Throughout:	100~700PCS/min

Operating Temperature:	0-40℃
Power Supply:	AC 220V/50Hz
Weighing Range:	Customized
Belt Material:	Food Grade PVC Or PU
Sortting Manner:	Muti Sorting
Alarm:	Light And Sound
Display:	D
Throughout:	100~700PCS/min

Large-Scale Automatic Docking Production Line Efficient Weighing Machine

About Shanan.pdf Large-Scale Automatic Docking Production Line Efficient Weighing Machine 0

Product model	SACW-120A	Transfer speed	20~60m/min
Power supply	AC220V土10% 50HZ (60HZ)	Maximum speed	180 pcs/min
Rated power	0.15KW	Weighing conveyorbelt size	250mm(L)“120mm (W)
Single weighing range	1.5-200g	Elimination method	Blow-out
Weighing accuracy range	土0.05g~土0.1g	Control System	High speed A/Dsampling controller
Minimum scale	0.01g	Preset product number	2000pcs
Inspection item size	Length: 30-150mm Width: 30~90mm Height:10-100mm
size Machine	900mm (L)500mm(W)1250mm (H)
Operation direction	Facing the machine, left to right
External air supply	0.6-1Mpa
Air pressure interface	Φ8mm
Workingenvironment	Temperature:0C~40C,Humidity:30%~95%
Body material	Stainless steel 304 polished
Operationscreen display	Chinese, English, Turkish, Spanish, etc.
Other standardequipment	Windshield (colorless and transparent), calibration weight
Height of beltsurface from ground	650mm~~750mm(can be customized)
Protection level	Protection level conforms to IP-55 international standard
Remarks	According to the different dimensions of the tested product andthe working environment in which the equipment is running, the accuracyof the speedometer is slightly different
