Product Details
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: SACW-210
Document: About Shanan.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Application: |
Food Industrial |
Type: |
Weight Detector |
Color: |
Silver |
Function: |
Weighing Inspection |
Scale Use: |
Kitchens,offences,warehouses |
Display Type: |
Touch Screen D Display |
Power Supply: |
110/220V |
Mini Accuracy: |
0.3gram |
Warranty: |
12 Months |
Application: |
Food Industrial |
Type: |
Weight Detector |
Color: |
Silver |
Function: |
Weighing Inspection |
Scale Use: |
Kitchens,offences,warehouses |
Display Type: |
Touch Screen D Display |
Power Supply: |
110/220V |
Mini Accuracy: |
0.3gram |
Warranty: |
12 Months |

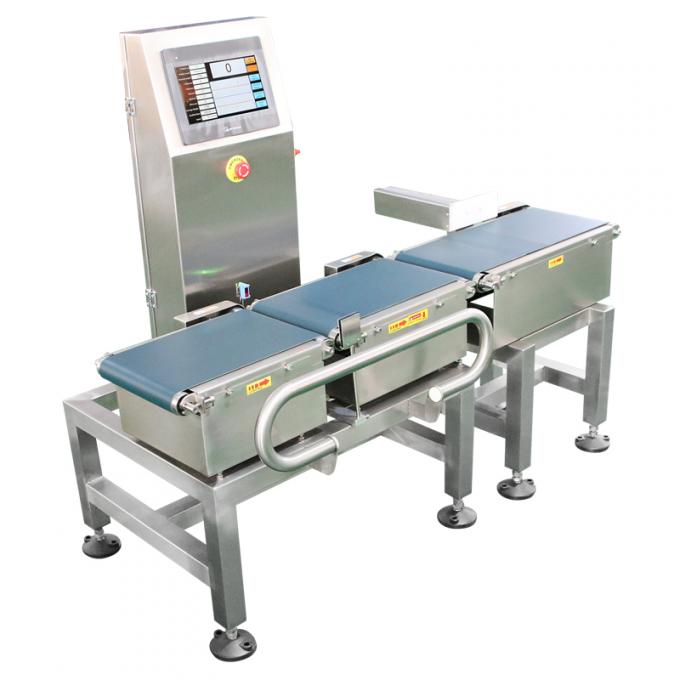

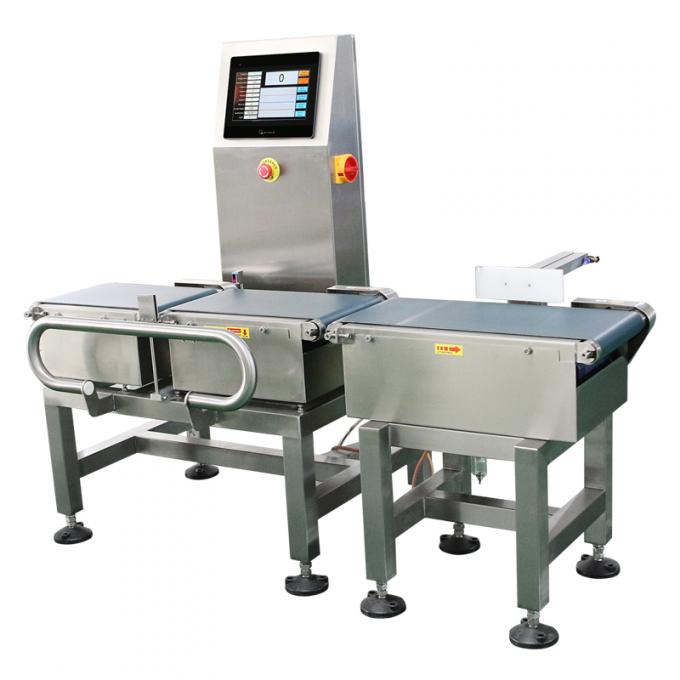

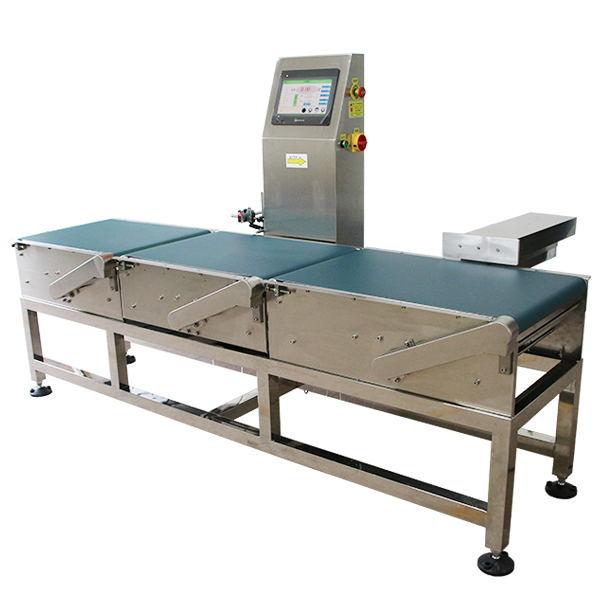

High quality and accuracy conveyor Stainless steel check weigher for food industrial
About Shanan.pdf
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Function and structure characteristics of check weigher
1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
Scope of application of check weigher
Use in detecting the single product weight and setting target value which is accordingly or not. And the
sorting device will eliminate the unstandard product.
Features:
Solid SUS304 stainless steel structure enable for good performance
Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod
emergency stop button for safety working condition
Parameter details :
rge tunnel food bags check weigher

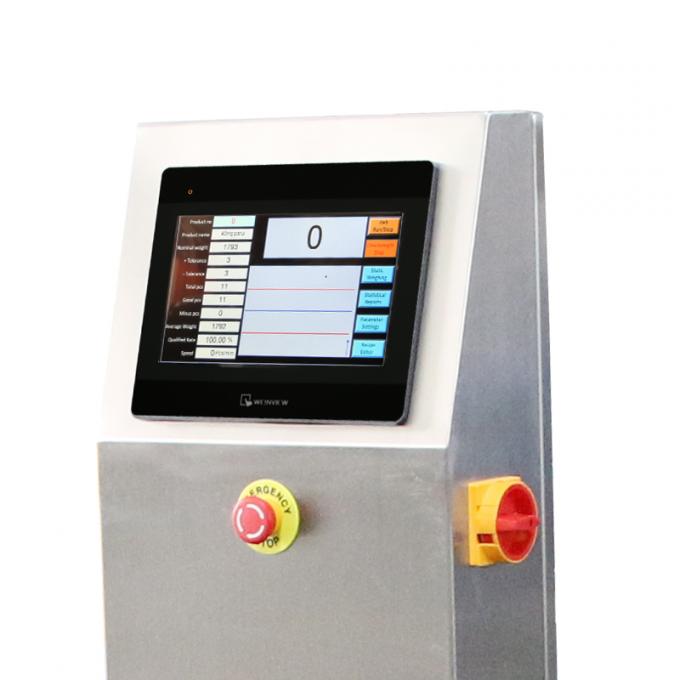

²Screen : 8inche full touch screen
² Weight range : Max 1000g
² Max speed : 60-120pieces /minute (can adjust )
² Max accuracy: ±0.5g
² Screen resolution : 0.01g
² Rejection: deflector rod
² Running direction :Face operate panel from left to right
² Belt height from earth : 750±50MM(can customized )
² Products recipe storage : can stooge 100kinds
² Power supply : customized 110---220V±20% 50HZ
² Machine structure :Full stainless steel 304
² Full machine weight :approx 100kg
| Parts Name | Specification /Brand | Unit | Use amount |
| Control system | control system ,8 inch industrial touch screen | pcs | 1 |
| Weight sensor | Germany HBM | Pcs | 1 |
| Driving system | Delta | Pcs | 1 |
| Inverter | Delta | Pcs | 1 |
| photoelectric switch | Taiwan Riko | Pcs | 1 |
| Motor Switch | CHNT | Pcs | 1 |
| Conveyor belt | White Shabaker | Pcs | 1 |
| Main conveyor belt roller | NSK Bearing , | Pcs | 1 |
| Accessory conveyer belt | NSK Bearing | Pcs | 1 |
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color D Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
Wind Shield (top)
| VC-10 | VC-15 | VC-22 | VC-30 | VC-40 | VC-25(Two belt) | VC-100 | |
| Model Name | |||||||
| Weight range (g) | 3-100 | 3-300 | 10-1200 | 30-3000 | 50-1000 | 50g-25kg | 1kg-100kg |
| Mini weight accuracy (g) | ±0.1 | ±0.3 | ±0.5 | ±1 | ±0.5 | ±5g | ±10g |
| Mini screen value (g) | 0.01 | 0.1 | 0.1 | 0.1 | 0.1 | 0.5 | 1g |
| Max weigh speed (Bags /Minute ) | 20 | 330 | 210 | 180 | 180 | 50 | 20 |
| Belt speed | 0 | 16-118 | 13-96 | 13-96 | 13-96 | 13-78 | 3-15 |
| (Meter/minute ) | |||||||
| Suitable product length (mm) | - | 60-180mm | 60-300mm | 60-420mm | 60-500mm | 60-420mm | - |
| Suitable product width (mm) | - | 30-150mm | 30-200mm | 30-250mm | 30-400mm | 30-380mm | - |
| Suitable product height (mm) | - | 10-130mm | 10-200mm | 10-330mm | 10-330mm | 10-430mm | - |
| Weigh zone size (mm L*W) | - | 270*110 | 400*220 | 500*300 | 500*400 | 800*600 | 1000*800 |
| Note | Non-standard (without belt) | High accuracy | Small common model | Customized model | Customized model | Common model for Box | Roller end belt |
| Reject device optional | Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional ) | ||||||
| Optional | |||||||
