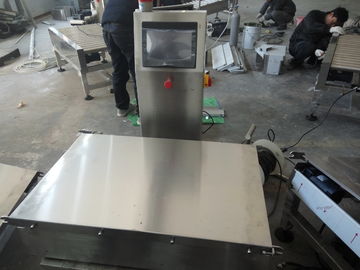

SS304 Weight Checking Machine , Automated Fish Sorting Machine 110v / 220v

Customer Reviews
Your food metal detector machine with Spanish Operation system is excellent The operation is easy and senstivity is high I will introduce it to my other food factory friends

—— Miquel Font

Thank you brother, You are a reliable supplier The metal detector and baggage scanner works good

—— Doon

I'm Online Chat Now

SS304 Weight Checking Machine , Automated Fish Sorting Machine 110v / 220v

SS304 Weight Checking Machine , Automated Fish Sorting Machine 110v / 220v
SS304 Weight Checking Machine , Automated Fish Sorting Machine 110v / 220v SS304 Weight Checking Machine , Automated Fish Sorting Machine 110v / 220v

Large Image :  SS304 Weight Checking Machine , Automated Fish Sorting Machine 110v / 220v

Product Details:
Place of Origin: CHINA
Brand Name: Shanan
Certification: ISO,CE
Model Number: VC-15
Payment & Shipping Terms:
Minimum Order Quantity: one unit
Price: negotiation
Packaging Details: wooden
Delivery Time: 7- 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Units
Detailed Product Description
Material: Stainless Steel 304 Machine Type: Checkweigher Machine
Color: Siliver Function: Weighing Inspection
Scale Use: Food Bags/punch/box Inspection Control System: Touch Screen
Display Type: LCD Display Power Supply: 110v Or 220v
Accuracy: 1g Warranty: 12 Months
High Light:

dynamic checkweigher


checkweigher machine

Automatic checkweigher, fish sorting machine, belt conveyor weigher scale
   Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Function and structure characteristics of check weigher
1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
Scope of application of check weigher
Use in detecting the single product weight and setting target value which is accordingly or not. And the
sorting device will eliminate the unstandard product.
Solid SUS304 stainless steel structure enable for good performance
Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod
emergency stop button for safety working condition
 Core Applications
 Biscuits and Bakery
 Cereal and Health Foods
 Confectionery
 Cheese
 Fresh Produce
 Granulated Products
 IQF/Frozen
 Meat and Fish
 Nuts and Dried Fruit
 Pasta and Pulses
 Ready Meals
 Snack Food
 Tea and Coffee
 Bag in Bag
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color LCD Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
rge tunnel food bags check weigher
²Screen : 8inche full touch screen
² Weight range : Max 1000g
² Max speed : 60-120pieces /minute (can adjust )
² Max accuracy: ±0.5g
² Screen resolution : 0.01g
² Rejection: deflector rod
² Running direction :Face operate panel from left to right
² Belt height from earth : 750±50MM(can customized )
² Products recipe storage : can stooge 100kinds
² Power supply : customized 110---220V±20% 50HZ
² Machine structure :Full stainless steel 304
² Full machine weight :approx 100kg

Parts NameSpecification /BrandUnitUse amount
Control systemVfinder control system ,8 inch industrial touch screenpcs1
Weight sensorGermany HBMPcs1
Driving systemDeltaPcs1
photoelectric switchTaiwan RikoPcs1
Motor SwitchCHNTPcs1
Conveyor beltWhite ShabakerPcs1
Main conveyor belt rollerNSK Bearing ,Pcs1
Accessory conveyer belt
NSK BearingPcs1

Wind Shield (top)

 VC-10VC-15VC-22VC-30VC-40VC-25(Two belt)VC-100
Model Name
Weight range (g)3-1003-30010-120030-300050-100050g-25kg1kg-100kg
Mini weight accuracy (g)±0.1±0.3±0.5±1±0.5±5g±10g
Mini screen value (g)
Max weigh speed (Bags /Minute )203302101801805020
Belt speed 016-11813-9613-9613-9613-783-15
(Meter/minute )
Suitable product length (mm)-60-180mm60-300mm60-420mm60-500mm60-420mm-
Suitable product width (mm)-30-150mm30-200mm30-250mm30-400mm30-380mm-
Suitable product height (mm)-10-130mm10-200mm10-330mm10-330mm10-430mm-
Weigh zone size (mm L*W)-270*110400*220500*300500*400800*6001000*800
Note Non-standard (without belt)High accuracy Small common model Customized model Customized model Common model for Box Roller end belt
Reject device optional Pin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )
