Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: AL-W1

Document: About Shanan.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

usb cigarette lighter

,

usb plasma lighter

Accuracy:
High
Delivery:
Fast
Display:
D
Frequency:
50/60Hz
Interface:
USB/RS232
Material:
Stainless Steel
Model:
Conveyor Weight Checker
Power:
AC/DC
Size:
Customizable
Speed:
High
Voltage:
110V/220V
Warranty:
1 Year
Weight:
Lightweight
Accuracy:
High
Delivery:
Fast
Display:
D
Frequency:
50/60Hz
Interface:
USB/RS232
Material:
Stainless Steel
Model:
Conveyor Weight Checker
Power:
AC/DC
Size:
Customizable
Speed:
High
Voltage:
110V/220V
Warranty:
1 Year
Weight:
Lightweight
Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry



Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 1Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 2

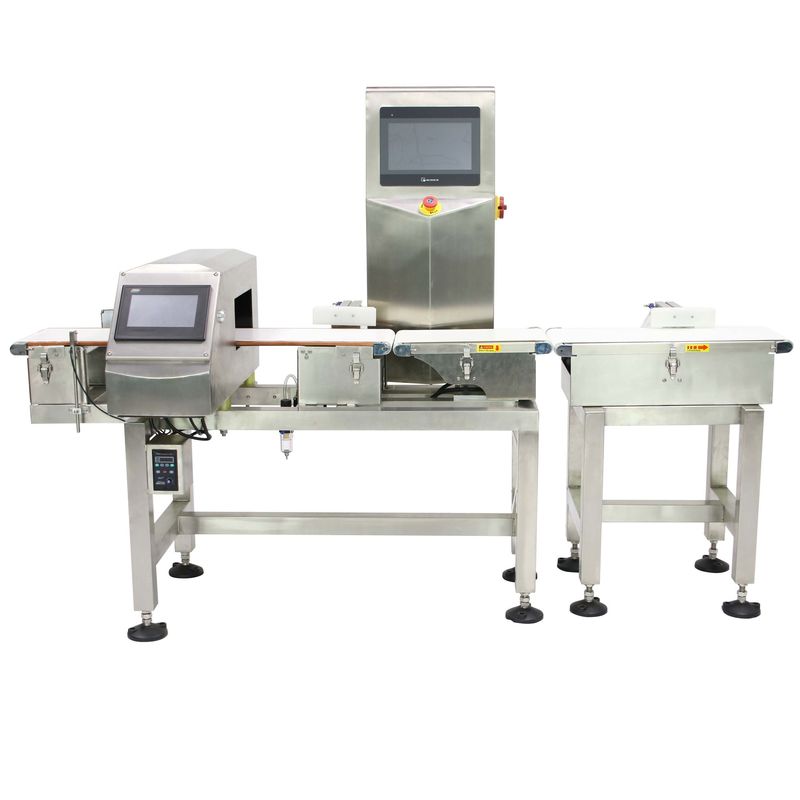

SAMDCW-210- combination of Metal detector and weighing checker



product description:



The product is tested for weight in the assembly line, and it is used for all-metal foreign object detection, saving floor space and being used in one machine. It is suitable for all areas where the product space is limited but the installation space is limited.



Features:

Compact design saves space and installation costs.

The metal detector and the weight detector are integrated into one load-bearing frame to minimize the installation space of the production line, which is convenient for users to install on the existing production line.



Product Specifications of Weight inspection machine:

model SAMDCW-210 Metal detection weighing machine
power power:single phase AC200V~240V(110V/380Vcan be customized)
rated power 0.15KW
Single weighing range ≤1000g
Highest sorting accuracy ±0.2~±1g
Minimum scale 0.1g
(FE) 0.6mm
NON-FE 0.8mm
stainless steel 1.5mm
transfer speed 30~100m/min
Maximum speed 160 pcs/min
Detect item size ≤280mm(L)*210mm(W)
Weighing conveyor belt size 400mm(L)*210mm(W)
Machine length 2100mm(L)*560mm(W)*1222mm(H)(customized )
Elimination method Putter, swing arm, air blow, split (optional)
Control System High speed A/D sampling controller
Preset product number 2000pceis
Conveying direction Facing the machine, left to right
External air supply 0.6-1Mpa
Pneumatic interface Φ8mm
working environment temperature: 0~40,humidity:30%~95%
machine material Stainless steel 304 polishing
Operation screen display Chinese, English, Turkish, Spanish, etc. can be customized
Other standard equipment Windshield (colorless and transparent), calibration weight
Belt height from the ground 650mm~750mm(custome)
Protection level Protection level meets IP-65 international standards
Remarks The accuracy of the detection speed meter is slightly different depending on the size of the product being tested and the working environment in which the equipment is operated



Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 3









Company Profile

Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 4Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 5

Why Choose Us

Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 6

Our Advantages

Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 7

Product packaging

Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 8Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 9

Certifications

Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 10

FAQ

Industry High Sensitivity Metal Detector Checkweigher Machine For Food Industry 11

About Shanan.pdf



Product Description:
The D Display Conveyor Weight Checker / Overload Automatic Weight Inspection Machine is a high-precision checkweigher used for on-line weight checking and weighing inspection. It is designed for nuts and dried fruit applications and features an D display and a silver color design. The machine is constructed using high-quality stainless steel and is easy to maintain and operate. It is compliant with GMP and HACCP standards, making it suitable for use in food and pharmaceutical industries.

Quick Details:
- Place of Origin: China
- Brand Name: SHANAN
- Model Number: VC-100
- Certification: CE, ISO
- Product Name: Overload Weight Checker
- Display Type: D Display
- Power Supply: 110v or 220v
- Accuracy: ±5g
- Rated Load: 50KG
- Warranty: 24 Months

Parameters:
- Model Name: VC-100
- Weight range (g): 1kg-100kg
- Mini weight accuracy (g): ±10g
- Mini screen value (g): 1g
- Max weigh speed (Bags/Minute): 20
- Belt speed (Meter/minute): 3-15
- Suitable product length (mm): -
- Suitable product width (mm): -
- Suitable product height (mm): -
- Weigh zone size (mm L*W): 1000*800

Features:
1. High-precision accuracy with high-speed weighting module and weight sensor
2. Simple structure with full stainless steel construction for easy maintenance and compliance with GMP and HACCP standards
3. Convenient operation with Schneider touch screen and multi-language support
4. External connectivity with other equipment in production line
5. Wide application for bag and filling pack weight checking with various rejection ways to select
6. Automatic feedback function to adjust the feeding status of connected equipment

Application:
The D Display Conveyor Weight Checker / Overload Automatic Weight Inspection Machine is suitable for on-line weight checking and weighing inspection of nuts and dried fruits in the food and pharmaceutical industries.
