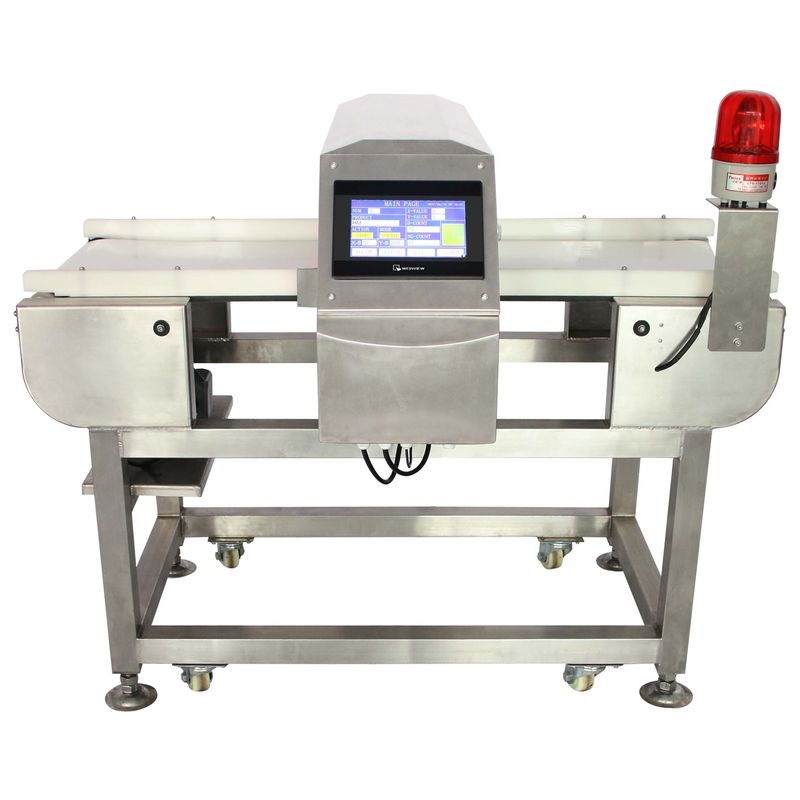

Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ...

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VTF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

non ferrous metal detector

,

metal detectors for food industry

,

IFS standard meat metal detector

Warranty:
12 Months
Usage:
Metal Detector For Food
Alarm:
Buzzer And Lighter
Certification:
CE. ISO
Power:
90W 110V/220V/380V 50Hz/60Hz
Belt Conveyor:
PU
IFS Standard:
Yes
HACCP Standard:
Yes
Warranty:
12 Months
Usage:
Metal Detector For Food
Alarm:
Buzzer And Lighter
Certification:
CE. ISO
Power:
90W 110V/220V/380V 50Hz/60Hz
Belt Conveyor:
PU
IFS Standard:
Yes
HACCP Standard:
Yes
Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ...

Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ...

Product advantages:



Can identify a variety of magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.)even if the metal embedded in the products.

Adopts the double circuit signal detection circuit, high sensitivity and strong anti-disturbance ability.



Has the double circuit signal demonstration function. When the metal good is passing, the signal light will demonstrate different induction according to the size of the metal.



Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.



Can avoid missing detection. When several metal signals are passing, the machine will automatically record the signal amount, so it won’t have missing detection.



Control system: ADLINE microprocessor controller.



Conveyors: Joint-body PU (polyurethane) Conveyor.



Special transport mechanism designed the maximize sensitivity of metal detectors.



Flexible modular design can be customized according to different requirements.



Mirror stainless steel with open transport system. Easy to clean.



Conveyor belt adopts imported white ones safe to food.



Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.











Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ... 0Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ... 1Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ... 2Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food ... 3

Technical parameters:



Model VMF series
Machine specification Normal machine Customized width
(mm)Detection Width 400 400 customized
(mm)Detection Height 100 120 150 200 250 300 350 400
Detection Sensitivity Fe(Φmm) ≥0.6 ≥0.8 ≥1.0 ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0
Non-Fe(Φmm) ≥1.0 ≥1.2 ≥1.5 ≥2.5 ≥3.0 ≥3.5 ≥4.0 ≥4.5
304Sus(Φmm) ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0 ≥3.5 ≥4.0 ≥4.5
Alarm and rejector system Automatic stop by alarm and sound or push rod or falling drop
Machine structure Full structure takes of stainless 304
Machine size (mm) L1520mm×W830mm×H1000mm if customized it will according to customized size
Machine weight Around 250KG if customized the weight will different
Voltage and power 220V 50Hz 90W
Load ability 5-25KG conveyor belt running speed :25-30m/min or customized
Height from the earth 650mm±50mm can customized
Note :Normal size machine have stocks. Unnormal size machine have to customized
