Product Details
Place of Origin: China
Brand Name: SHANAN
Certification: CE, ISO
Model Number: VDF6012
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: polywooden case
Delivery Time: 7 working days after confirm order
Payment Terms: T/T
Supply Ability: 100 set/month
Application: |
Food Industry |
Sensitivity: |
Adjustment Above 0.8mm Ferrous |
Tunnel Size: |
Customize 600*120mm |
Length: |
1330mm-1800mm |
Type: |
Conveyor Belt Type |
Warranty: |
12 Months |
Alarm: |
Automatic Stop Belt |
Reject System: |
Optional |
Certificate: |
CE ISO |
PN: |
5 |
Application: |
Food Industry |
Sensitivity: |
Adjustment Above 0.8mm Ferrous |
Tunnel Size: |
Customize 600*120mm |
Length: |
1330mm-1800mm |
Type: |
Conveyor Belt Type |
Warranty: |
12 Months |
Alarm: |
Automatic Stop Belt |
Reject System: |
Optional |
Certificate: |
CE ISO |
PN: |
5 |

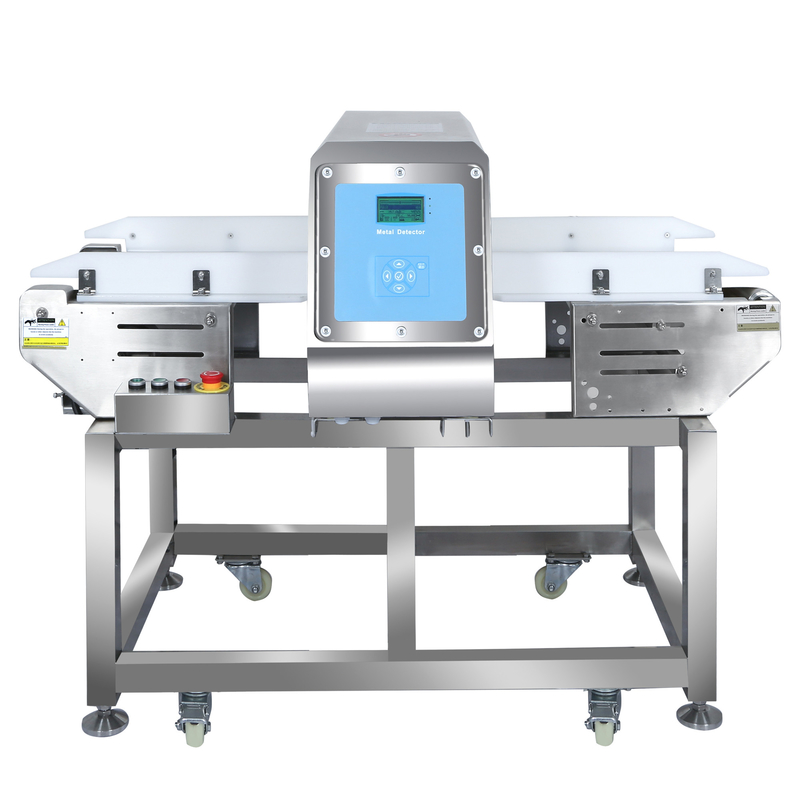

Food grade metal detector / metal detector for refrigerated and frozen food
Product advantages:
Full Stainless steell 304 food grade structure
Digital singla process can records 100 kinds of products
Adjustment speed from 10-35 meter /minute
High sensitivity with 6012 inspection tunnel
Food grade PU conveyor belt conform to American FDA food grade
Application :
Food industry
Medical industry
Food additives
Baby products
Health products
Other industry that need reject and detect metals
Warranty
12month labor and parts
Full life technical support
Detail Specification:
| Model | VCF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 500 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized various | ||||||||
| Height from the earth | 750mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Reject system(optional)
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
