Home > products > Conveyor Weight Checker > High Speed Online Weighing Machine Food Grade Weight Testing Weighing Machine Lipstick Bottle Weight Testing Machine

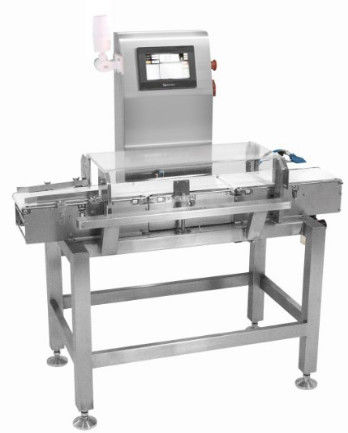

High Speed Online Weighing Machine Food Grade Weight Testing Weighing Machine Lipstick Bottle Weight Testing Machine

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: SACW-210

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

needle inspection machine

,

broken needle detector

Accuracy:
0.1kg
Communication Interface:
RS232/485
Control Mode:
Automatic
Control System:
PLC
Display:
LED
Humidity:
≤90%
Material:
Stainless Steel
Power Supply:
220V/50Hz
Product Name:
Conveyor Weight Checker
Protection Level:
IP65
Speed:
0-50m/min
Storage Temperature:
-20℃~60℃
Weight Range:
0-500kg
Weighting Unit:
Kg/lb
Working Temperature:
-10℃~50℃
Accuracy:
0.1kg
Communication Interface:
RS232/485
Control Mode:
Automatic
Control System:
PLC
Display:
LED
Humidity:
≤90%
Material:
Stainless Steel
Power Supply:
220V/50Hz
Product Name:
Conveyor Weight Checker
Protection Level:
IP65
Speed:
0-50m/min
Storage Temperature:
-20℃~60℃
Weight Range:
0-500kg
Weighting Unit:
Kg/lb
Working Temperature:
-10℃~50℃
High Speed Online Weighing Machine Food Grade Weight Testing Weighing Machine Lipstick Bottle Weight Testing Machine

High Speed Online Weighing Machine Food Grade Weight Testing Weighing Machine Lipstick Bottle Weight Testing Machine 0
Automatic checkweigher, fish sorting machine, belt conveyor weigher scale
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Function and structure characteristics of check weigher
1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
Scope of application of check weigher
Use in detecting the single product weight and setting target value which is accordingly or not. And the
sorting device will eliminate the unstandard product.
Features:
Solid SUS304 stainless steel structure enable for good performance
Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light .air blast. or pneumatic push rod
emergency stop button for safety working condition
Core Applications
 Biscuits and Bakery
 Cereal and Health Foods
 Confectionery
 Cheese
 Fresh Produce
 Granulated Products
 IQF/Frozen
 Meat and Fish
 Nuts and Dried Fruit
 Pasta and Pulses
 Ready Meals
 Snack Food
 Tea and Coffee
 Bag in Bag
Standard Features
Control Panel Exterior is Stainless Steel and Painted
Conveyor is Non-waterproof
Balance is Force Balance
Frame is Stainless Steel and Painted
Color LCD Touch Screen
Optional Features
Tower Light (with buzzer alarm)
Data Printer
Emergency Stop Switch
Line Height Change
Plate for Anchor
Remote Indicator
Cross Plate
Product Guide
Wind Shield (full cover)
rge tunnel food bags check weigher
²Screen : 8inche full touch screen
² Weight range : Max 1000g
² Max speed : 60-120pieces /minute (can adjust )
² Max accuracy: ±0.5g
² Screen resolution : 0.01g
² Rejection: deflector rod
² Running direction :Face operate panel from left to right
² Belt height from earth : 750±50MM(can customized )
² Products recipe storage : can stooge 100kinds
² Power supply : customized 110---220V±20% 50HZ
² Machine structure :Full stainless steel 304
² Full machine weight :approx 100kg

Parts NameSpecification /BrandUnitUse amount
Control systemcontrol system ,8 inch industrial touch screenpcs1
Weight sensorGermany HBMPcs1
Driving systemDeltaPcs1
InverterDeltaPcs1
photoelectric switchTaiwan RikoPcs1
Motor SwitchCHNTPcs1
Conveyor beltWhite ShabakerPcs1
Main conveyor belt rollerNSK Bearing ,Pcs1
Accessory conveyer belt

NSK BearingPcs1


Wind Shield (top)


 VC-10VC-15VC-22VC-30VC-40VC-25(Two belt)VC-100
Model Name
Weight range (g)3-1003-30010-120030-300050-100050g-25kg1kg-100kg
Mini weight accuracy (g)±0.1±0.3±0.5±1±0.5±5g±10g
Mini screen value (g)0.010.10.10.10.10.51g
Max weigh speed (Bags /Minute )203302101801805020
Belt speed016-11813-9613-9613-9613-783-15
(Meter/minute )
Suitable product length (mm)-60-180mm60-300mm60-420mm60-500mm60-420mm-
Suitable product width (mm)-30-150mm30-200mm30-250mm30-400mm30-380mm-
Suitable product height (mm)-10-130mm10-200mm10-330mm10-330mm10-430mm-
Weigh zone size (mm L*W)-270*110400*220500*300500*400800*6001000*800
NoteNon-standard (without belt)High accuracySmall common modelCustomized modelCustomized modelCommon model for BoxRoller end belt
Reject device optionalPin Rod /Push rod /air blast /divided flow /drop down /flap drop (Optional )
Optional
