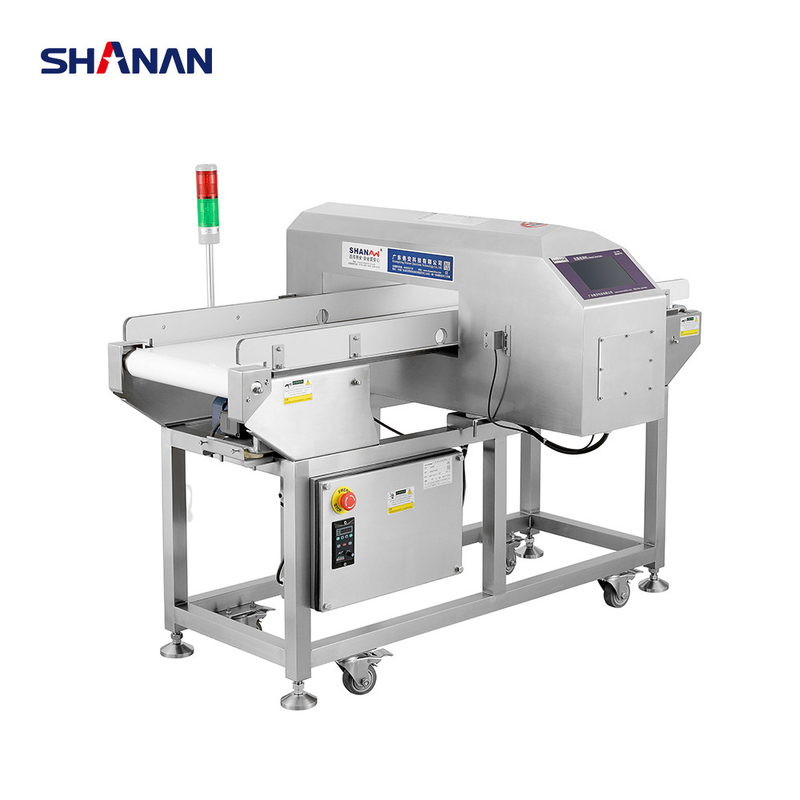

Conveyor Belt Food Metal Detector Machine Factory

Name: Conveyor Belt Food Metal Detector Machine Factory
Brand: GUANGDONG SHANAN TECHNOLOGY CO.,LTD
SKU: MD-300
Price: 2,500.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: MD-300

Document: About Shanan.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Factory Food Metal Detector, Conveyor Belt Food Metal Detector, Conveyor Belt Metal Detector


Alarm Mode:	Sound And Light	Detection Range:	0.1-2mm
Frequency:	50Hz	Humidity:	≤95%
Material:	Stainless Steel	Name:	Food Metal Detector
Power:	220V	Power Consumption:	100W
Sensitivity:	High	Size:	Medium
Type:	Metal Detector	Warranty:	1 Year
Weight:	3kg	Working Temperature:	0-50℃

Alarm Mode:	Sound And Light
Detection Range:	0.1-2mm
Frequency:	50Hz
Humidity:	≤95%
Material:	Stainless Steel
Name:	Food Metal Detector
Power:	220V
Power Consumption:	100W
Sensitivity:	High
Size:	Medium
Type:	Metal Detector
Warranty:	1 Year
Weight:	3kg
Working Temperature:	0-50℃

Conveyor Belt Food Metal Detector Machine Factory

Product Overview

The Bakery Industry Food Grade Metal Detector is a precision food processing equipment designed for packaging operations. This advanced metal detection system identifies and removes metal contaminants from food products during production, ensuring product safety and quality compliance.

Key Specifications

Model Number	VDF-6010
Place of Origin	China
Brand Name	SHANAN
Certifications	CE, ISO
Warranty	2 years
Detection Sensitivity	Fe≥0.8mm, Non-Fe≥1.2mm, Sus≥2.0mm
Load Capacity	35 Kgs
Belt Speed	35-45 M/Min
Construction Material	304 SUS / 316 SUS
Belt Material	PVC, PU

Technical Parameters

Detection Width	600mm (customizable up to 1000mm)
Detection Height Options	80mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity	Fe(Φmm): ≥0.8, Non-Fe(Φmm): ≥1.0, 304Sus(Φmm): ≥1.5
Alarm & Rejection System	Automatic stop with alarm, sound alert, push rod, or falling drop mechanism
Machine Structure	Full stainless steel 304 construction
Machine Dimensions	L1600mm * W800mm * H950mm (customizable)
Machine Weight	Approximately 230KG (customizable)
Power Requirements	220V 50Hz 90W (customizable)

Advanced Features

High sensitivity detection for ferrous and non-ferrous metals including stainless steel, copper, and aluminum
Wide range of customizable belt widths and lengths to fit any production line configuration
Dual rejecter system for precise separation of foreign objects and weight verification
Integrated Sentinel metal detector interface with Versa touchscreen for simplified setup and operation
Premium 304 SUS / 316 SUS construction for durability and food safety compliance
High-quality PVC or PU conveyor belt options
Automatic shutdown with multiple alert and rejection mechanisms

Industry Applications

This food grade metal detector is essential for food packaging operations across multiple sectors. It provides reliable metal contamination detection for bakery products, meat and sausage processing, fruits and vegetables, dairy products, spices, sugar, and virtually any food product requiring quality assurance.

Frequently Asked Questions

What is the warranty period for this metal detector?

The product comes with a comprehensive 2-year warranty.

What is the detection sensitivity of this equipment?

The metal detector offers high sensitivity with Fe≥0.8mm, Non-Fe≥1.2mm, and Sus≥2.0mm detection capabilities.

What materials are used in construction?

The unit is constructed from high-quality 304 SUS / 316 SUS stainless steel with PVC or PU conveyor belt options.

What is the maximum load capacity?

The system can handle loads up to 35 Kgs.

What are the power requirements?

Standard configuration requires 220V 50Hz 90W power supply, with customizable options available.
