Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel

Product Details

Place of Origin: CHINA

Brand Name: SHANAN

Certification: CE, ISO

Model Number: VCM-2

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Box

Delivery Time: 15work days

Payment Terms: T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:

dynamic checkweigher

,

checkweigher machine

Voltage:
110V-220V, 60 HZ
Conveyor Belt Running Speed:
10-80 Meter Adjustable
Detecting Range:
1kg ~ 25kg
Gross Weight:
280 Kg
Accuracy:
± 1 G
Net Weight:
270 Kg
Language:
English, Chinese, Spanish , Italian And Other Language ( All Of Language Can Be Customized)
Voltage:
110V-220V, 60 HZ
Conveyor Belt Running Speed:
10-80 Meter Adjustable
Detecting Range:
1kg ~ 25kg
Gross Weight:
280 Kg
Accuracy:
± 1 G
Net Weight:
270 Kg
Language:
English, Chinese, Spanish , Italian And Other Language ( All Of Language Can Be Customized)

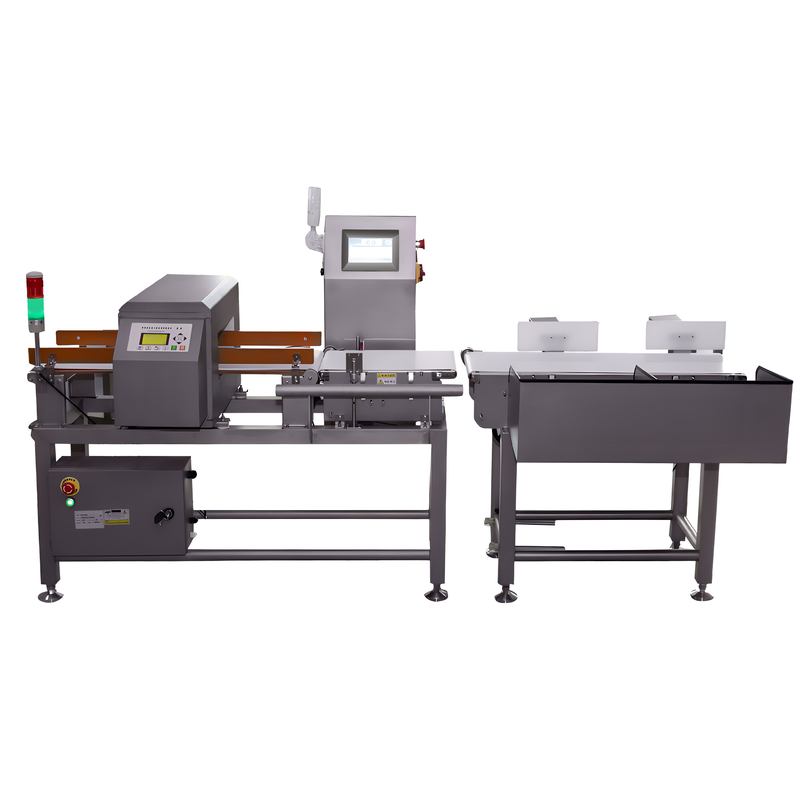

Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel

 Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 0
Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 1

Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 2Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 3Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 4Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 5Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 6

Combo Metal detector and Check weigher Machine , Weighing machine



Widely used in package workshop with compact space.



Checkweigher VCM Series

  • 1. Compact design, saving space and installation cost
  • 2. Metal detector and checkweigher is perfectly connected in one frame, to achieve lowest requirements of the production line and install the machine in workshop conveniently and effectively






Specifications

Model VCM-2
Detecting Range 1kg- 25kg
Scale Interval 0.1g
Accuracy(??) ±1g
Detecting Speed(Max speed) 155pcs/min
Maximum Belt Speed 80m/min
The Weighed Product Size Width 220mm
Length 350mm
Height 70mm 110mm 140mm 170mm
Weigher Platform Size Width 230mm
Length 450mm
Height 80mm 120mm 150mm 180mm
Sensitivity Fe ?0.5mm ?0.7mm ?0.7mm ?0.7mm
SUS ?1.2mm ?1.5mm ?1.5mm ?2.0mm
Product Storage Quantity 100 kinds
Segments Number of Sorting 2 or 3
Rejecter Rejecter Optional
Power Supply AC220V (Optional)
Degree of Protection IP30/IP54/IP66
Body Material Stainless Steel (SUS304)

Note

  • 1. The technical parameter above namely is the result of accuracy by checking only the test sample on the belt. The accuracy would be affected according to the detecting speed and product weight.
  • 2. The detecting speed above will be affected according to the product size to be checked.
  • 3. Requirements for different sizes by customers can be fulfilled.

Brochure

Note

  1. 1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.
  2. 2. Requirements for different sizes by customers can be fulfilled.
Combo Metal Detector And Automatic Check Weighing Machines In Stainless Steel 7
FAQ


1. Are you manufacturer or trader?
We are manufacturer, we have own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing , and transportation, believe our team is best team in china.
2. Do you sell the accessories for Products ?
Yes. We have Match the parts for our testing equipment. If our machines damages by fire, water flood, earthquakes, unsteady of power and other natural disasters, we are willing supply match parts with lowest price for you.
3.How about the packing for product? Is it easy damaged during transportation?
For heavy structure products like conveyor belt needle detector. Food metal detector X ray machine .Our packing is Standard Export ploy Wooden Case.
Every prepackage have a plastic bags cover .
4.How about your after-sales policy?
Customer first is our always principle . All of our products normal warranty is 12months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service .
5.Do you accept customer Logo and customized ?
we accept kinds of customized and logo of all of our products for customers
