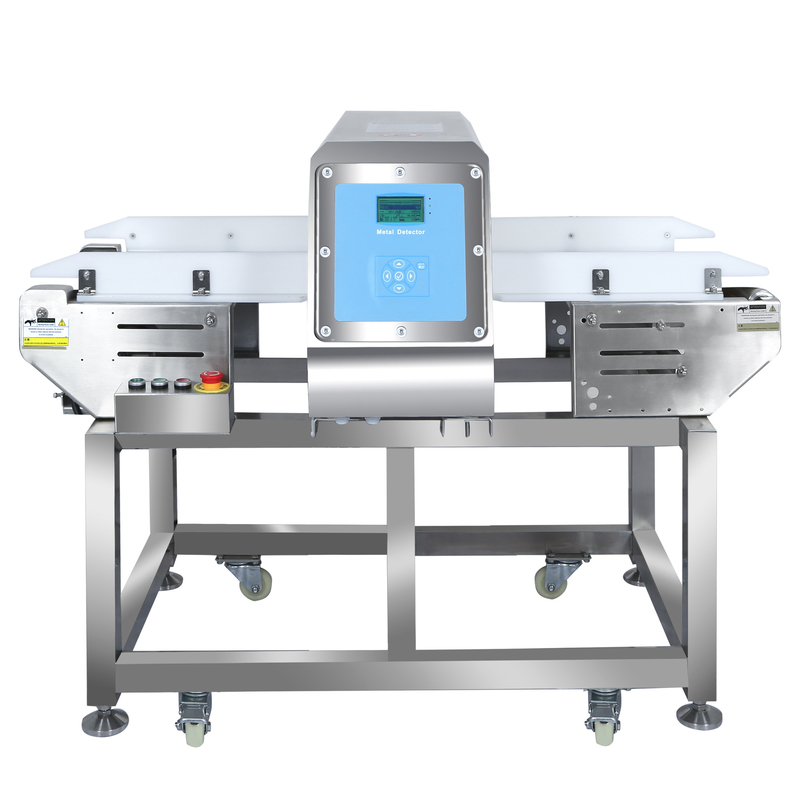

Food Metal Detector With Data Display And Database Management

Food Metal Detector With Data Display And Database Management
Food Metal Detector With Data Display And Database Management Food Metal Detector With Data Display And Database Management Food Metal Detector With Data Display And Database Management Food Metal Detector With Data Display And Database Management

Large Image :  Food Metal Detector With Data Display And Database Management

Product Details:
Place of Origin: CHINA
Brand Name: SHANAN
Certification: CE, ISO
Model Number: SAMD-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Box
Delivery Time: 15work days
Payment Terms: T/T
Supply Ability: 100 set/month
Detailed Product Description
Application: Food Industry Detection Accuracy: High Accuracy
Detection Depth: Deep Detection Detection Range: Wide Range
Detection Speed: High Speed Frequency: 50/60Hz
Material: Stainless Steel Name: Food Metal Detector
Power Supply: AC/DC Sensitivity: High Sensitivity
Size: Compact Size Type: Metal Detector
Voltage: 110V-220V Weight: Light Weight

Food Metal Detector With Data Display And Database Management 0Food Metal Detector With Data Display And Database Management 1Food Metal Detector With Data Display And Database Management 2

Product features and advantages:
1: Easy to make a good operation interface, using a conversational touch screen display, quick and easy to set the reference through a simple key interface: can detect a variety of products containing different product signals (characteristics), one set can guarantee Extremely high detection level, no need to readjust, set the program.
2: Using the new touch screen input and large-scale thermal circuit, the CPU completes the analog signal collection and replaces it with digital processing, output, and automatically collects the best point of the detected metal content, greatly improving the sensitivity of the detection and Reliability, sensitivity, belt delay, metal rejection time, transmit power, and wide time can be directly input and adjusted.
3: Work data display function, display parameter setting and working data; large peak digital display of peak-to-peak voltage at the receiving end, which is convenient for balance adjustment of gold detector.
4: It can be produced by multiple frequencies according to product characteristics, and has product detection data storage function, which can store more than 100 kinds of product inspection data, and has wide application range.
5: Metal detection record database management function; metal detector parameter setting and viewing, download its detection history record can be exported through U disk.
6: User permission settings: factory setting permissions, engineer usage rights, operator usage rights.
7: The metal detector conveying speed can directly modify the transmission speed of the inverter directly in the operation solution interface, and the speed adjustment is convenient and quick.
8: The metal detector software screen is equipped with a display interface, and the device malfunctions through the screen for visual display, and the maintenance is convenient.
9: With product quantity statistics function, bad product quantity statistics function, clock perpetual calendar function; operation log can be traced.
10: Shockproof and waterproof design, dustproof and waterproof function conforms to IP-67 international certification, anti-vibration and noise absorption, can adapt to harsh working environment
11: Maximum brand protection, support compliance with GFS1 standards and FSMA regulations, reduce false rejection and reduce product waste, improve production efficiency.
Scope of application: food, medicine, chemical, rubber and plastics, aquatic products, toys, clothing, electricity, leather, knitting, printing and other industries to detect the metal impurities mixed in the production process of raw materials, such as: iron, non-magnetic Metal objects (gold, eye, system, data, stainless steel and other non-ferrous metals can be detected), improve product safety factor and reduce hazards.

High Sensitive Metal Detector with Automatic Conveyor Belt

Parameter:

Item SAMD-500
Passing width (MM) 500~1200(can customize)
Passing height (MM) 200~1000(can customize)

standard

Detection

Sensitivity

FE(ΦMM) ≥0.5
NON-FE(ΦMM) ≥0.8
SUS304(ΦMM) ≥1.0
Protection level IP67
Number of memory products 100 kinds
Display method LED Screen
Operation method Touch button input
Alarm mode Alarm stop, buzzer alarm or reject mechanism optional
Machine material Carbon steel paint or stainless steel 304,fit for HACCP.GMP.CAS
Machine weight ≥120KG
power supply AC200V±10% 50-60HZ(Customize AC110V or AC380V)
Using environment temperature:-180~50,Relative humidity:30~90
Remarks :01 probe detection window, the size of the whole machine can be customized according to customer needs. The higher the height of the detection window, lower the detection sensitivity, wider the detection window, the lower the detection sensitivity.

02 Detection sensitivity is the detection sensitivity obtained by placing the test card in the center of the conveyor belt through the detection channel. The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
